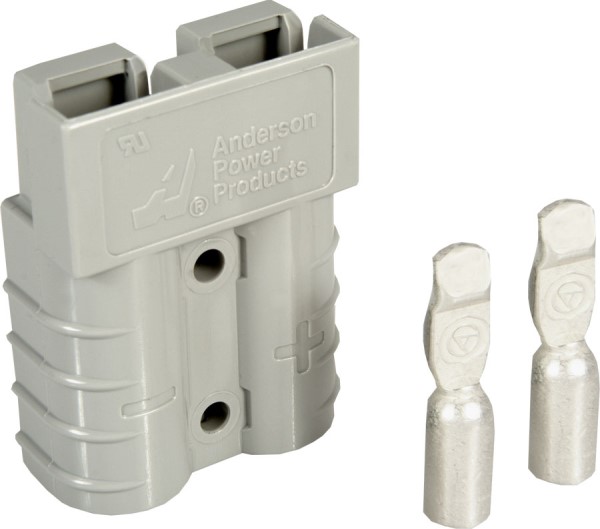

Anderson Power Products 6319 SB Connector
The Anderson SB 50 connectors provide reliable, cost-effective power distribution solutions for industrial applications, battery connections, and DC systems. Featuring a one-piece plastic housing with stainless steel springs, they support wire sizes from #16 to #6, enabling connections up to 120 amps. These connectors are UL rated for hot plugging up to 50 amps, making them suitable for battery or circuit interruption needs. They are available in standard and chemical resistant housings, with optional accessories like handles, dust covers, environmental boots, and guide housings for enhanced safety, durability, and ease of use in demanding environments.
Anderson Power Products 6319 SB Connector Specifications:
- Current Rating: Up to 120 amps
- Voltage Rating: 600 V AC/DC
- Wire Size Range: #16 (1.3 mm) to #6 (13.3 mm)
- Max Wire Insulation Diameter: 0.440 inches (11.2 mm)
- Operating Temperature: -40°C to +105°C (-40°F to +221°F)
- Mating Cycles: 10,000 for wire contacts, 1,500 for PCB contacts
- Contact Material: Copper alloy with silver or tin plating
- Dielectric Withstanding Voltage: 2,200 V AC
- Housing Materials: Standard plastic resin, chemical resistant PBT/PC blend for certain housings
- Dimensions: Length varies with accessory and configuration, typical contact barrel diameter 0.09-0.22 inches (2.3-5.6 mm)
- Mechanical: Spring-loaded stainless steel contacts, self-tapping or bolt-on cable clamps
- Environmental Protection: IP64 when mated with boots, dustproof and waterproof
- Additional features: Male/female, genderless design, color-coded housings for easy identification
Buy the Anderson Series SB Connectors: 120 Amp Power Distribution
Enhance your electrical setup with Anderson SB 50 connectors, supporting up to 120 amps with UL rated hot plugging up to 50 amps. These versatile connectors feature durable housings, corrosion-resistant copper contacts, and a reliable locking system. Perfect for battery connections, power distribution, and DC circuits, they are suitable for harsh environments thanks to chemical-resistant options and IP64 protection. Accessories like handles, dust covers, and guide housings make installation and maintenance easier. Order online today for dependable, high-quality electrical connections designed to meet demanding industrial needs.
Get Anderson SB 50 connectors today—built for reliable power, safety, and long-lasting durability in industrial and battery applications.
Frequently Asked Questions
Where can I buy Anderson Power Products 6319?
You can click on the BUY or RFQ button to purchase 6319 from an authorized Anderson Power Products distributor.
How do I troubleshoot issues or seek technical support for part 6319?
You can download the 6319 datasheet or visit the Anderson Power Products website for support.
Who is the manufacturer of 6319?
Anderson Power Products
