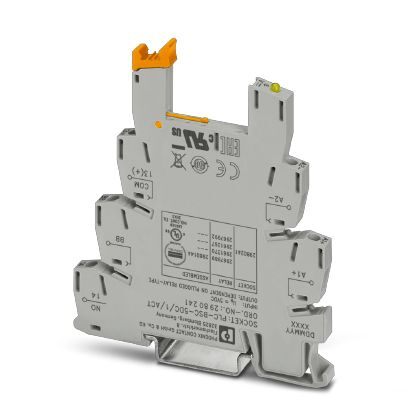

Phoenix Contact 2980241 PLC Relay Base Socket
The PHOENIX CONTACT PLC-BSC- 5DC/ 1/ACT relay base socket provides a reliable platform for integrating relays into PLC systems. Designed with a compact 6.2mm footprint, it's suitable for space-constrained applications and DIN rail mounting on NS 35/7.5 rails. The socket features a 5V DC input voltage and an LED status display for clear indication of relay operation. Screw connections ensure secure and durable wiring, accommodating a range of conductor sizes. This component is commonly used in industrial automation, control systems, and machine building for controlling various output functions and processes.
Phoenix Contact 2980241 PLC Relay Base Socket Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- GTIN: 4017918876722
- Weight per Piece (excluding packing): 34.000 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Nominal input voltage UN: 5 V DC
- Status display: LED
- Protective circuit: Damping diode, polarity protection diode
- Color: gray
- Operating mode: 100% operating factor
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Connection name (Input side): Input side
- Connection method (Input side): Screw connection
- Stripping length (Input side): 8 mm
- Screw thread (Input side): M3
- Conductor cross section solid (Input side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (Input side): 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule)
- Conductor cross section AWG (Input side): 26 ... 14
- Connection name (Output side): Output side
- Connection method (Output side): Screw connection
- Stripping length (Output side): 8 mm
- Screw thread (Output side): M3
- Conductor cross section solid (Output side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (Output side): 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule)
- Conductor cross section AWG (Output side): 26 ... 14
- Connection in acc. with standard: CUL
- China RoHS: Environmentally Friendly Use Period = 50
