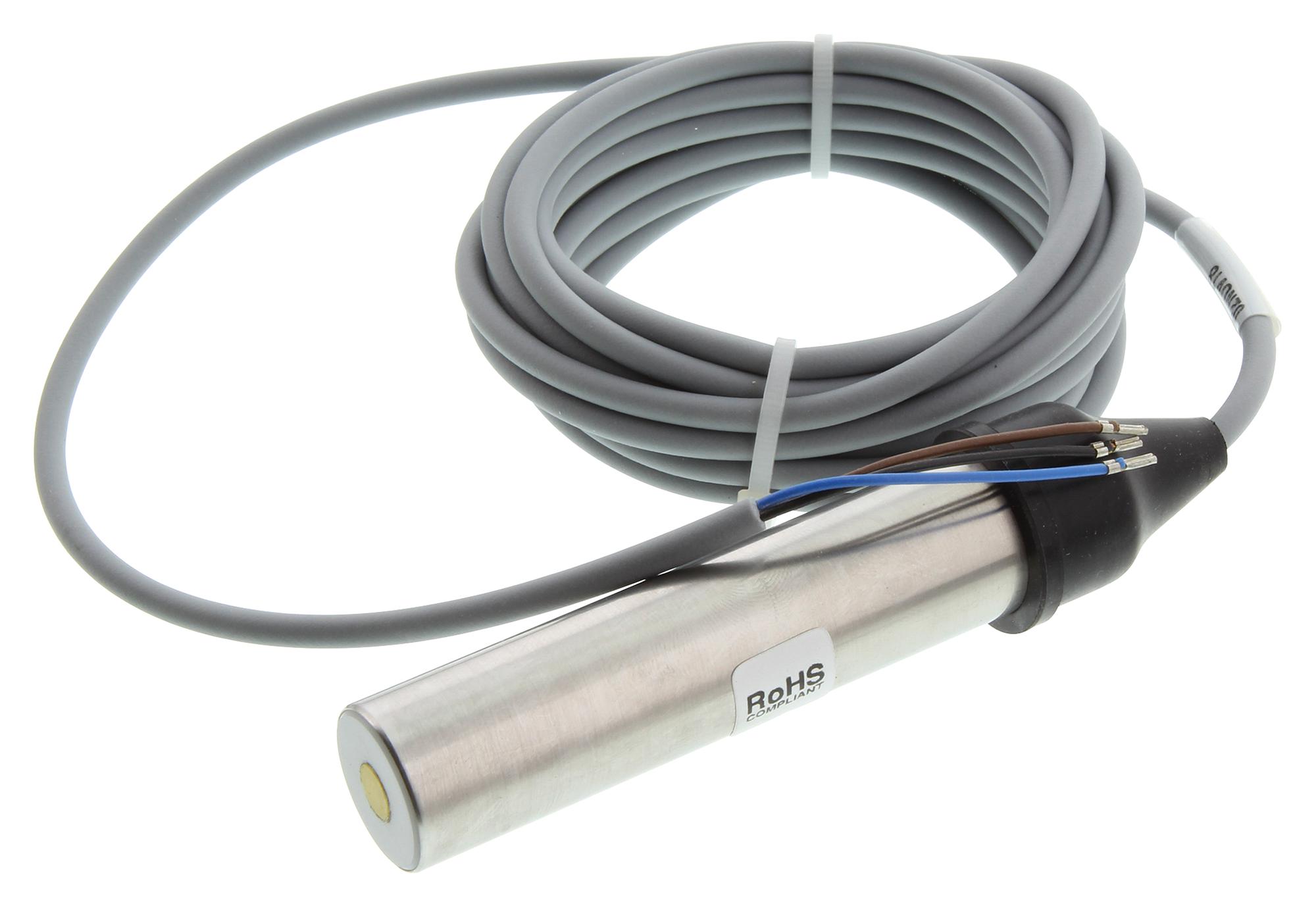

Red Lion Controls PSAC0000 Inductive Proximity Sensor
The PSAC0000 is an NPN open-collector sensor compatible with most Red Lion Controls' motion monitors, counters, and controls. It features a maximum sensing distance of 0.059 inches (1.5mm) and can detect ferrous and non-ferrous metal targets from zero speed up to 5 kHz pulse rate. The sensor has a 0.25-inch diameter pole piece that is epoxy-encapsulated in a stainless steel case measuring 0.75 inches in diameter and 3.5 inches in length. It is supplied with a 10-foot, three-wire cable. Suitable for sensing small metal targets such as gear teeth with a 12 D.P., this sensor is ideal for tachometers, counters, and control applications in industrial settings.
Red Lion Controls PSAC0000 Inductive Proximity Sensor Specifications:
- Supply Voltage: +10 - 30 VDC @ 20 mA max.
- Maximum switching frequency: 5 KHz
- Output: NPN Open Collector Transistor, Vo, = 1 V max @ 150 mA, Vou = 30 VDC max.
- Maximum sensing distance: 0.059 inches (1.5 mm)
- Output cable: 10, 25, or 50 ft. PUR jacketed 3-wire, 24 AWG
- Wire color code: Brown = +VDC, Blue = Common, Black = NPN O.C. Output
- Operating temperature: -25°C to +70°C (-13°F to +158°F)
- Construction: Epoxy-encapsulated in 0.750 inches stainless steel case, with 0.25-inch pole piece
- Dimensions: Diameter 0.75 inches, Length 3.5 inches; overall 0.90 inches diameter, 4.5 inches length including strain relief
- Target sensing: Ferrous and non-ferrous metals, targets as small as 12 D.P. gear teeth
- Ideal for tachometers, counters, control inputs; can operate at zero speed
Buy the Red Lion PSAC – Reliable Metal Inductive Sensor for Industrial Applications
Order the Red Lion PSAC inductive proximity sensor today and enhance your industrial automation with precision metal detection. Its robust stainless steel case and epoxy-encapsulated pole piece ensure durability and consistent performance. This sensor's ability to sense ferrous and non-ferrous metals up to 0.059 inches makes it ideal for high-speed counting, tachometers, and control applications. With various cable lengths available, you can easily install this reliable, compact sensor to meet your specific sensing distance needs and operational environment requirements, ensuring seamless integration into your machinery.
Buy Red Lion PSAC inductive proximity sensor now and improve your metal sensing and automation processes with proven industry reliability.
Frequently Asked Questions
Where can I buy Red Lion Controls PSAC0000?
You can click on the BUY or RFQ button to purchase PSAC0000 from an authorized Red Lion Controls distributor.
How do I troubleshoot issues or seek technical support for part PSAC0000?
You can download the PSAC0000 datasheet or visit the Red Lion Controls website for support.
Who is the manufacturer of PSAC0000?
Red Lion Controls
