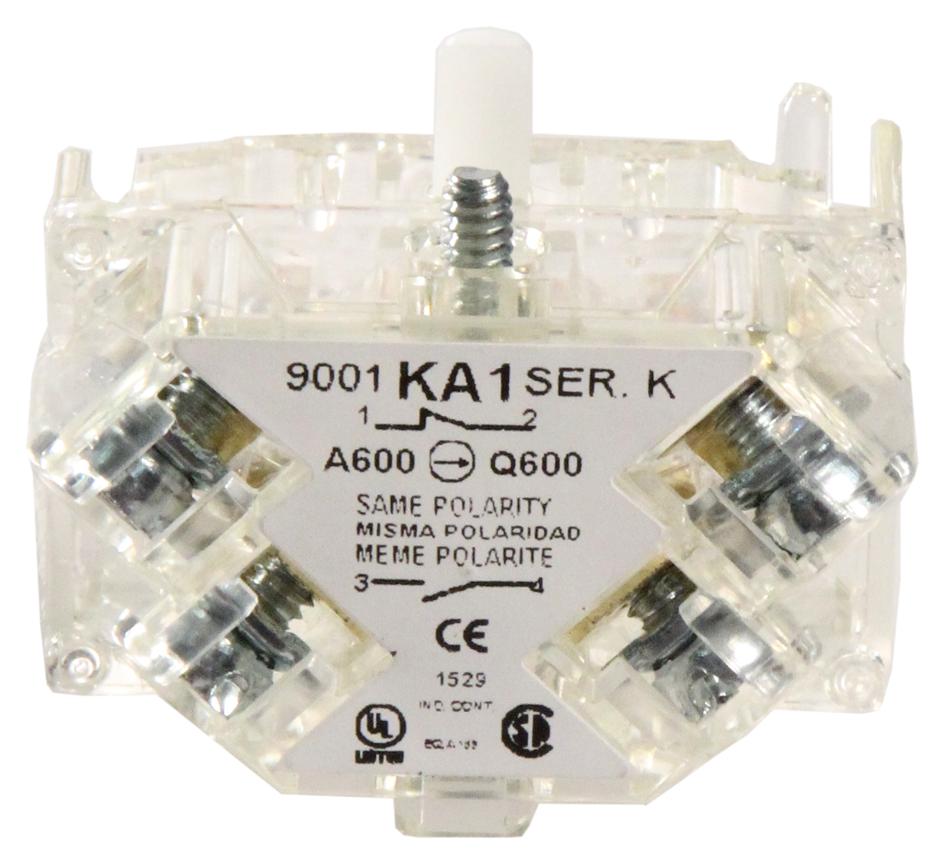

Schneider Electric 9001KA1 Contact block
The 9001KA1 is a durable 30mm contact block with both N/O and N/C contacts, protected screw clamp terminals, and silver alloy contacts for reliable switching. Its impact-resistant plastic body ensures durability in industrial environments. Designed for easy installation, it fits into a 30mm mounting hole and features clear wiring labels for straightforward setup. Operating effectively between -25°C and 70°C, it is vibration-resistant and suitable for industrial automation and control systems. The device’s modular design allows stacking of multiple contact blocks for customized configuration, ideal for machinery and control panels.
Schneider Electric 9001KA1 Contact block Specifications:
- Mounting Hole Diameter: 30 mm
- Contact Types: N/O and N/C
- Terminal Type: Protected Screw Clamp
- Contact Material: Silver alloy
- Body Material: Impact and corrosion-resistant plastic
- Operating Temperature Range: -25°C to 70°C
- Connection Terminals: Cross-slotted head screws
- Impact Resistance: Meets industrial standards
- Vibration Resistance: IEC 60068-2-6, 7 gn 2...500 Hz
- Shock Resistance: IEC 60068-2-27, 50 gn
- Maximum Wiring: 2 x 0.22 ... 2 x 2.5 mm²
- Rated Insulation Voltage: 250 V IEC 60947-1
- Rated Operational Current: 3 A AC-15, 0.55 A DC-13
- Short-circuit Capacity: 12 KA at 600 V AC
Buy the Buy Schneider 9001KA1 Contact Block Part Number 9001KA1 Online
Purchase the Schneider 9001KA1 contact block online and enhance your automation projects with its reliable N/O and N/C contacts, protected screw clamp terminals, and durable impact-resistant plastic body. Suitable for a wide temperature range from -25°C to 70°C, it offers easy installation with clear wiring labels and a modular design that allows stacking of multiple contact blocks up to six units. Ideal for industrial control panels, machinery, and automation systems requiring dependable switching, this contact block ensures durability, precise operation, and compliance with international standards.
Order your Schneider Series9001KA1 contact block today and ensure reliable switching for your industrial control systems.
Frequently Asked Questions
Where can I buy Schneider Electric 9001KA1?
You can click on the BUY or RFQ button to purchase 9001KA1 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part 9001KA1?
You can download the 9001KA1 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of 9001KA1?
Schneider Electric
