Schneider Electric GV2ME14 Datasheet & Stock

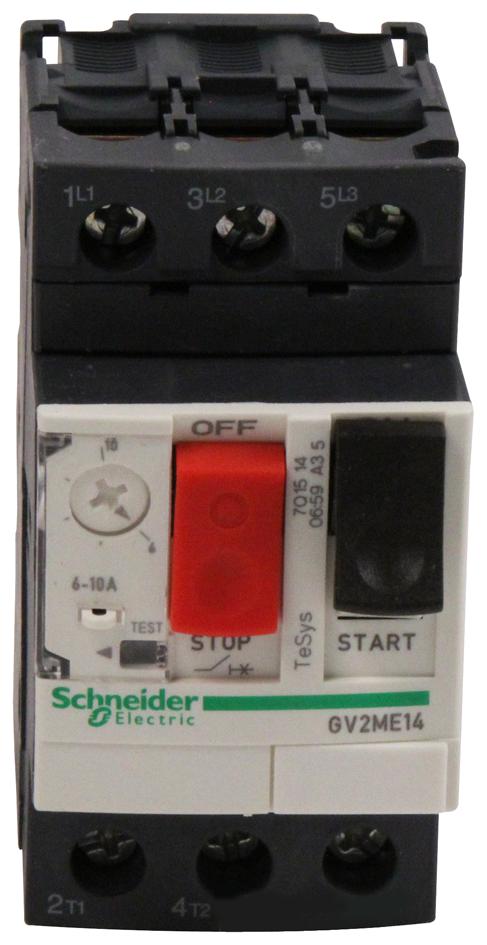

The GV2ME14 is an enclosed motor circuit breaker featuring thermal-magnetic trip unit technology. It is designed for DIN rail mounting with both vertical and horizontal installation options. The breaker includes an under-voltage trip for automatic shutdown in case of voltage loss and a shunt trip for remote control activation. Its control can be secured in the 'N/C' (Normally Closed) position with three padlocks for safety. The device complies with IEC 60529 standards, offering IK04 and IP20 protection ratings. It is equipped with screw clamp terminals, a breaking capacity of 15kA at 440VAC (50/60Hz), and an adjustable thermal protection range of 6 to 10A. The magnetic tripping current is 138A, with a power dissipation of 2.5W per pole. The breaker is operated via pushbutton control, suitable for an operating rate of 25 cycles per hour, and functions effectively within an ambient temperature range of -20°C to 60°C. Ideal for industrial applications, motor drive and control, and safety systems.
