Schneider Electric LC1D80F7 Datasheet & Stock

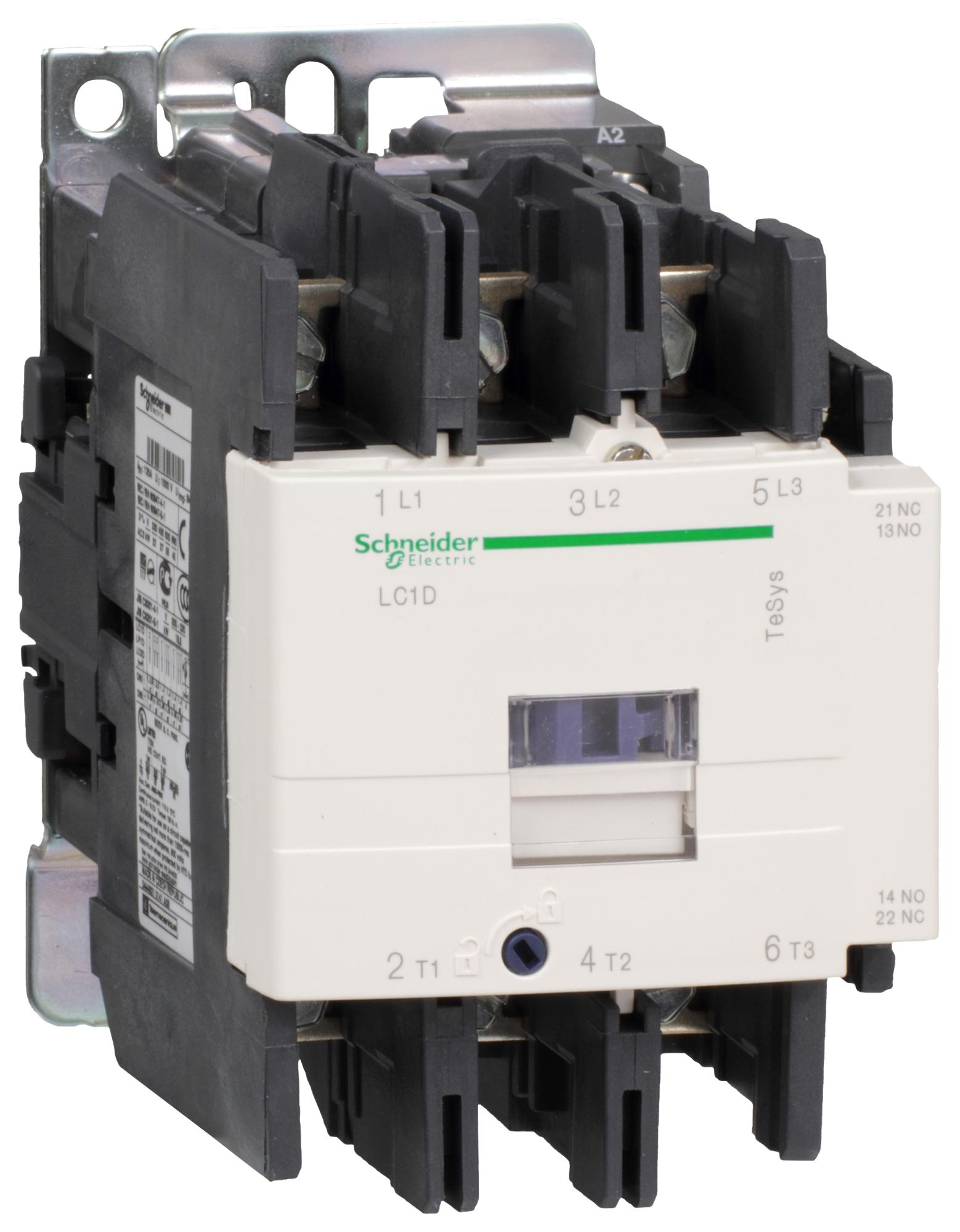

The LC1D80F7 is a TeSys D three-pole contactor equipped with three normally open (NO) power contacts and one normally open (NO) and one normally closed (NC) auxiliary contacts. Designed for seamless integration into control systems, this contactor is suitable for creating motor starters for various applications. It features an AC-1 and AC-3 utilization category, with a rated operational voltage of up to 690VAC at 25Hz to 400Hz and 300VDC for power circuits. The rated operational current is 125A at or below 440VAC (AC-1) and 80A at or below 440VAC (AC-3). The device can handle motor power up to 45kW at 415VAC to 440VAC, 50Hz/60Hz. Its control circuit operates at 110VAC, 50Hz/60Hz, with a flammability rating of UL94V-1. The contactor operates within an ambient temperature range of -5°C to 60°C, features an IP2X front face protection rating, and dissipates 12.5W (AC-1) and 5.1W (AC-3) per pole. It has a rated breaking capacity of 1100A at 440V, conforming to IEC 60947 standards. Ideal for automation, process control, motor drive, and industrial applications.
