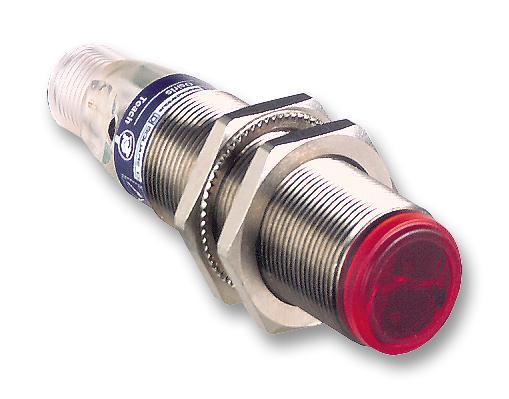

Schneider Electric XUB5BPANM12 Diffuse Photo-electric Sensor
The photo-electric sensor XUB from the OsiSense XU series is designed for diffuse detection with an M12 cylindrical metal housing. It has a sensing distance of 0.6 meters, extendable up to 0.8 meters. Powered by 12-24V DC, it features a PNP discrete output, infrared diffuse emission, and an axial sight line. The sensor is IP65/IP67/IP69K rated, suitable for harsh environments, and includes a status LED indicator. Compact, robust, and certified for safety, it is ideal for industrial automation applications requiring reliable object detection.
Schneider Electric XUB5BPANM12 Diffuse Photo-electric Sensor Specifications:
- Sensing Distance: 0.6 m diffuse, maximum 0.8 m
- Supply Voltage: 12-24 V DC, limits 10-36 V DC
- Output Type: PNP discrete, 1NO
- Cable: M12, 4-pin connector
- Material: Nickel plated brass body, PMMA lens
- Environmental Rating: IP65/IP67/IP69K with double insulation
- Operating Temperature: -25°C to +55°C, storage -40°C to +70°C
- Vibration Resistance: 7 gn, IEC 60068-2-6
- Shock Resistance: 30 gn, IEC 60068-2-27
- Dimensions: Diameter 18 mm, Length 78 mm
- Weight: 0.055 kg
- Certification: CE, UL, CSA
- Switching Frequency: <= 500 Hz
- Protection: Reverse polarity protection, overload, short-circuit
- Additional Features: Status LED, sensitivity adjustment
Buy the Schneider Electric Series XU Diffuse Photo-electric Sensor: XUB5BPANM12
Order the Schneider Electric diffuse photo-electric sensor XUB5BPANM12 online today for reliable object detection in manufacturing and automation settings. With a sensing distance of 0.6 meters, PNP discrete output, and IP69K rating, this sensor is designed for harsh industrial environments. Its robust nickel-plated brass housing ensures durability, while the M12 connector offers easy wiring. Ideal for applications requiring high precision, quick response times, and certified safety standards. Purchase now for efficient automation solutions with guaranteed quality and performance.
Get Schneider Electric XUB5BPANM12 today—built for precise detection and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy Schneider Electric XUB5BPANM12?
You can click on the BUY or RFQ button to purchase XUB5BPANM12 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part XUB5BPANM12?
You can download the XUB5BPANM12 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of XUB5BPANM12?
Schneider Electric
