Schneider Electric XVBC35 Industrial Signal Beacon

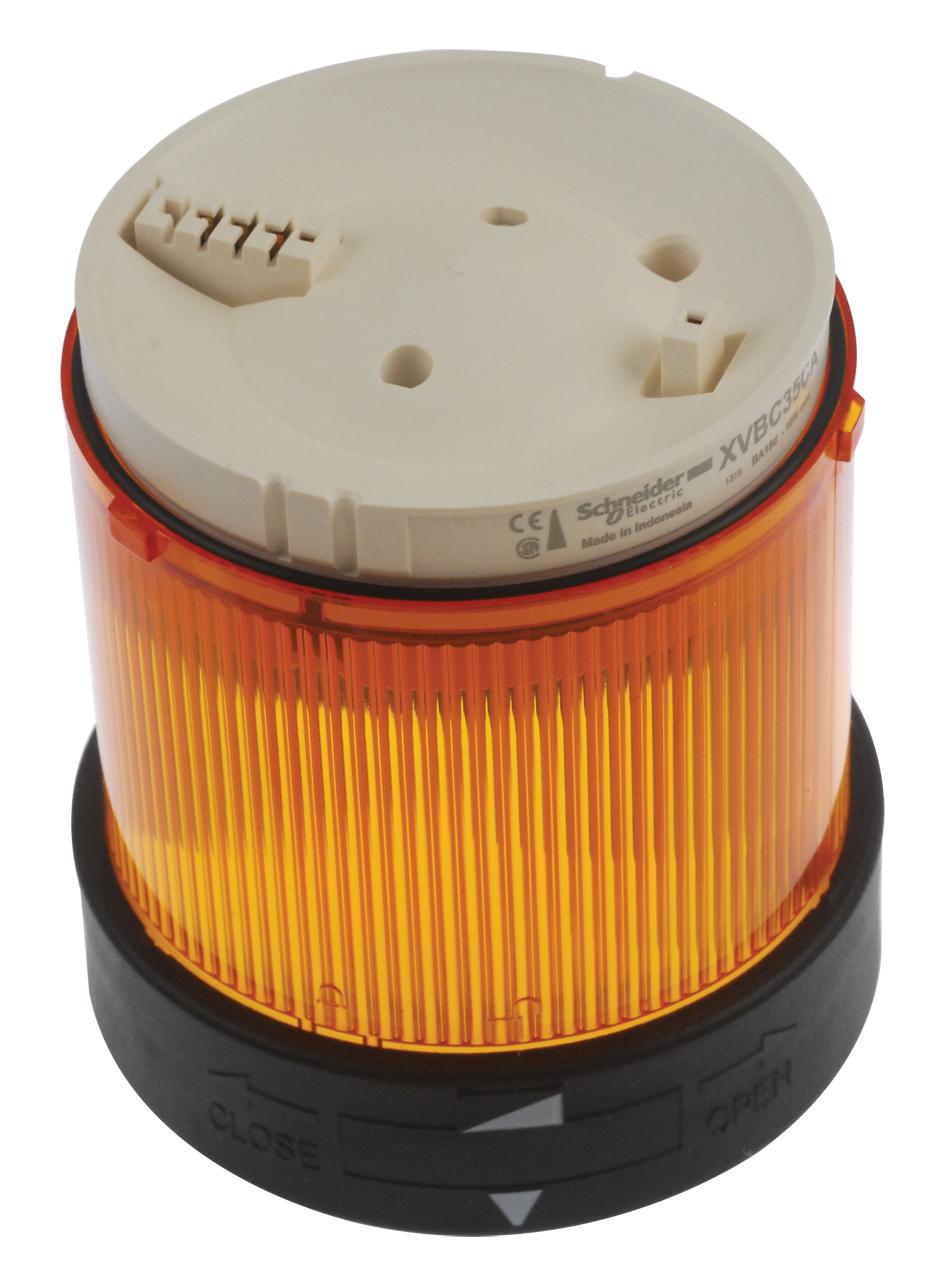

The Harmony XVB beacon is a visual signaling device designed for 360° visibility from a distance. It is used to indicate various operational states of a machine or installation, such as start, stop, absence of material, call for technical assistance, or fault detection. The device features environmental protection rated at IP65, making it suitable for outdoor and harsh environments. Its dimensions are 70mm in diameter and 63mm in height. Compatible with modular tower lights, it uses an orange bulb or LED (not included), and supports steady signaling with a maximum power dissipation of 7W. It operates at 250V and meets multiple safety standards.
Schneider Electric XVBC35 Industrial Signal Beacon Specifications:
- Mounting diameter: 70 mm (2.76 in)
- Dimensions: Diameter 70 mm (2.76 in), Height 63 mm (2.48 in)
- Material: Polycarbonate
- Light source: Bulb not included, orange, incandescent BA 15d or protected LED
- Rated voltage: 250 V
- Power dissipation: Max 7W
- Ingress protection: IP65
- Environmental rating: Pollution degree 2
- Operating temperature range: -25°C to +50°C
- Standards: EN/IEC 60947-5-1, UL 508, CSA, GOST
- Certifications: CSA, UL, NEMA 4X
- Assembly style: Customer assembly, up to 5 units
- Connection: Screw clamp terminals, <= 1.5 mm²
- Rated insulation voltage: 250 V
- Impule withstand voltage: 4 kV
- Sustainability: Green Premium product
- Disposal: Compliant with WEEE directive
Buy the Schneider XVBC35 – Reliable Signaling for Industrial Applications
Order the Schneider XVBC35 online today and enhance your industrial signaling setup. Designed for robustness and reliability, this visual indicator provides 360° visibility, IP65 protection, and easy integration into your machinery. Its compact 70mm diameter makes it ideal for a variety of applications, ensuring clear communication of machine states such as start, stop, or faults. With certified safety standards and eco-friendly features, the XVBC35 is the perfect choice for demanding industrial environments. Purchase now for fast delivery and seamless installation.
Get Schneider XVBC35 today—built for precision, durability, and optimal visual signaling in industrial environments.
Frequently Asked Questions
Where can I buy Schneider Electric XVBC35?
You can click on the BUY or RFQ button to purchase XVBC35 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part XVBC35?
You can download the XVBC35 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of XVBC35?
Schneider Electric
