Schneider Electric ZB2BE102 Datasheet & Stock

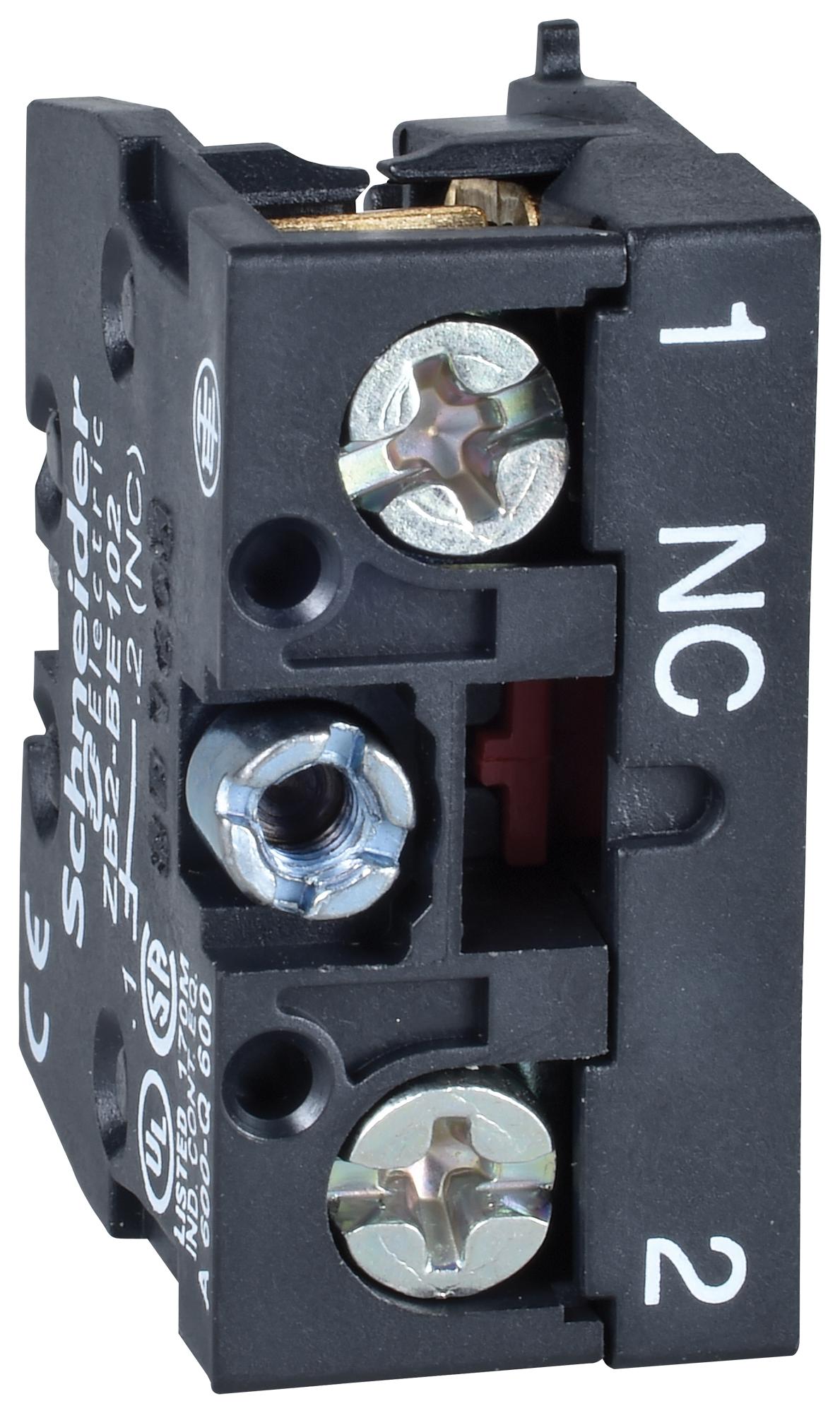

The ZB2BE102 is a spring return single contact block designed for slow-break operation. It features a single Normally Closed (NC) contact and requires an operating force of 13 to 15 Newtons. Suitable for use with Square D Type ZA2, ZB2 pushbutton switches, it supports front mounting and has a mechanical durability of one million cycles. The contact block uses screw clamp terminals capable of connecting 2 x 1.5 mm² cables with ends and 1 x 2.5 mm² cables without ends. It is compatible with XACA, XB4, and XB5 series and conforms to IEC 60947-1 standards with a rated impulse withstand voltage of 6kV. Ideal for industrial applications.
