Schneider Electric ZB4BD922 Control Component

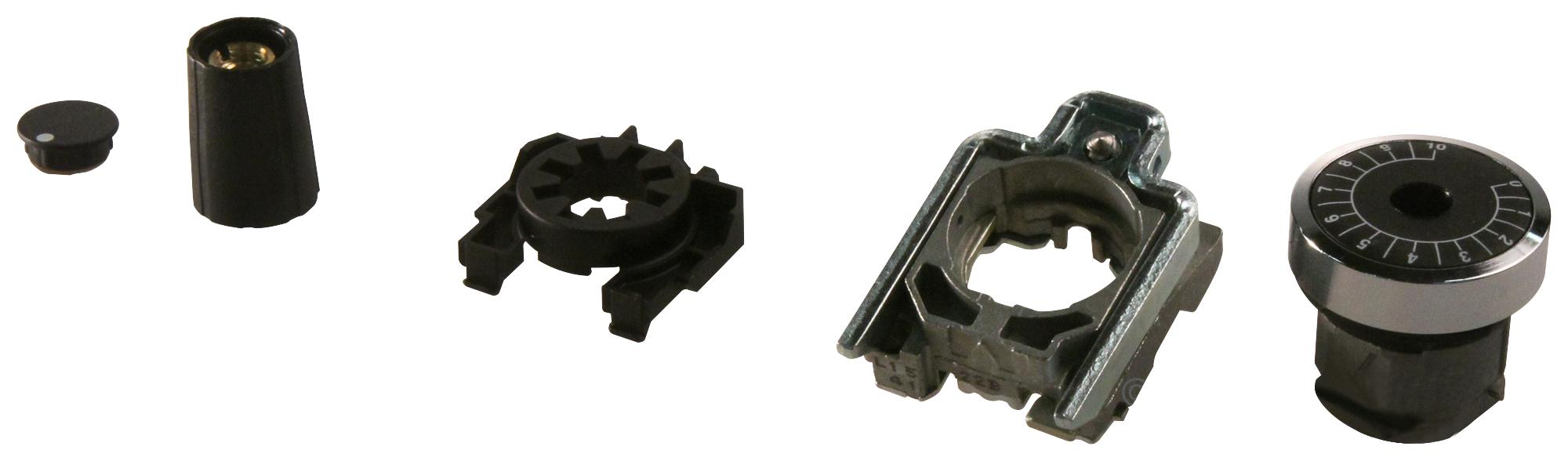

The ZB4BD922 is a round head and mounting base designed for potentiometers with a 22 mm mounting diameter, compatible with 6.35 mm shafts. It features a chromium-plated metal bezel, knurled white operator profile, IP66 protection rating, and resistance to high-pressure washer jets. Suitable for industrial environments, it withstands ambient temperatures from -25°C to 70°C during operation and -40°C to 70°C for storage. Certified by UL, CSA, DNV, and others, it ensures durability and safety for control and automation applications.
Schneider Electric ZB4BD922 Control Component Specifications:
- Mounting diameter: 22 mm
- Bezel material: Chromium plated metal
- Operator profile: Knurled knob, white
- Protection rating: IP66 conforming to IEC 60529
- Vibration resistance: 5 gn (2...500 Hz) conforming to IEC 60068-2-6
- Shock resistance: 50 gn for 11 ms, 30 gn for 18 ms conforming to IEC 60068-2-27
- Ambient air temperature for operation: -25°C to 70°C
- Ambient air temperature for storage: -40°C to 70°C
- High-pressure washer resistance: 7,000,000 Pa at 55°C, distance: 0.1m
- Standards: EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508, JIS C 4520, etc.
- Certifications: UL listed, CSA, BV, RINA, Lloyds Register
- Weight: 0.08 kg
Buy the Schneider Electric ZB4BD922 – Reliable Potentiometer Head for Industrial Applications
Purchase the Schneider Electric ZB4BD922 online now—engineered for durability and precision in industrial automation. Featuring a round head design, 22 mm mounting diameter, IP66 protection rating, and high-pressure washer resistance, it is ideal for demanding environments. Compatible with 6.35 mm shafts, it ensures reliable operation with certified safety standards such as UL, CSA, and others. Perfect for control panels, automation systems, and industrial equipment, this potentiometer head guarantees longevity and consistent performance, making it an essential component for engineers and technicians.
Get Schneider Electric ZB4BD922 today—built for precision and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BD922?
You can click on the BUY or RFQ button to purchase ZB4BD922 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BD922?
You can download the ZB4BD922 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BD922?
Schneider Electric
