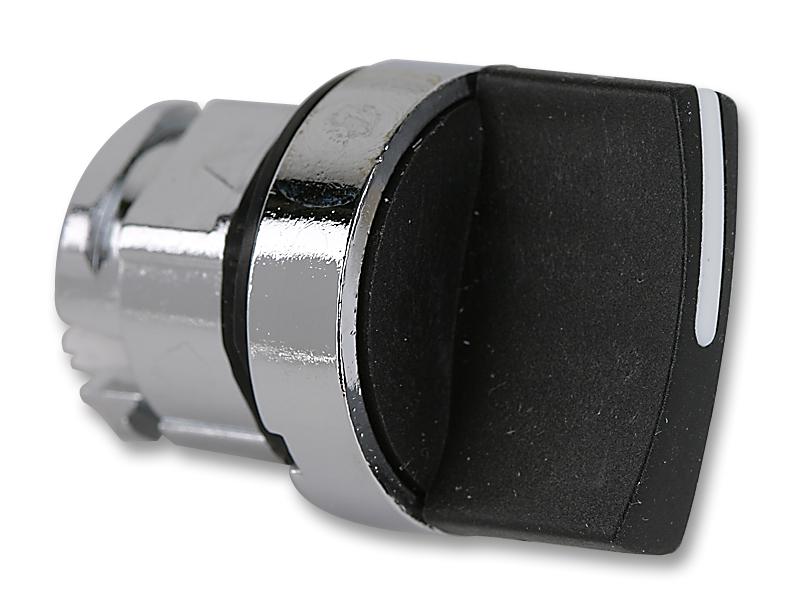

Schneider Electric ZB4BJ5 Selector Switch Head
The ZB4BJ5 is a round, black selector switch head designed for industrial automation applications within the Harmony XB4 range. It features a 3-position spring return operator profile with a long handle and a non-padlockable design. Mountable on a 22mm diameter panel, this switch offers high resistance to pressure washing (7,000,000 Pa at 55°C), mechanical durability of 1,000,000 cycles, and IP69/IP67 protection ratings. Certified by UL, CSA, and other global standards, it ensures reliable performance in harsh environments and adheres to IEC standards for safety and durability.
Schneider Electric ZB4BJ5 Selector Switch Head Specifications:
- Shape of signaling unit head: Round
- Mounting diameter: 22mm
- Overall width: 29mm
- Overall height: 38mm
- Overall depth: 44mm
- Product weight: 0.04 kg
- Protective rating: IP69, IP67, NEMA 13, NEMA 4X, IKO6
- Electrical composition code: C6, C7, C8, C9, C11, SF1, SR1 (varies by contact configuration)
- Mechanical durability: 1,000,000 cycles
- Resistance to high pressure washer: 7,000,000 Pa at 55°C
- Ambient temperature for storage and operation: -40°C to 70°C
- Standards: EN/IEC 60947-5-4, 60947-1, 60947-5-5, IEC 60068-2-6, IEC 60068-2-27, UL 508
- Certifications: UL listed, RINA, BV, DNV, CSA, Lloyds
- Vibration resistance: 5 gn (500 Hz)
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms)
- Overvoltage category: Class I
- Tightening torque: 0.6 N.m
- Panel cut-out diameter: 22.4mm + 0.1mm
- Ambient air temperature for operation and storage: -40°C to 70°C
Buy the Buy Schneider Electric Selector Switch Head Part Number ZB4BJ5 Online
Get the Schneider Electric ZB4BJ5 selector switch head online today. Designed for heavy-duty industrial use, it features a robust 22mm mount, IP69/IP67 ratings, high pressure wash resistance, and UL certification. This durable, round black switch offers three positions with spring return, and withstands harsh environments with excellent vibration and shock resistance. Perfect for automation and control applications, it guarantees reliable and safe operation in demanding settings. Purchase now for quick delivery and premium quality.
Order your Schneider Electric Series ZB4BJ5 selector switch head today and ensure reliable operation with high durability and environmental protection.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BJ5?
You can click on the BUY or RFQ button to purchase ZB4BJ5 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BJ5?
You can download the ZB4BJ5 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BJ5?
Schneider Electric
