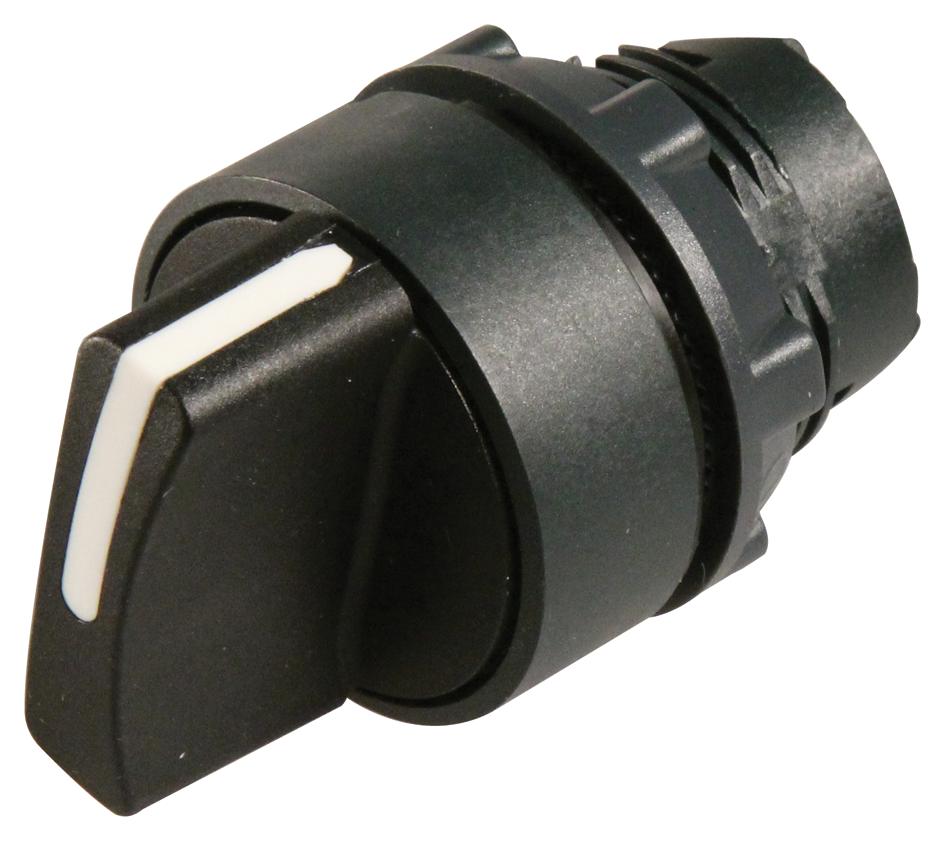

Schneider Electric ZB5AD2 Selector Switch Head
The ZB5AD2 is a 2-position, 90° selector switch head with a durable plastic bezel and a black standard handle, suitable for demanding industrial environments. Part of the ZB5 series, it features a round signaling unit head known for its compact, flexible design. It offers excellent resistance to chemicals, with double electrical insulation for safety. Rated for 1,000,000 mechanical cycles, it complies with IEC standards including IEC 60536 for electrical safety and IEC 60529 for protection ratings up to P69K and P66, along with impact resistance IK06. Its robust construction makes it optimal for industrial, military, aerospace, and logistics applications.
Schneider Electric ZB5AD2 Selector Switch Head Specifications:
- Range of product: Harmony XALF, Harmony XB5
- Device short name: ZBS
- Head type: Standard
- Shape of signaling unit: Round head
- Mounting diameter: 22mm (0.87 in)
- Overall width: 29 mm (1.14 in)
- Overall height: 29 mm (1.14 in)
- Overall depth: 46 mm (1.81 in)
- Net weight: 0.017 kg (0.04 lb)
- Mechanical durability: 1,000,000 cycles
- Protection rating: IP69K, IP67, NEMA 13, NEMA 4X
- Impact protection: IK06
- Operating temperature: -40°C to +70°C (-40°F to +158°F)
- Vibration resistance: 5 gn at 2-500 Hz
- Shock resistance: 30 gn (18 ms) / 50 gn (11 ms)
- Standards compliance: IEC 60068-2-6, IEC 60068-2-27, UL 508, IEC 60947
- Certifications: UL Listed, CSA, BV, DNV, RINA, GL, Lloyd’s Register
- Protection classes: Class II according to IEC 60536
- Environmental: Storage and operational temperature from -40°C to +158°C
- Panel cut-out: 22 mm + 0.1 mm (0.88 in + 0.004 in)
- Connection: Screw clamp terminals, plug-in connectors, or PCB mounting
- Lug recess: Diameter for finished panel or support details provided
Buy the Schneider Electric Series XB5 Selector Switch: ZB5AD2
Enhance your industrial control panel with the Schneider Electric ZB5AD2 selector switch head, offering 2-position operation, durable construction, and IP69K protection. Perfect for demanding environments, its compact round head and robust design ensure longevity and safety. Easily install with screw clamp or PCB connection options. With standards compliance and high durability ratings, it’s ideal for industrial, military, aerospace, and logistics applications. Purchase online today for reliable operation and efficient control system integration.
Buy Schneider Electric ZB5AD2 selector switch head now and experience unmatched reliability and performance for industrial control solutions.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5AD2?
You can click on the BUY or RFQ button to purchase ZB5AD2 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5AD2?
You can download the ZB5AD2 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5AD2?
Schneider Electric
