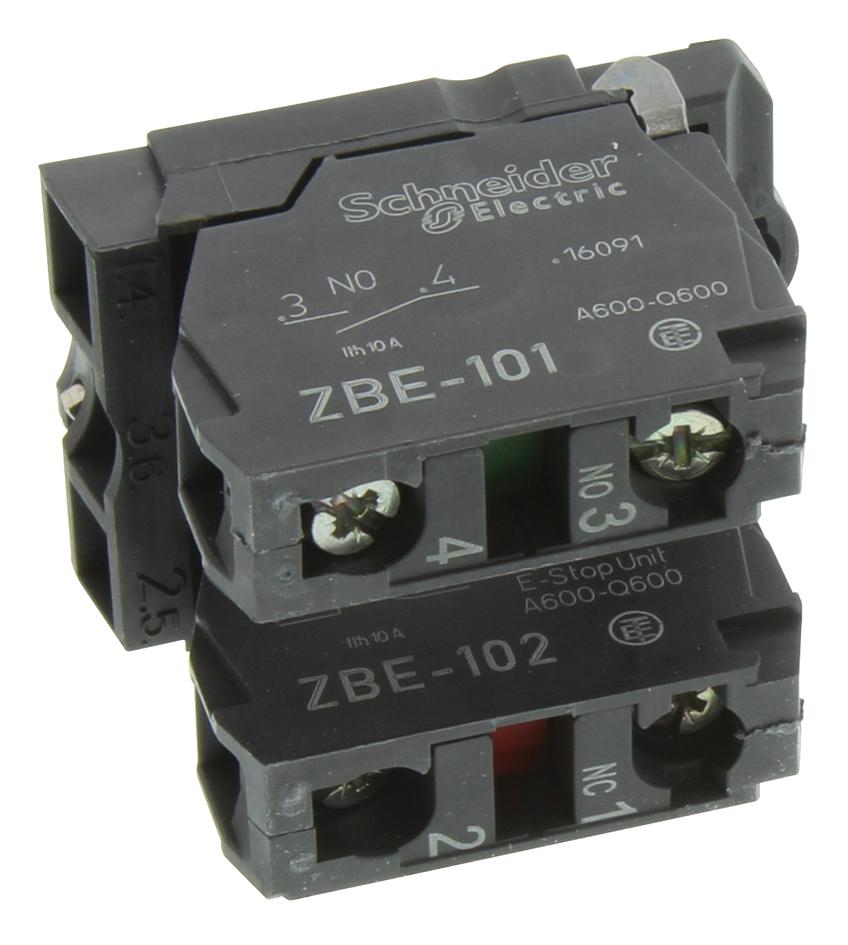

Schneider Electric ZB5AZ105 Contact Block
The ZB5AZ105 is a high-quality contact block designed for industrial automation and control systems. It features one normally open and one normally closed contact, constructed with durable silver alloy contacts for reliable electrical performance. The body is made of robust plastic with a fixing collar for secure installation. With screw clamp terminals compatible with various wire sizes, it ensures easy wiring and maintenance. Rated IP20, it withstands mechanical cycles up to 5 million, making it ideal for demanding environments in automation, machinery, and process control applications.
Schneider Electric ZB5AZ105 Contact Block Specifications:
- Contacts: 1NO (normally open) and 1NC (normally closed)
- Contact Material: Silver alloy (Ag/Ni)
- Body Material: Plastic
- Protection rating: IP20
- Mechanical durability: 5,000,000 cycles
- Terminal type: Screw clamp terminals
- Terminal size: suitable for wire up to 2 x 1.5 mm² with cable end
- Fixing collar material: Plastic
- Overall dimensions: Width 30 mm, Height 42 mm, Depth 32 mm
- Rated insulation voltage: 600 V
- Rated operational current: 3 A at 240 V AC
- Conforms to standards: EN/IEC 60947-5-1
- Compliance: UL, CSA, RINA, Lloyds, DNV, BV, GL
- Environmental conditions: -40°C to +70°C, IP20
Buy the Buy Schneider Electric Contact Block Part Number ZB5AZ105 Online
Purchase the Schneider Electric contact block ZB5AZ105 online for dependable electrical contacts in automation and control applications. It features a robust plastic body, silver alloy contacts, and screw clamp terminals for straightforward wiring. Designed to withstand up to 5 million mechanical cycles, it offers IP20 protection, suitable for industrial environments. This high-performance contact block is essential for reliable operation in machinery, process control, and automation systems, ensuring safety and durability in demanding applications.
Get Schneider Electric ZB5AZ105 today—built for reliable switching and long-lasting durability in industrial automation.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5AZ105?
You can click on the BUY or RFQ button to purchase ZB5AZ105 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5AZ105?
You can download the ZB5AZ105 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5AZ105?
Schneider Electric
