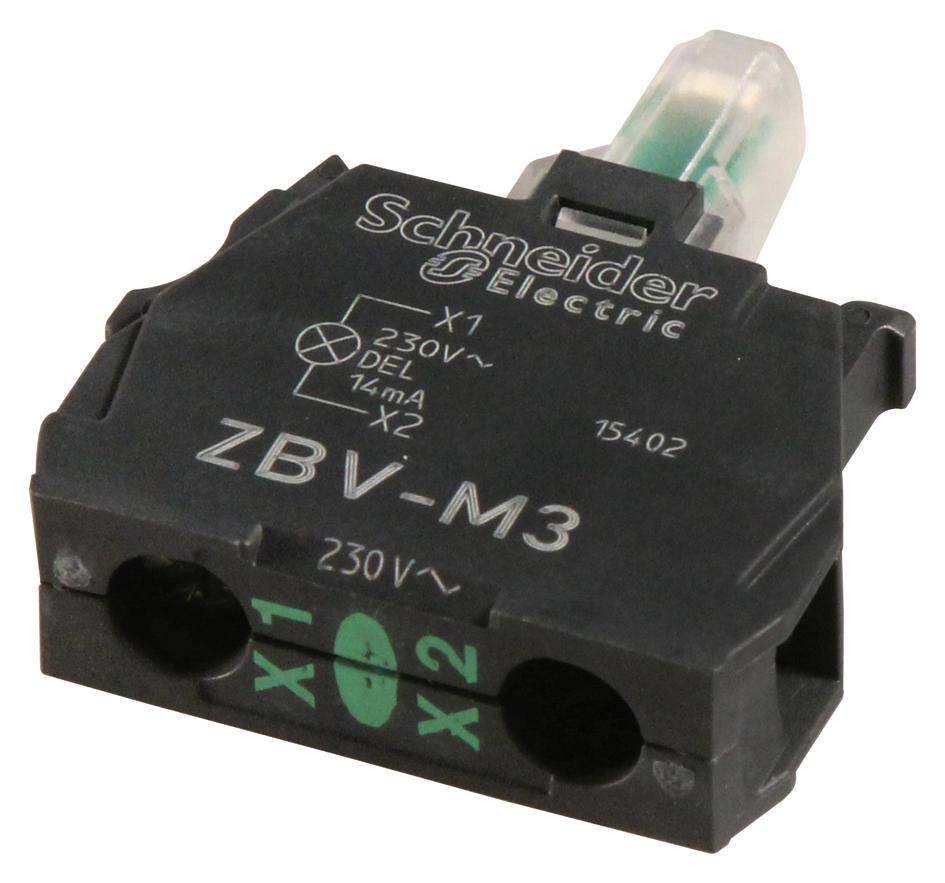

Schneider Electric ZBVM3 LED indicator light
The ZBVM3 is a 240V green LED indicator light designed for 22mm pushbutton heads. It features a steady signaling type with a protected LED light source and an integral LED bulb base. The indicator is mounted from the front and connects via screw clamp terminals. This component is suitable for industrial applications, offering durability with a service life of 100,000 hours at rated voltage and 25°C. It complies with safety standards such as EN/IEC 60947 and UL, making it ideal for industrial control panels and machinery.
Schneider Electric ZBVM3 LED indicator light Specifications:
- Rated Voltage: 230...240 V AC 50/60 Hz
- Light Source: Protected LED, Integral LED bulb base, Green
- Signaling Type: Steady
- Connection: Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1
- Mounting: Front mounting
- Service Life: 100,000 hours at rated voltage and 25°C
- Tightening Torque: 0.8...1.2 N·m conforming to EN 60947-1
- Ingress Protection: IP20 IEC 60529
- Operating and Storage Temperature: 0...158°F (-40...70°C)
- Standards: EN/IEC 60947-1, EN/IEC 60947-5-4, UL 508, CSA C22.2 No 14
- Certifications: UL Listed, CSA
- Electromagnetic Compatibility: Resistance to fast transients 2 kV IEC 61000-4-4, Resistance to electromagnetic fields 9.14 V/m IEC 61000-4-3
- Electrostatic Discharge: 6 kV contact, 8 kV air IEC 61000-4-2
- Environmental: Green Premium product, RoHS, REACh compliant, Mercury free
- Weight: 0.017 kg (0.04 lb)
Buy the Schneider Electric ZBVM3 – Reliable Indicator Lights for Industrial Applications
Enhance your industrial control systems with the Schneider Electric ZBVM3 LED indicator light. Designed for 22mm pushbutton heads, it offers reliable steady signaling at 240V with a durable green LED source. Front mounting facilitates easy installation. Built to withstand industrial environments, it features an IP20 protection rating, long service life of 100,000 hours, and complies with strict safety standards including UL and IEC. Making it ideal for machinery, control panels, and automation projects, this indicator ensures clear status indication and operational reliability, available for quick purchase online.
Order your Schneider Electric ZBVM3 LED indicator light today and enhance your control panels with this robust, energy-efficient industrial solution.
Frequently Asked Questions
Where can I buy Schneider Electric ZBVM3?
You can click on the BUY or RFQ button to purchase ZBVM3 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZBVM3?
You can download the ZBVM3 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZBVM3?
Schneider Electric
