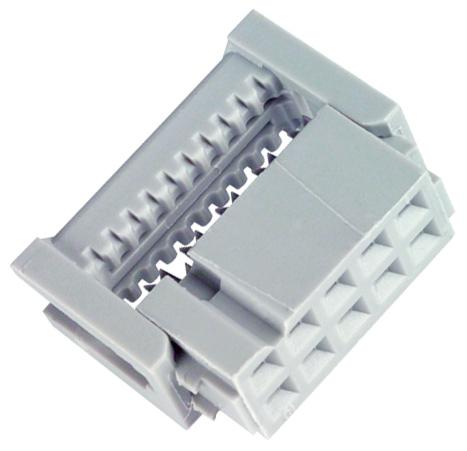

3M 891160001 IDC Ribbon Cable Socket
Preassembled wire-mounted connector compatible with .050-inch pitch cables. Designed for reliable connection and easy installation, this connector features a gray polyester housing, phosphor bronze contacts with gold and nickel plating, and supports connections for 26 and 28 AWG stranded wires. It offers a current rating of 1A, insulation resistance of 1000 MΩ, and withstands voltage of 1000 V. The connector's dimensions include an assembled height of approximately 14 mm with strain relief, and it conforms to UL 94V-0 flammability standards, ensuring safety and durability in electronic applications.
3M 891160001 IDC Ribbon Cable Socket Specifications:
- Housing Material: Glass Filled Polyester (PBT)
- Flammability: UL 94V-0
- Color: Gray
- Contact Material: Phosphor Bronze
- Plating: 30 µV” Gold over Nickel
- Underplating: Nickel
- Wire Range: 26 and 28 AWG stranded
- Current Rating: 1 A
- Insulation Resistance: 1000 MΩ
- Withstanding Voltage: 1000 V
- Temperature Rating: -55°C to +105°C
- Dimensions: Approximate assembled height 14 mm with strain relief, cable exit diameter 0.64 mm, space for cable exit 0.25 mm
- Recessed cable exit, dual polarization slots, optional pull tabs, preassembled on swords for easy handling
Buy the 3M Series 891 IDC Ribbon Cable Socket: 891160001
Purchase the 3M IDC Ribbon Cable Socket online now for dependable, easy-to-install connections suitable for high-performance electronic projects. This preassembled connector features a durable polyester housing, gold-plated contacts for optimal conductivity, and supports wire sizes of 26 and 28 AWG. Designed for simple assembly with tools, it ensures secure, durable connections while meeting UL safety standards. Ideal for efficient cable management and reliable electrical connections across various electronic and industrial applications, offering excellent performance and safety assurances.
Buy 3M 891160001 now and experience unmatched reliability and performance in electronic connector solutions.
Frequently Asked Questions
Where can I buy 3M 891160001?
You can click on the BUY or RFQ button to purchase 891160001 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 891160001?
You can download the 891160001 datasheet or visit the 3M website for support.
Who is the manufacturer of 891160001?
3M
