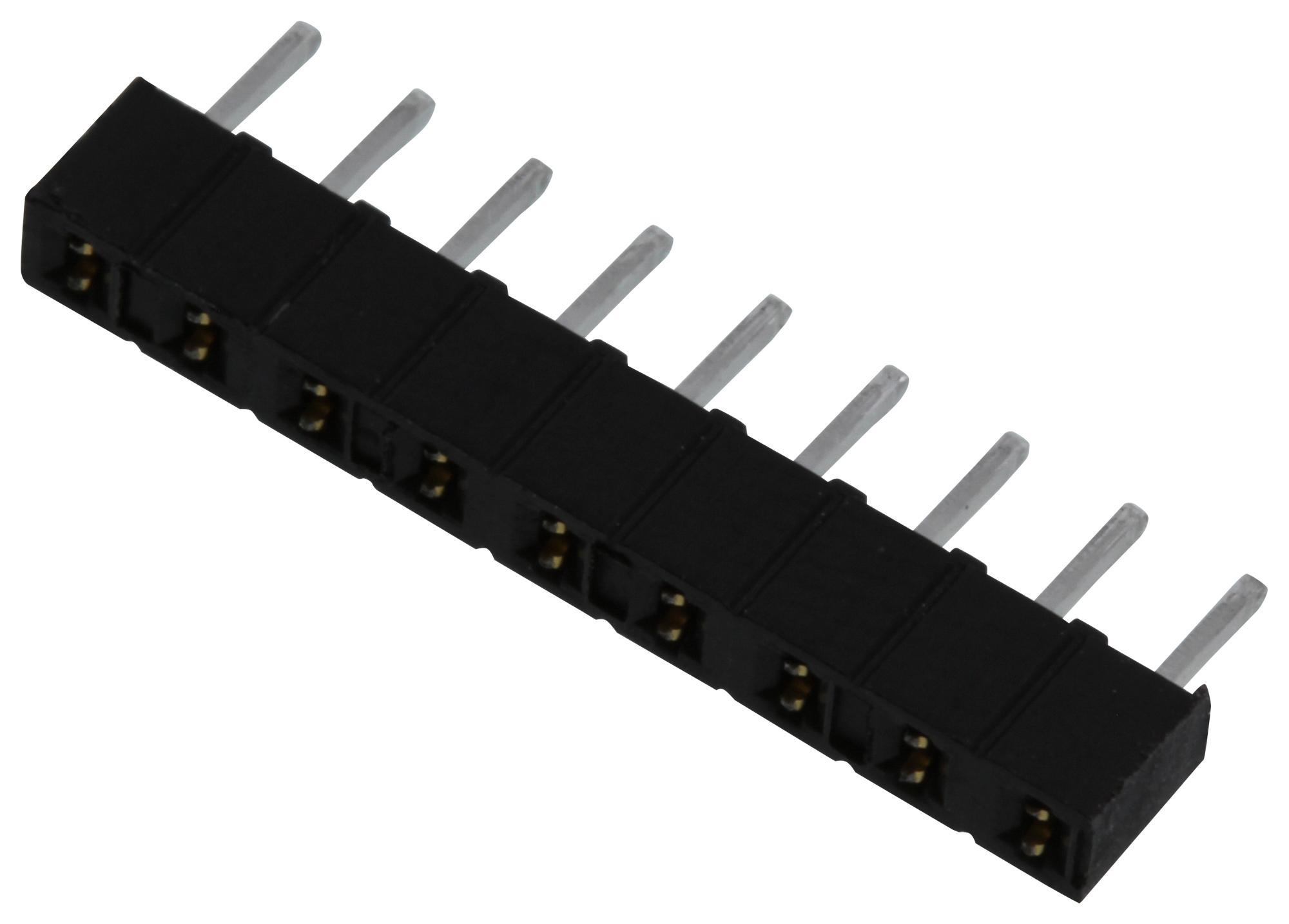

3M 9298700109RA Boardmount Socket
The 3M Boardmount Socket from the 929 Series offers versatile connection options with .100" and .100" x .100" straight solder tails, supporting 1-40 contacts on a single row or 2-80 contacts on a dual row. Its tuning fork contact design enhances connectivity, while solder standoffs facilitate efficient wave soldering production. The socket features a durable glass-filled polyester insulator rated UL 94V-0 in black, with copper alloy contacts plated in nickel and optional tin-lead or matte tin coatings. It withstands temperatures from -40°C to +105°C, operates at 2 amps, and complies with RoHS regulations for electronic applications.
3M 9298700109RA Boardmount Socket Specifications:
- Material: Glass Filled Polyester UL 94V-0, black
- Contact Material: Copper Alloy
- Plating: Nickel 100 μ
- or optional Tin Lead / Matte Tin
- Electrical Rating: 2 amps maximum per line
- Insulation Resistance: >5 x 10^9 Ω at 500 V
- Withstanding Voltage: 1,500 V at Sea Level
- Temperature Range: -40°C to +105°C
- Max Solder Temperature: 260°C (PBT version), 191°C maximum molded insulator temperature
- Physical Dimensions: Supports 1-40 contacts single row, 2-80 contacts dual row; contact spacing varies from 0.20" to 4.00"
- Mounting: Boardmount with optional retention feature, compatible with 929 series headers and 2300 series pinstrips
- Color: Black insulator, contact surfaces plated per option
Buy the 3M Series 929 Boardmount Socket: 9298700109RA
Enhance your electronic projects with the reliable 3M Series 929 Boardmount Socket. This high-quality connector features .100" solder tails, tuning fork contact design, and optional retention for secure mounting. Designed for durability and temperature resistance from -40°C to +105°C, it supports up to 2 amps per line, making it ideal for high-density connections in industrial and electronic applications. Easy to install with wave soldering compatibility, this socket ensures robust electrical performance and long-term stability. Shop online today for quality connectivity solutions.
