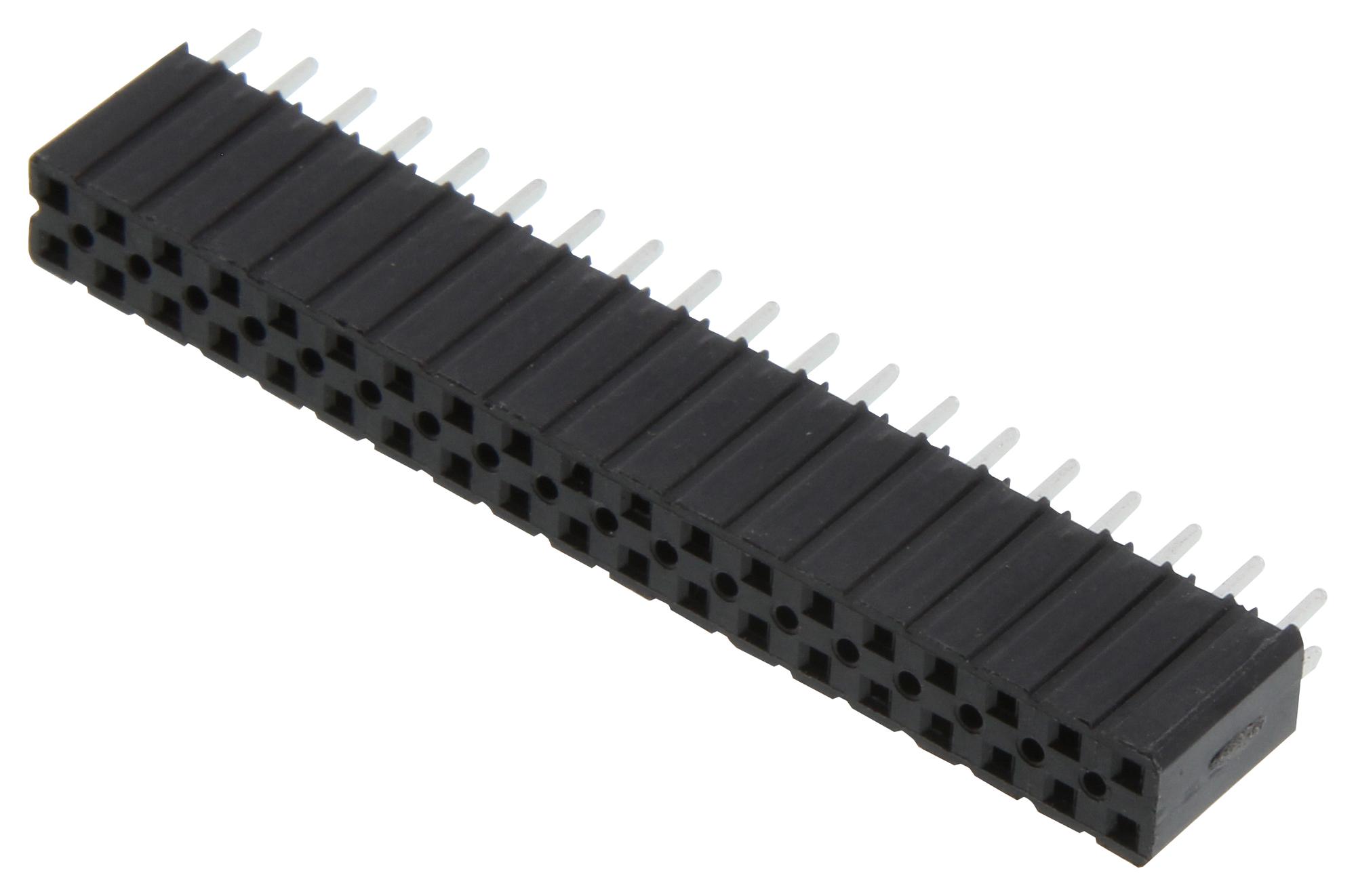

3M 9299750119RK Electrical Socket
The 3M Boardmount Socket is a reliable electronic component designed for mounting on printed circuit boards. It features .100" and .100" x .100" straight solder tails, with options for 1-40 contacts on a single row or 2-80 contacts on two rows. Made from UL 94V-0 glass-filled polyester, it has copper alloy contacts with tin-lead or matte tin plating, ensuring excellent electrical connectivity. The socket supports up to 2 amps current, with high insulation resistance and withstand voltage suitable for industrial and electronic applications, accommodating temperature ranges from -40°C to +105°C.
3M 9299750119RK Electrical Socket Specifications:
- Material: Glass Filled Polyester (PCT)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Tin Lead or Matte Tin
- Current Rating: 2 amps maximum
- Insulation Resistance: >5 x 10^9 ohms at 500 V
- Withstanding Voltage: 1,500 V at Sea Level
- Temperature Range: -40°C to +105°C
- Process Rating: 260°C (per J-STD-020C), Max molded insulator temperature 191°C
- Physical: Solder Tails with optional board retention feature
- Dimensions: .100" and .100" x .100" straight, various contact sizes
Buy the 3M 9299750119RK – Reliable Electrical Socket for Industrial Applications
Experience seamless PCB mounting with the 3M reliable electrical socket designed for industrial and electronic applications. Featuring up to 80 contacts, solder tails, and optional board retention, it offers excellent current capacity and high insulation resistance. Constructed from UL 94V-0 glass-filled polyester with copper alloy contacts plated in tin-lead or matte tin, this socket withstands temperatures from -40°C to +105°C. Easily integrate into your projects for durable, high-quality electrical connections that meet industry standards.
Order your 3M Series 9299750119RK reliable boardmount socket today and ensure dependable PCB connections for your industrial or electronic projects.
Frequently Asked Questions
Where can I buy 3M 9299750119RK?
You can click on the BUY or RFQ button to purchase 9299750119RK from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9299750119RK?
You can download the 9299750119RK datasheet or visit the 3M website for support.
Who is the manufacturer of 9299750119RK?
3M
