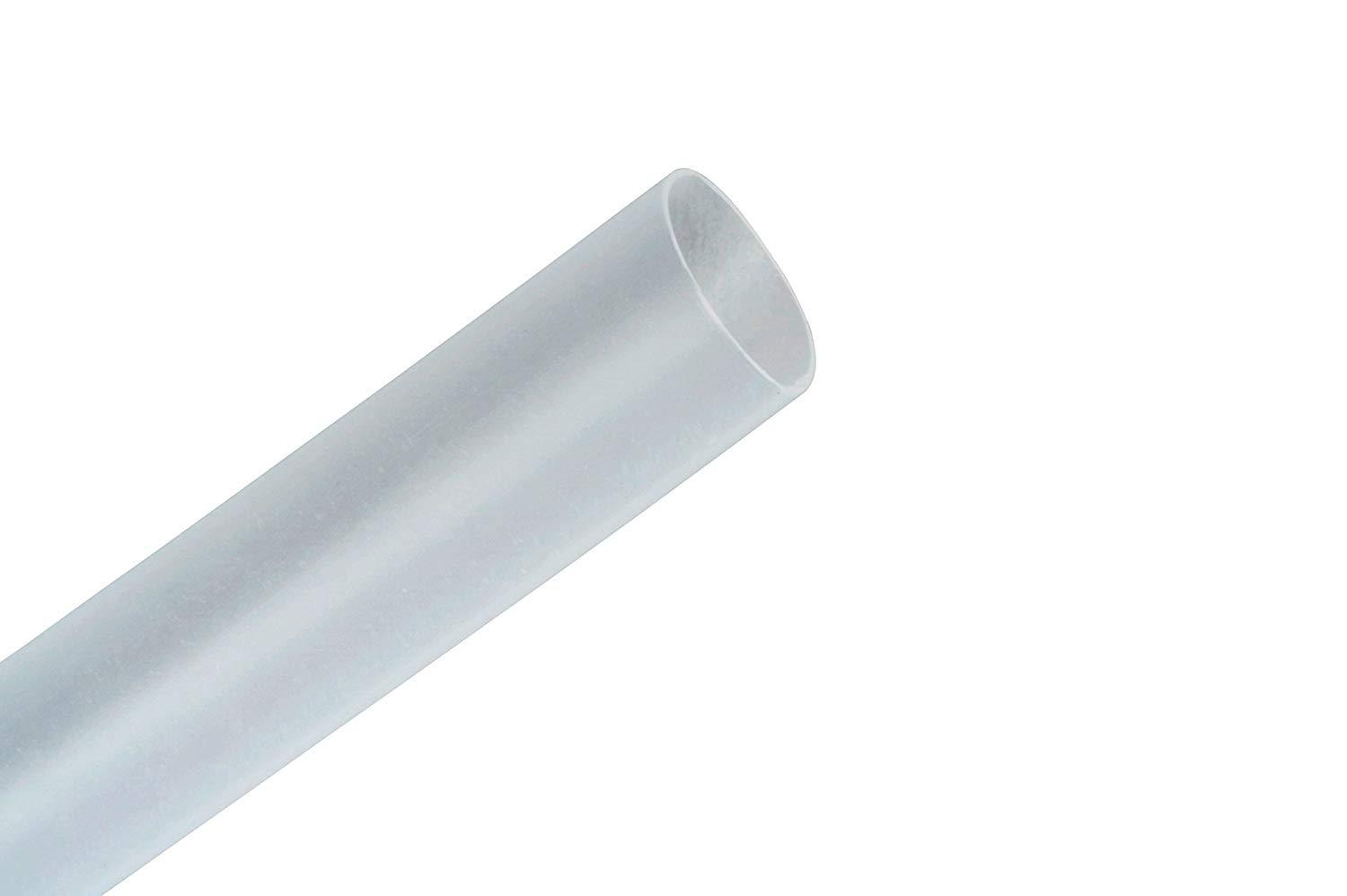

3M FP301148CLEARHDR5PCS Polyolefin Heat Shrink Tubing
High-quality polyolefin heat shrink tubing from the FP-301 series offers excellent electrical insulation and environmental protection. This thin-walled tubing features a 2:1 shrink ratio, making it suitable for cable splices, terminations, wire harness covering, wire marking, component packaging, and fire-resistant coverings. It complies with MIL-I-23053/5 Class 1 and 2, AMS 3636, and AMS 3637 standards. The tubing is UL recognized and CSA certified for 600V at 125°C. Each piece measures 48 inches in length, ensuring durability and reliable performance in industrial and military applications.
3M FP301148CLEARHDR5PCS Polyolefin Heat Shrink Tubing Specifications:
- Material: Polyolefin
- Shrink Ratio: 2:1
- Maximum Operating Temperature: 135°C (275°F)
- Short-term Heat Resistance: 300°C (572°F)
- Minimum Shrink Temperature: 100°C (212°F)
- Standard Length: 48 inches
- Color Options: Black, white, red, blue, green, yellow, clear
- Standards: MIL-DTL-23053/5 Class 1 & 2, AMS-3636, AMS-3637
- Electrical Rating: 600 volts @ 125°C
- UL Recognition: Yes
- CSA Certification: Yes
- Tensile Strength: 2400 PSI
- Dielectric Strength: 900 V/mil
- Volume Resistivity: 10^14 ohm-cm
- Water Absorption: 0.2%
Buy the 3M Series FP-301 Polyolefin Heat Shrink Tubing: FP301148CLEARHDR5PCS
Enhance your electrical system's safety and reliability with our 3M Series FP-301 polyolefin heat shrink tubing. Featuring a 2:1 shrink ratio and rated for 600V at 125°C, this tubing offers excellent insulation, environmental resistance, and compliance with military standards. Perfect for cable splices, wire harness coverings, and fire-resistant applications, each 48-inch piece ensures easy installation and durable performance. Buy online today to secure high-quality heat shrink solutions for industrial and military needs with fast shipping and superior support.
Order your 3M Series FP-301 polyolefin heat shrink tubing today and ensure reliable electrical insulation and environmental protection in your projects.
Frequently Asked Questions
Where can I buy 3M FP301148CLEARHDR5PCS?
You can click on the BUY or RFQ button to purchase FP301148CLEARHDR5PCS from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part FP301148CLEARHDR5PCS?
You can download the FP301148CLEARHDR5PCS datasheet or visit the 3M website for support.
Who is the manufacturer of FP301148CLEARHDR5PCS?
3M
