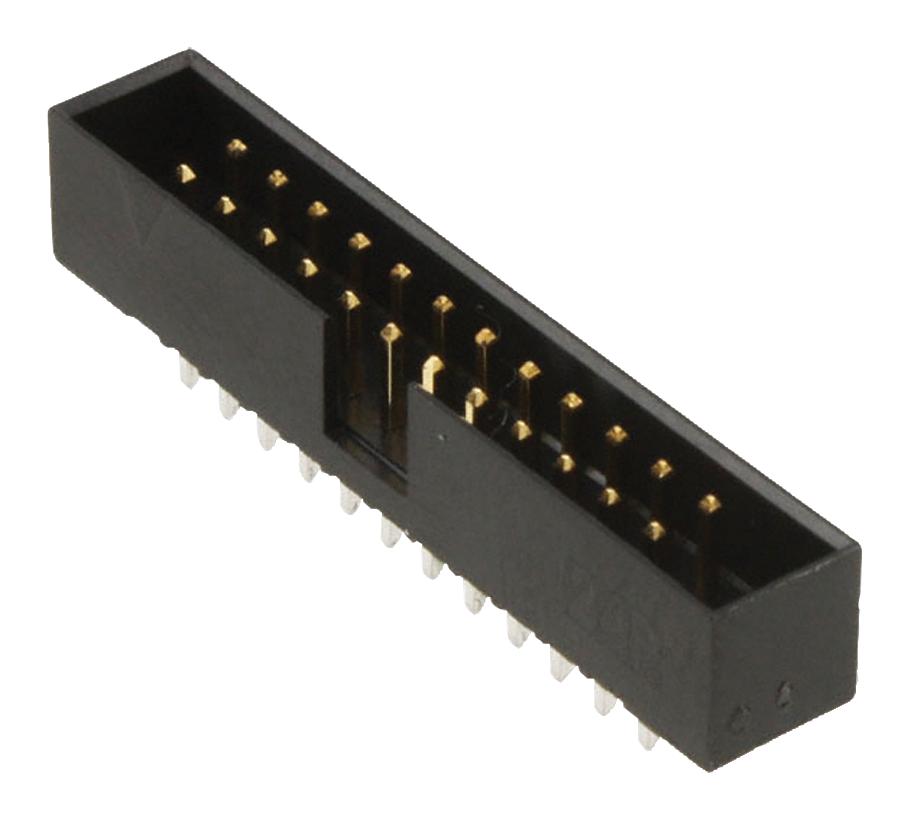

3M N25105003RB Four-Wall Header
The 3M™ Four-Wall Header is a low-profile, high-reliability SMT and through-hole connector series designed for space-efficient electronic interconnections. It features polarization slots for correct insertion, optional locking retainers for vibration resistance, high-temperature insulators, exposed solder tails for easy cleaning, and diverse material options including glass-filled polyester and PCT with UL 94V-0 flammability rating. Suitable for various PCB assembly techniques with robust current ratings up to 2A and withstand voltages of 500V RMS, making it ideal for compact, reliable electronic systems.
3M N25105003RB Four-Wall Header Specifications:
- Insulator Material: Glass Filled Polyester (PBT), Glass Filled Polyester (PCT) with High Temperature Option
- Flammability: UL 94V-0
- Color: Gray (PBT), Beige or Black (PCT)
- Contact Material: Copper Alloy
- Plating: 200 µin (5.08 µm) Gold over Nickel
- Solder Tails: Tin-Lead or Matte Tin, 200 µin (5.08 µm)
- Current Rating: 2A
- Insulation Resistance: >1x10^9 Ω at 500V
- Withstanding Voltage: 1000 V RMS
- Temperature Rating: -55°C to +105°C
- Process Rating: 260°C, single pass reflow, profile per J-STD-020C
- Moisture Sensitivity Level: 1 (per J-STD-020C)
Buy the 3M Series 2500 Four-Wall Header: N25105003RB
Discover the space-efficient and high-reliability four-wall header connector by 3M, featuring polarization slots, optional locking retainers, and high-temperature insulators suitable for SMT and through-hole PCB assembly. Its robust design ensures stable electrical performance, with current ratings up to 2A and voltage withstands of 500V RMS. Made from UL 94V-0 rated materials, it is ideal for compact electronic systems requiring durable, vibration-resistant connections. Purchase online now for reliable performance in demanding applications.
Get 3M N25105003RB today—built for space-saving, high-temperature, and vibration-resistant electronic connections.
