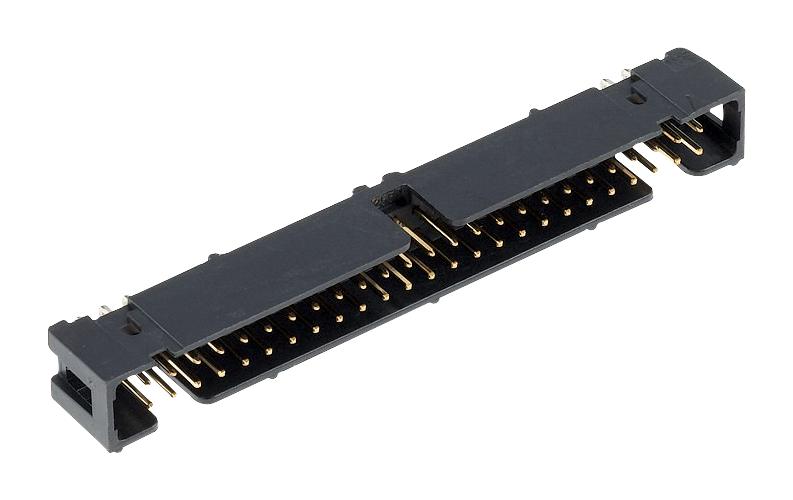

3M N25306002RB Low Profile Header
The 3M Four-Wall Header series offers high reliability, space-saving low profile and straight-through-hole designs suitable for various electronic applications. Constructed with glass-filled polyester insulators rated UL 94V-0, these connectors feature copper alloy contacts with gold or tin-plated finishes for excellent conductivity and corrosion resistance. With current ratings up to 2A and temperature operating ranges from -55°C to +105°C, they are RoHS compliant and ideal for surface mounting, rear, and through-hole configurations, including options for high-temperature and lead-free soldering environments. Compatible with polarized keying to prevent mis-insertion, the headers come with optional retention clips to ensure secure connections in vibration-prone settings, making them perfect for space-constrained, durable electronic assemblies.
3M N25306002RB Low Profile Header Specifications:
- Material: Glass Filled Polyester (PBT/PCT) with UL 94V-0 flammability rating
- Color: Gray (PBT) or Black (PCT)
- Contact Material: Copper Alloy with Gold or Tin Lead plating
- Current Rating: 2A
- Voltage Withstanding: 1000 V at sea level
- Insulation Resistance: >10^10 W at 500 V
- Temperature Rating: -55°C to +105°C
- Process Rating: 260°C (high temperature variant), compatible with reflow soldering
- Dimensions: 0.100” x 0.100” pitch, various pin counts from 8 to 64
- RoHS compliant, optional retainer clips available for vibration resistance
- Solder Tails: Tin Lead or Matte Tin, plated for corrosion resistance
- Certifications: UL listed (E68080), compliant with J-STD-020C
