3M N25405002RB Four-Wall Connector
The 3M Four-Wall Header is a low-profile, space-saving connector designed for both through-hole and surface mount applications. It features polarization slots for easy and correct insertion, and optional retention clips for enhanced reliability in vibration-prone environments. Made from glass-filled polyester with high-temperature options, it supports up to 2A current and operates at temperatures from -55°C to +105°C. The connector offers gold or tin-lead plated solder tails, and complies with RoHS standards, making it ideal for compact electronic assemblies requiring robust mechanical and electrical performance.
3M N25405002RB Four-Wall Connector Specifications:
- Material: Glass Filled Polyester (PBT) or High Temperature Glass Filled Polyester (PCT)
- Flammability: UL 94V-0
- Color: Gray (PBT) or Black (PCT)
- Contact Material: Copper Alloy
- Plating: Gold over Nickel or Tin-Lead/Tin options
- Current Rating: 2A
- Temperature Rating: -55°C to +105°C
- Process Rating: 260°C (for high-temp insulators)
- Insulation Resistance: >10^11 Ω at 500 V
- Withstanding Voltage: 1000 V at sea level
- Insulator Material: Glass Filled Polyester
- Connector Series: 2500 Series
- Mounting Options: Straight SMT, Straight through-hole, Right angle through-hole
- RoHS Compliant: Yes
- Mechanical features: Polarization slots, optional retainer clip, exposed solder tails
- Package options: Tape & reel, compatible with automated assembly

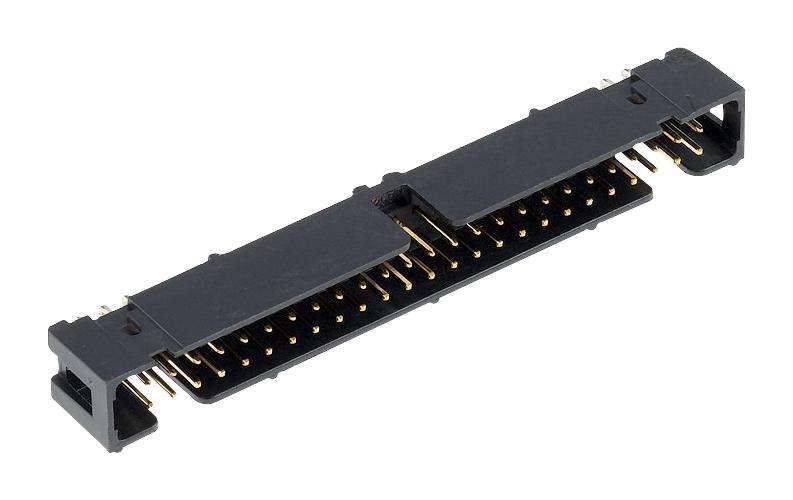

Buy the Buy 3M Four-Wall Header Part Number N25405002RB Online
Enhance your electronic assemblies with the 3M Four-Wall Connector, offering space-efficient, high-temperature performance with polarization features. This connector supports up to 2A current, operates over a wide temperature range, and features both gold and tin-lead plated solder tails for flexible options. It is RoHS compliant, compatible with various mounting styles including SMT and through-hole, and designed for high reliability in vibration-resistant applications. Purchase online to enjoy fast, secure delivery for your manufacturing or repair needs.
Order your 3M Series2500 Four-Wall Header N25405002RB today and ensure reliable connections with high-temperature, space-saving design suitable for challenging environments.
Frequently Asked Questions
Where can I buy 3M N25405002RB?
You can click on the BUY or RFQ button to purchase N25405002RB from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part N25405002RB?
You can download the N25405002RB datasheet or visit the 3M website for support.
Who is the manufacturer of N25405002RB?
3M
