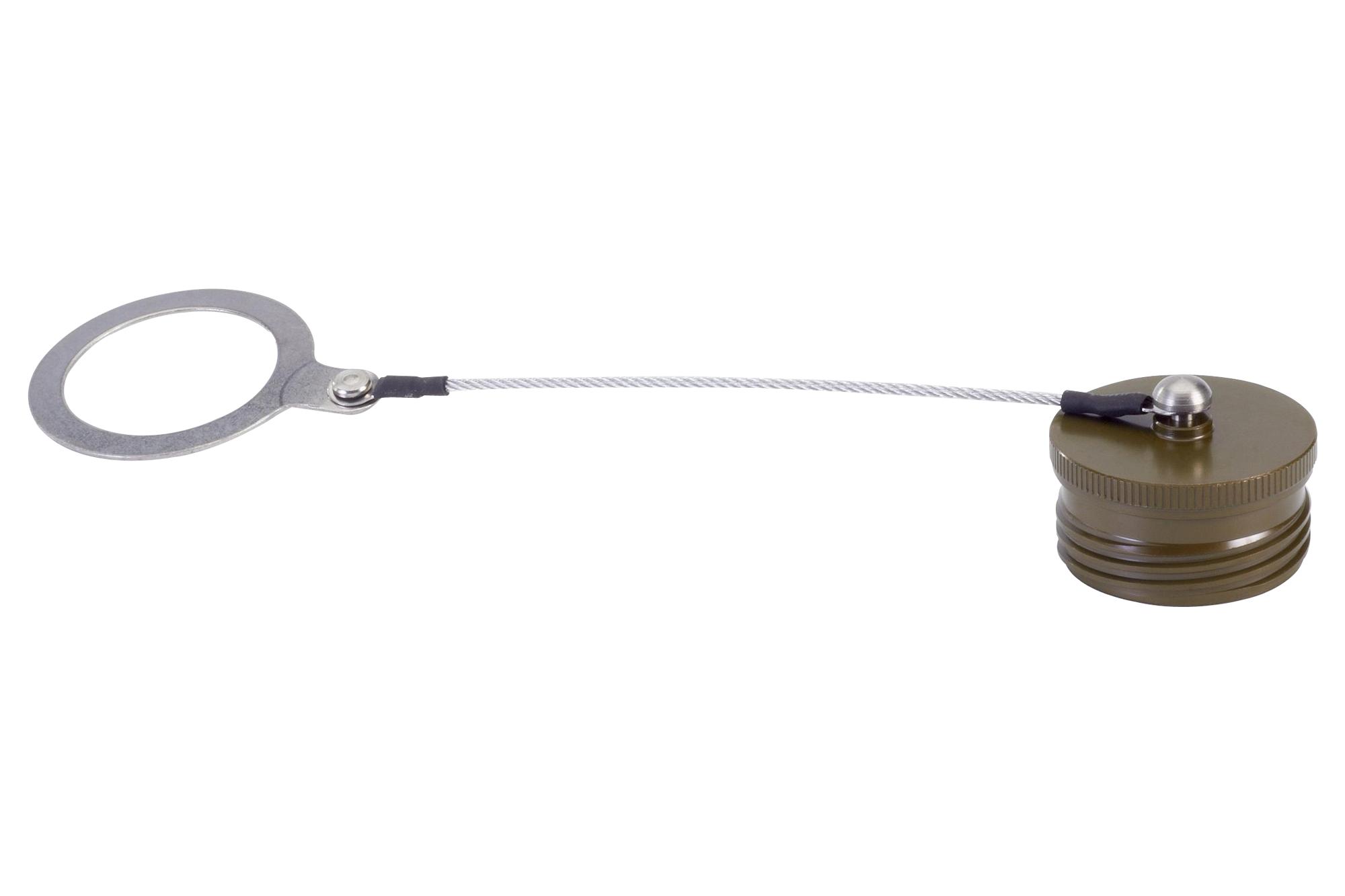

AMPHENOL PCD D3899932W15N Metal Dust Cap
This metal dust cap assembly is designed for MIL-DTL-38999 series III plugs, offering robust protection in harsh environments. Made from machined aluminium alloy with a silicone elastomer gasket, stainless steel ring, and stainless steel fasteners, it withstands temperatures up to 200°C. Various size options from 09 to 25 are available, featuring different finishes like electroless nickel, zinc nickel, and cadmium olive drab. The assembly includes options for attachment type such as bead chain, wire rope, nylon cord, or none, and end links like solid ring or tie wrap. Suitable for military and industrial applications requiring durable, corrosion-resistant protective covers.
AMPHENOL PCD D3899932W15N Metal Dust Cap Specifications:
- Material: Cover - Machined Aluminium alloy; Gasket - Silicone elastomer; Ring - Stainless steel, passivated; Fastener - Stainless steel, passivated
- Temperature Resistance: Insulation withstands 200°C environment
- Shell Sizes: 09, 11, 13, 15, 17, 19, 21, 23, 25
- Finish Options: Electroless nickel, Zinc nickel, Cadmium olive drab, PTFE nickel plating, Cadmium free zinc cobalt olive drab/black, Nickel aluminium bronze, Passivated steel
- Attachment Types: Bead chain, wire rope, nylon cord, sash chain, none
- End Links: Solid ring, tie wrap, none (small link hole), without end link
- Dimensions vary per shell size, e.g., shell size 09: diameter approx. 23 mm, length varies; shell size 25: diameter approx. 50 mm
- Designed for military and industrial applications, ensuring environmental sealing and corrosion resistance
Buy the Buy Amphenol Metal Dust Cap Assy Part Number D3899932W15N Online
Purchase the Amphenol Metal Dust Cap Assembly D3899932W15N online today and enjoy superior protection for your military and industrial connectors. Made from durable materials like machined aluminium alloy, stainless steel, and high-temperature silicone elastomer gasket, this dust cap ensures environmental sealing and corrosion resistance. Available in sizes from 09 to 25 with various finishes including electroless nickel, zinc nickel, and cadmium olive drab. Its versatile attachment options like bead chain, wire rope, or nylon cord provide flexible installation. Experience unmatched reliability and long-lasting performance for critical wiring applications by buying online now.
Buy Amphenol D3899932W15N now and ensure reliable protection for your MIL-DTL-38999 plugs with this high-quality metal dust cap assembly.
Frequently Asked Questions
Where can I buy AMPHENOL PCD D3899932W15N?
You can click on the BUY or RFQ button to purchase D3899932W15N from an authorized AMPHENOL PCD distributor.
How do I troubleshoot issues or seek technical support for part D3899932W15N?
You can download the D3899932W15N datasheet or visit the AMPHENOL PCD website for support.
Who is the manufacturer of D3899932W15N?
AMPHENOL PCD
