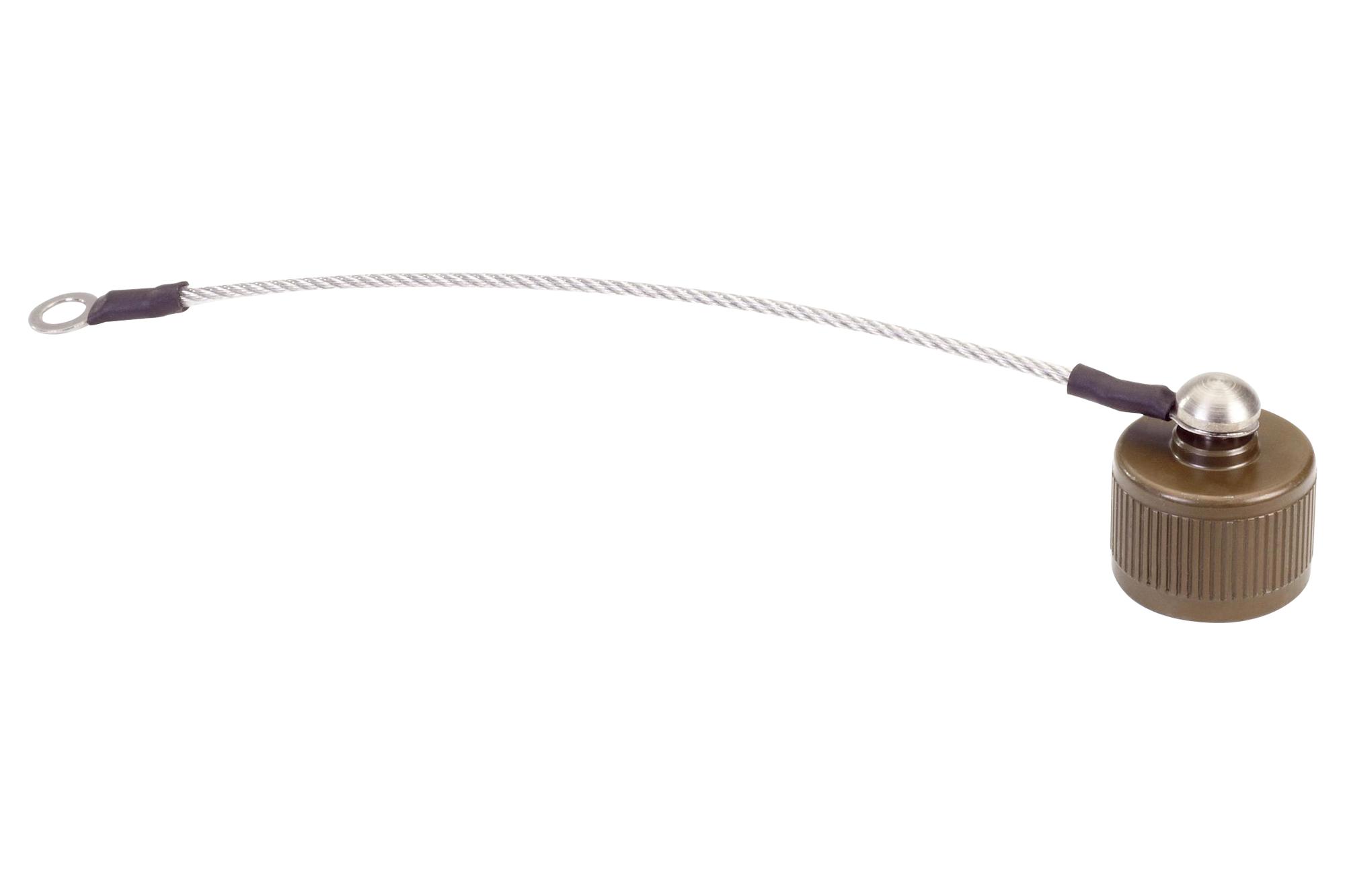

AMPHENOL PCD D3899933W13N Receptacle Dust Cover
The dust cap assembly protects MIL-DTL-38999 series III receptacles from dust, dirt, and moisture, ensuring reliable electrical connections. Made from machined aluminum alloy, it features a silicone elastomer gasket for a secure seal, stainless steel passivated ring, and stainless steel teflon-coated rope for attachment. The cap withstands environments up to 200°C, with options for various finishes including electroless nickel, zinc nickel, and black zinc nickel. Compatible with MIL-DTL-38999 series III connectors, this robust dust cover assembly is essential for maintaining connector integrity in harsh conditions, with various sizes and attachment styles available.
AMPHENOL PCD D3899933W13N Receptacle Dust Cover Specifications:
- Material: Cover - Machined Aluminium alloy, Gasket - Silicone elastomer, Ring - Stainless steel passivated, Rope - Stainless steel Teflon coated, Fastener - Stainless steel passivated or aluminum
- Environmental Resistance: Insulation withstands up to 200°C environment
- Connector Compatibility: MIL—DTL—38999 series III receptacle
- Finish Options: Electroless nickel, zinc nickel, black zinc nickel, cadmium olive drab, PTFE nickel plating, composite finishes
- Shell Size: 09, 11, 13, 15, 17, 19, 21, 23, 25
- Attachment Types: Rope, wire rope with Teflon jacket, nylon cord, sash chain, or none
- End Link Options: Solid ring, tie wrap, without end link, or none
- Dimensions: Vary by shell size, with thread diameters up to 1.500 inches, maximum dimensions 54.0 mm, minimum dimension 17.64 mm, typical weight and size for robust application
- Finish Classes: Hard anodic, cadmium olive drab, black zinc nickel, composite electroless nickel
Buy the Amphenol Series Dust Cap: D3899933W13N
Order the Amphenol D3899933W13N receptacle dust cover online today for reliable protection of MIL-DTL-38999 series III connectors. Crafted from machined aluminum alloy with a silicone elastomer gasket, it provides an effective seal against dust, moisture, and environmental hazards, ensuring your connectors remain uncompromised. The dust cap features stainless steel passivated rings and stainless steel Teflon-coated ropes for secure attachment, handling environments up to 200°C. Compatible with various sizes and finish options, it ensures long-lasting performance in demanding conditions, making it an essential accessory for military and industrial applications.
Get Amphenol D3899933W13N today—built for precision, durability, and harsh environment protection.
Frequently Asked Questions
Where can I buy AMPHENOL PCD D3899933W13N?
You can click on the BUY or RFQ button to purchase D3899933W13N from an authorized AMPHENOL PCD distributor.
How do I troubleshoot issues or seek technical support for part D3899933W13N?
You can download the D3899933W13N datasheet or visit the AMPHENOL PCD website for support.
Who is the manufacturer of D3899933W13N?
AMPHENOL PCD
