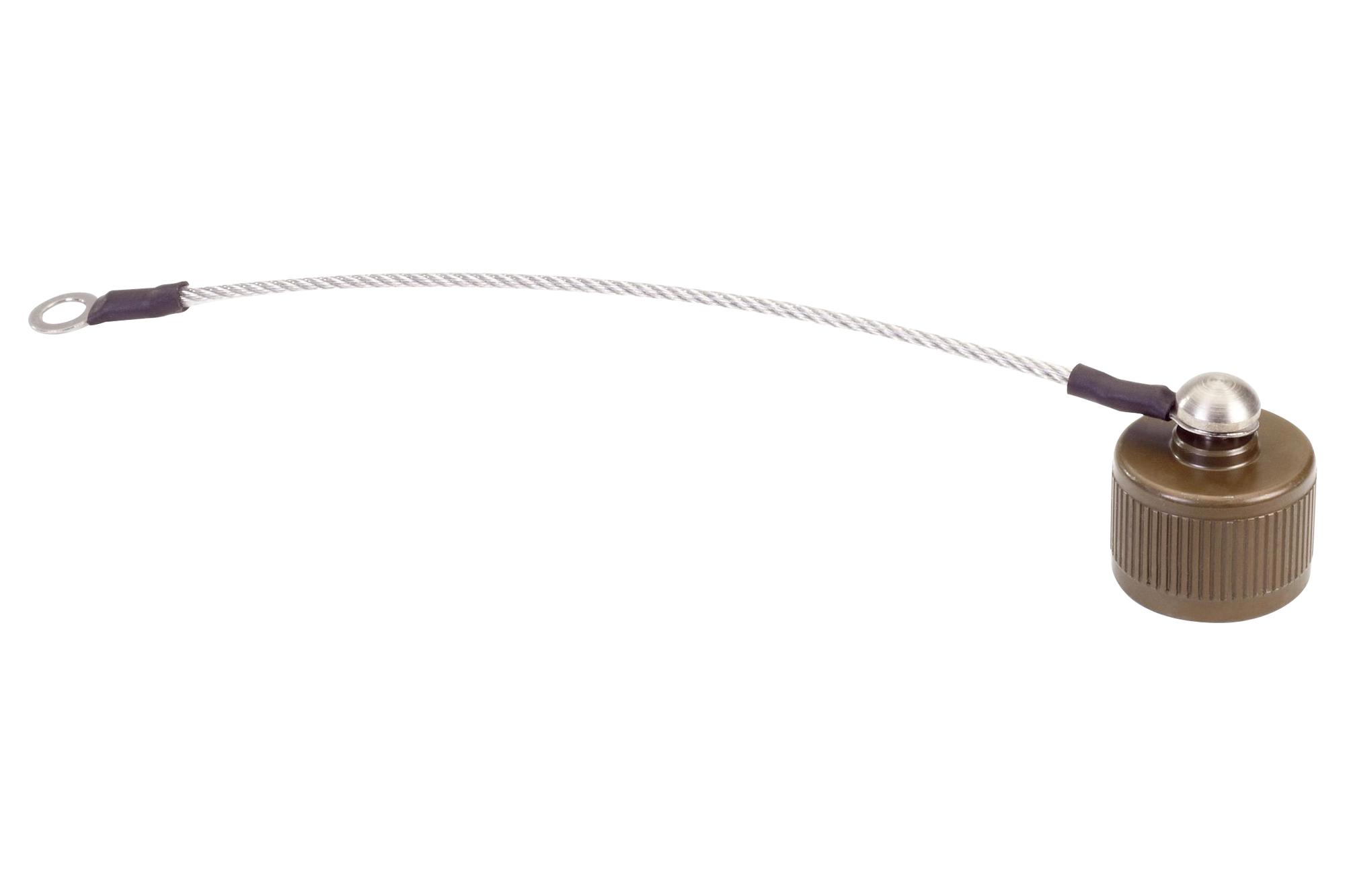

AMPHENOL PCD D3899933W15R Receptacle Dust Cover
The product is a metal dust cap assembly designed for high durability and environmental protection in industrial and military applications. Made from machined aluminium alloy with a silicone elastomer gasket and stainless steel passivated ring, it withstands environments up to 200°C. The dust cover fits MIL-DTL-38999 series III receptacles, available in multiple sizes from 09 to 25. It features optional lengths, various finishes, and attachment types like rope, nylon cord, or sash chain, ensuring secure sealing and corrosion resistance for demanding industrial and military systems.
AMPHENOL PCD D3899933W15R Receptacle Dust Cover Specifications:
- Material: Cover - Machined Aluminium alloy; Gasket - Silicone elastomer; Ring - Stainless steel, passivated; Fastener - Stainless steel, passivated
- Environmental Resistance: Insulation withstands 200°C environments
- Shell Sizes: 09, 11, 13, 15, 17, 19, 21, 23, 25
- Finish Options: F - Electroless nickel, W - Cadmium olive drab, J - Cadmium olive drab with composite, M - Electroless nickel composite, T - PTFE Nickel Plating, B - Zinc Nickel, others detailed in class options
- Attachment Types: Rope, nylon cord, sash chain, or none; Lengths vary, with options for non-standard lengths
- Mating Connector: MIL-DTL-38999 series III receptacle
- Dimensions: Sizes specified in mm, with thread diameters and maximum/minimum dimensions as per standard for each size, including threads up to 2B max
- Finish Class: Various including anodic, nickel, cadmium, zinc cobalt, black zinc nickel, and composite finishes
- Design: Designed to provide environmental sealing, corrosion resistance, and secure fit in harsh conditions
Buy the Amphenol D3899933W15R – Reliable Dust Cover for Industrial Applications
Place your order for the Amphenol D3899933W15R metal dust cover now and secure your MIL-DTL-38999 series III receptacles effectively. Crafted from machined aluminium alloy and equipped with a silicone elastomer gasket, this dust cover withstands environments up to 200°C. Available in sizes 09 to 25 with various finishes and attachment options, it ensures excellent environmental protection and corrosion resistance. Perfect for military, aerospace, and industrial applications, this dust cap guarantees durability and reliable sealing, making it a vital component for demanding systems.
Order your Amphenol D3899933W15R dust cover today and ensure optimal protection and environmental sealing for your high-reliability connectors.
