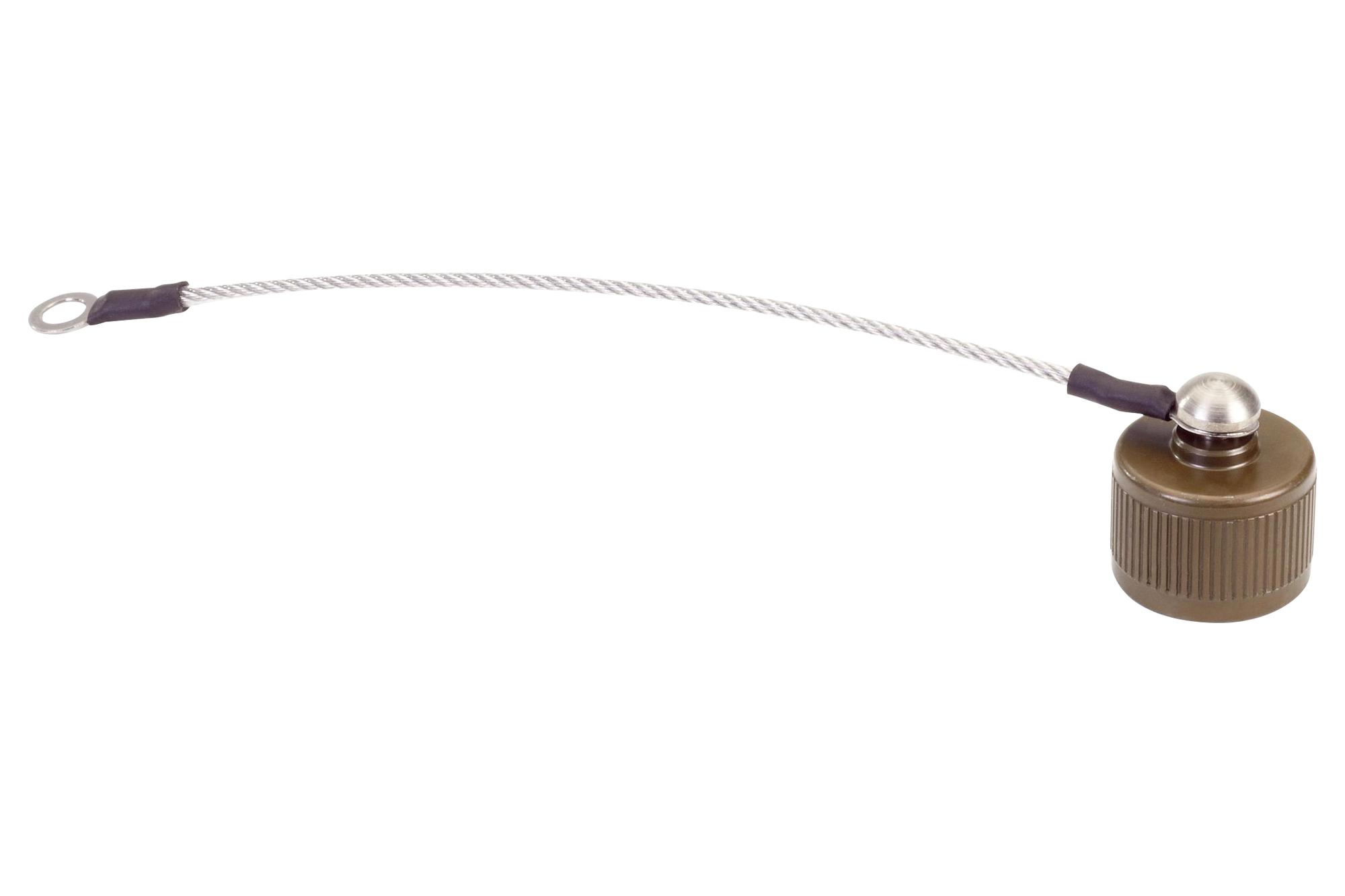

AMPHENOL PCD D3899933W19N metal dust cap
The product is a rugged, metal dust cap assembly designed for MIL-DTL-38999 series III receptacles, offering effective protection against dust, moisture, and environmental contaminants. Constructed from machined aluminum alloy with a silicone elastomer gasket and stainless steel, passivated ring, it withstands environments up to 200°C. The assembly includes stainless steel teflon-coated rope, optional aluminum attachments, and comes in various shell sizes (09 to 25). It is suitable for military, aerospace, and industrial applications demanding high durability and corrosion resistance. The cover design features multiple finishes like electroless nickel, cadmium olive drab, black zinc nickel, and more.
AMPHENOL PCD D3899933W19N metal dust cap Specifications:
- Material: Cover - machined aluminum alloy, Gasket - silicone elastomer, Ring - stainless steel passivated, Fastener - stainless steel passivated, optional aluminum.
- Temperature Resistance: Insulation withstands environment up to 200°C.
- Shell Sizes: 09, 11, 13, 15, 17, 19, 21, 23, 25.
- Finish Options: Electroless nickel, black zinc nickel, cadmium olive drab, PTFE nickel plating, and others.
- Attachment Types: Rope, nylon cord, sash chain, or none; optional end links include solid ring or tie wrap.
- Dimensions: In millimeters, with thread sizes ranging from 09 (0.625 inch) to 25 (1.625 inch), maximum diameter 54.0 mm.
- Compatibility: Receptacle designed for MIL-DTL-38999 series III connectors; features secure sealing and mechanical retention.
Buy the Amphenol D3899933W19N – Reliable Dust Cap for Industrial Applications
Order the reliable metal dust cap designed for MIL-DTL-38999 series III connectors from Amphenol today. Crafted from machined aluminum, stainless steel, and with a silicone elastomer gasket, this dust cap offers exceptional protection against dust, moisture, and high temperatures up to 200°C. It suits military, aerospace, and industrial environments demanding corrosion resistance, secure sealing, and high-quality finishes like electroless nickel, cadmium olive drab, and black zinc nickel. Secure your connectors with this durable, precision-engineered dust cover—order online now for fast, reliable delivery.
Get Amphenol D3899933W19N today—built for high durability and environmental protection in critical industries.
Frequently Asked Questions
Where can I buy AMPHENOL PCD D3899933W19N?
You can click on the BUY or RFQ button to purchase D3899933W19N from an authorized AMPHENOL PCD distributor.
How do I troubleshoot issues or seek technical support for part D3899933W19N?
You can download the D3899933W19N datasheet or visit the AMPHENOL PCD website for support.
Who is the manufacturer of D3899933W19N?
AMPHENOL PCD
