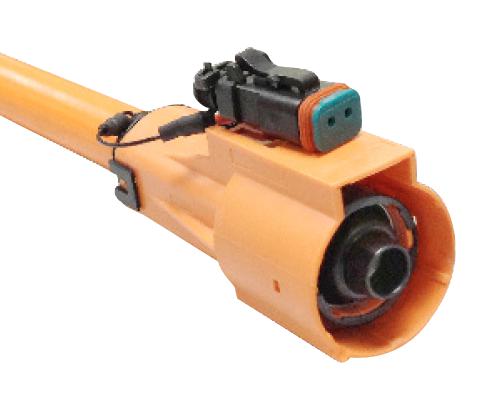

AMPHENOL PCD HVSL1000061A135 High-Voltage Connector
The HVSL 1000 series is a high-voltage, single-pole plug assembly designed for reliable electrical connections in demanding environments. Constructed with thermoplastic housing, copper alloy, and stainless steel components, it features a silicone rubber cable seal for environmental protection. Suitable for wire sizes up to 19 mm diameter, it handles voltages up to 1000 V DC and withstands up to 3000 V AC. Rated IP67 and IP6K9K, the connector is ideal for industrial automation, electrical testing, and high-voltage systems requiring robust, secure connections.
AMPHENOL PCD HVSL1000061A135 High-Voltage Connector Specifications:
- Material: Thermoplastic body UL 94V-0 Orange color
- Socket contact: Copper alloy, silver plated
- Shielding: Copper alloy, tin plated
- Ferrule: Stainless steel
- Cable seal: Silicone rubber
- Wire diameter: 25 mm, 35 mm, 50 mm, 70 mm
- Wire OD: 11.9 + 0.3 mm to 19.0 + 0.7 mm
- Voltage Rating: 1000 V DC max, withstand voltage 3000 V AC
- Current Rating: 250 A max (for 50 mm wire)
- Environmental Rating: IP67, IP6K9K, rated finger-touch-proof
- Tightening method: External interlock with self-lock tie
- Connectors conform to EN 60664-1 pollution degree II
Buy the Amphenol Series HVSL High-Voltage Connector: HVSL1000061A
Enhance your electrical systems with the high-voltage connector designed for durability and safety. The HVSL series offers robust construction, IP67/IP6K9K ratings, and maximum voltage capacity of 1000 V DC. Its copper alloy contacts and silicone rubber seal ensure long-lasting performance in harsh environments. Ideal for industrial automation, testing, and high-voltage applications, this plug assembly provides secure, reliable connections. Order online now to simplify installation and ensure high-quality electrical performance in your projects.
Buy Amphenol HVSL1000061A now and experience unmatched reliability and high-performance electrical connections for demanding industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL PCD HVSL1000061A135?
You can click on the BUY or RFQ button to purchase HVSL1000061A135 from an authorized AMPHENOL PCD distributor.
How do I troubleshoot issues or seek technical support for part HVSL1000061A135?
You can download the HVSL1000061A135 datasheet or visit the AMPHENOL PCD website for support.
Who is the manufacturer of HVSL1000061A135?
AMPHENOL PCD
