AMPHENOL PCD M8504949220N High-Performance Aerospace Connector
The MIL-DTL-38999 Series I & II high-performance cylindrical connectors are designed for demanding military and aerospace environments. Featuring a low-profile 3-point bayonet coupling, these connectors are suitable for cable-to-panel I/O applications. They support high-density insert arrangements, crimp removable contacts, PC tails, and solder cups. Manufactured with non-magnetic materials, they resist corrosion, dielectric breakdown, and maintain insulation resistance. Operating between -55°C and 175°C, they offer durability for over 500 mating cycles, low resistance, and are ideal for defense, aerospace, and industrial use.
AMPHENOL PCD M8504949220N High-Performance Aerospace Connector Specifications:
- Shell sizes range from 8 to 24 with maximum diameters between 0.62 inch (15.67 mm) and 1.75 inch (44.45 mm).
- Operating temperature range: -55°C to 175°C.
- Durability: Over 500 mating cycles.
- Voltage Drop: Maximum 2.5 millivolts.
- Materials: Non-magnetic, sealed for harsh environments.
- Resistance: Hermetic, air and gas tight, corrosion-resistant.
- Coatings: Cadmium and hexavalent chromium-free.
- Contact options include crimp, solder cups, PC tails, coax options.
- Additional features: Low shell-to-shell resistance, low outgassing, sulfur dioxide resistance (336 hours).

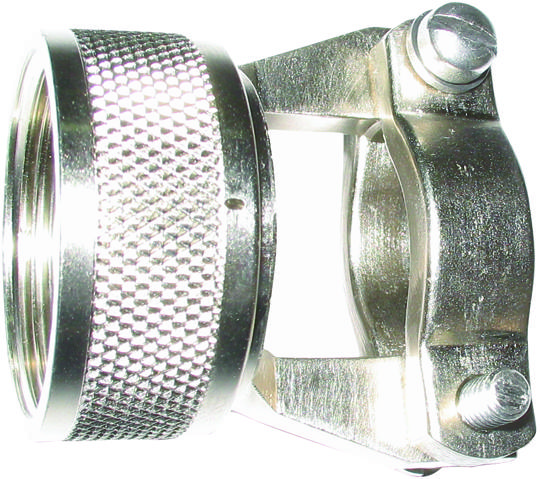

Buy the Amphenol Series MIL-DTL-38999: Part 920N
Purchase the MIL-DTL-38999 Series I & II cylindrical connectors online today for reliable, rugged performance in military, aerospace, and industrial applications. These connectors are designed to operate efficiently in extreme temperatures from -55°C to 175°C, ensuring durability and high resistance to corrosion, dielectric breakdown, and environmental stress. They support multiple contact configurations such as crimp, solder, and coax options, making installation straightforward. With over 500 mating cycles, hermetic sealing, and low outgassing, they are ideal for demanding defense, aerospace, and industrial use. Buy now for superior quality and dependable operation.
Get Amphenol MIL-DTL-38999 connectors today—built for extreme environmental applications and long-lasting performance.
Frequently Asked Questions
Where can I buy AMPHENOL PCD M8504949220N?
You can click on the BUY or RFQ button to purchase M8504949220N from an authorized AMPHENOL PCD distributor.
How do I troubleshoot issues or seek technical support for part M8504949220N?
You can download the M8504949220N datasheet or visit the AMPHENOL PCD website for support.
Who is the manufacturer of M8504949220N?
AMPHENOL PCD
