AMPHENOL PCD M8504952118A MIL Connector
The connector complies with MIL-DTL-26482 Series 2, MIL-DTL-5015 Matrix MS345X, and MIL-DTL-83723 Series II bayonet coupling standards. It features a crimp rear release contact system, a closed entry socket with a lead-in chamfer, and a hard face designed for bent pin contacts within specified limits. An elastomer interfacial seal with raised barriers provides moisture protection, with contact insertion/removal from the rear to avoid damage. The medium-sized, environmentally resistant connector supports up to 1000VAC, offering quick bayonet coupling, a key/keyway design for mating safety, ideal for industrial, defense, and aerospace applications.
AMPHENOL PCD M8504952118A MIL Connector Specifications:
- MIL-DTL-26482 Series 2 compliant
- MIL-DTL-5015 Matrix (MS345X) compatible
- MIL-DTL-83723 Series II bayonet coupling
- Crimp rear release contact system
- Closed entry socket with lead-in chamfer
- Hard face contact for bent pin contacts
- Elastomer interfacial seal with raised barriers
- Moisture resistant, environmentally sealed
- Maximum operating voltage: 1000VAC (rms)
- Supports various wire diameters with triple webbed grommet
- Medium size, corrosion resistant
- Visual confirmation of full bayonet coupling
- Key/keyway prevents mismating
- Material: high-grade metals and elastomers
- Temperature Range: -55°C to +125°C
- Applications include industrial, military, aerospace sectors

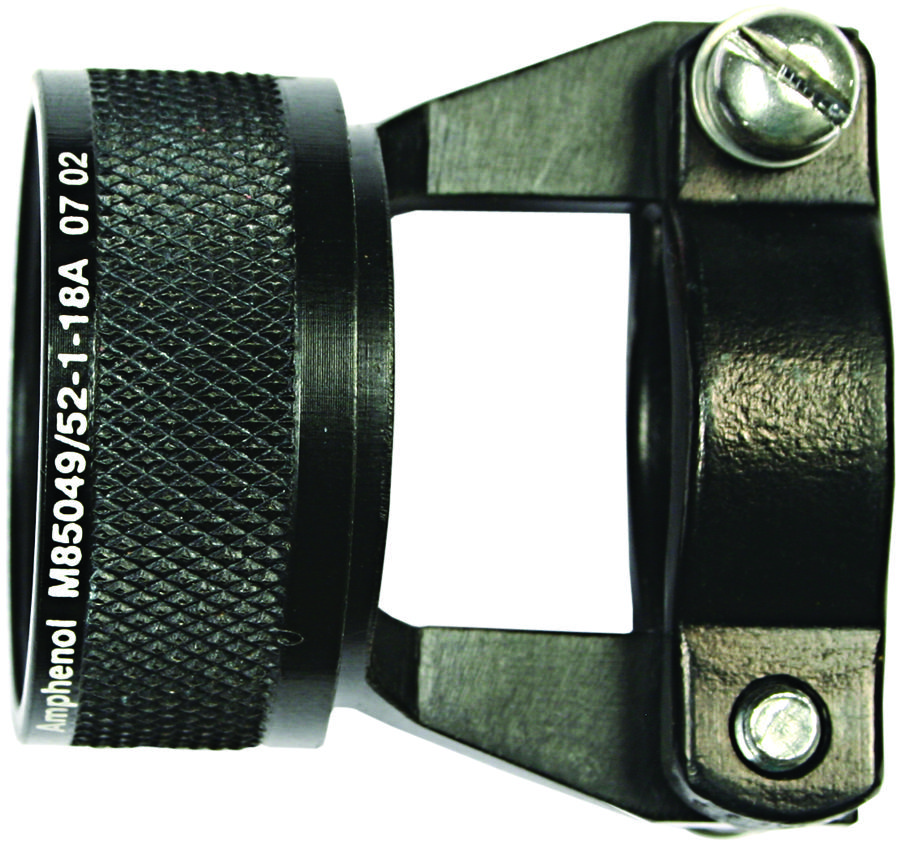

Buy the Buy Amphenol MIL Connector Part Number M8504952118A Online
Purchase the Amphenol MIL connector online today. Designed for high reliability in military, aerospace, and industrial environments, it features a bayonet coupling for quick engagement, rear contact release for easy maintenance, and superior moisture sealing. Made from durable materials, it supports voltages up to 1000VAC and is resistant to corrosion and extreme temperatures. Ensure your project’s safety and performance by choosing this medium-sized connector with key/keyway design to prevent mismating. Fast, secure, and built for long-term use.
Get Amphenol M8504952118A today—built for precision, durability, and quick bayonet coupling in demanding industrial and aerospace applications.
Frequently Asked Questions
Where can I buy AMPHENOL PCD M8504952118A?
You can click on the BUY or RFQ button to purchase M8504952118A from an authorized AMPHENOL PCD distributor.
How do I troubleshoot issues or seek technical support for part M8504952118A?
You can download the M8504952118A datasheet or visit the AMPHENOL PCD website for support.
Who is the manufacturer of M8504952118A?
AMPHENOL PCD
