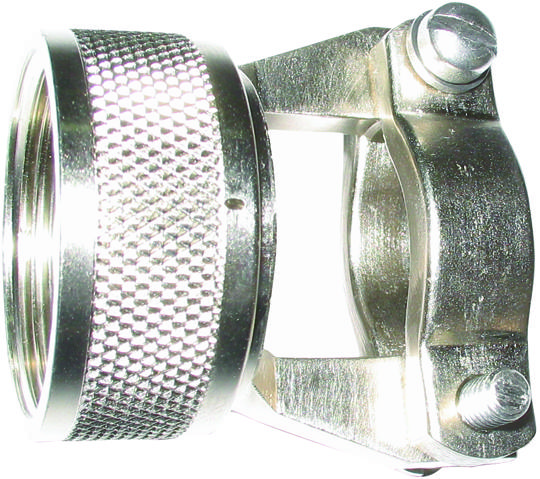

AMPHENOL PCD M8504952S16N MIL Connector
This medium-sized, environmentally resistant MIL-DTL-26482 Series 2, MIL-DTL-5015 Matrix MS345X, and MIL-DTL-83723 Series II bayonet coupling connector with crimp rear release contacts features a sealed socket-side insert with a lead-in chamfer and a hard face for pin contact acceptance. An elastomer interfacial seal with raised barriers ensures moisture protection when mated. Rear contact insertion/removal prevents seal damage and uses a qualified plastic tool. It includes a triple webbed grommet for various wire diameters, suitable for industrial, defense, military, and aerospace uses up to 1000VAC (rms). Quick coupling with visual confirmation and key/keyway design prevents mismating.
AMPHENOL PCD M8504952S16N MIL Connector Specifications:
- Series: MIL-DTL-26482 Series 2, MIL-DTL-5015, MIL-DTL-83723 Series II
- Voltage Rating: Up to 1000VAC (rms) at sea level
- Sealing: Elastomer interfacial seal with raised barriers
- Contact: Crimp rear release contacts
- Key/Keyway: Prevents mismating
- Insertion/Removal: Rear operation, damage prevention
- Material: Qualified plastic, durable construction
- Operating Environment: Military, aerospace, industrial
- Application: Sealed, quick coupling for wiring
- Size: Medium-sized, multi-wire compatible
- Coupling mechanism: Three-point bayonet system
- Inspection: Visual confirmation of proper mating
Buy the Amphenol Series MIL-DTL-26482 Connector: M8504952S16N
Order the Amphenol MIL connector M8504952S16N online today and ensure your military, aerospace, and industrial projects benefit from high-quality, sealed, and reliable connections. With a robust bayonet coupling system, moisture-resistant seals, and a design compatible with various wire diameters, this connector guarantees excellent performance in demanding environments. Its quick, positive locking mechanism provides ease of use with visual confirmation, preventing mismating. Secure your wiring solutions now with this durable, military-standard connector for maximum operational reliability and safety.
Buy Amphenol M8504952S16N connector now and experience unmatched reliability and performance for military-grade, aerospace, and industrial wiring solutions.
Frequently Asked Questions
Where can I buy AMPHENOL PCD M8504952S16N?
You can click on the BUY or RFQ button to purchase M8504952S16N from an authorized AMPHENOL PCD distributor.
How do I troubleshoot issues or seek technical support for part M8504952S16N?
You can download the M8504952S16N datasheet or visit the AMPHENOL PCD website for support.
Who is the manufacturer of M8504952S16N?
AMPHENOL PCD
