AMPHENOL PCD MINIMSDF000R Battery Service Disconnect
The Mini MSD is a compact, reliable battery manual service disconnect designed for PHEV systems. It features a two-stage lever providing HVIL timing, integrated internal HVIL, and a unique cooling structure. The device is front or rear mounted, tool-free to disconnect, and withstands up to 50 mating cycles depending on fuse rating. Suitable for high voltage applications up to 690V AC and 170A current, with IP67 sealing and operating temperatures from -40°C to 70°C. It complies with USCAR-2, USCAR-37, LV-215 standards and RoHS regulations for safe, durable hybrid vehicle servicing.
AMPHENOL PCD MINIMSDF000R Battery Service Disconnect Specifications:
- Current Rating: 170A
- Voltage Rating: 600V to 690V AC, 1500V DC max
- Sealing: IP67, IP6K9K (mated)
- Operational Temperature: -40°C to 70°C
- Storage Temperature: -40°C to 85°C
- Mating Cycles: 50 based on fuse selected
- Dimensions front mounted: 84.8 mm x 86.0 mm; rear mounted: 98.0 mm x 91.0 mm
- Fuse Ratings: various including 170A
- Standards: USCAR-2, USCAR-37, LV-215, RoHS
- Material: Durable plastic enclosure with finger-proof interface
- Application: Servicing PHEV high-voltage battery systems
- Construction: Double channel cooling design, integrated HVIL system
- Mounting Options: Front or rear mounting
- Tail Length: varies for different models
- Environmental Resistance: Salt spray, vibration resistant

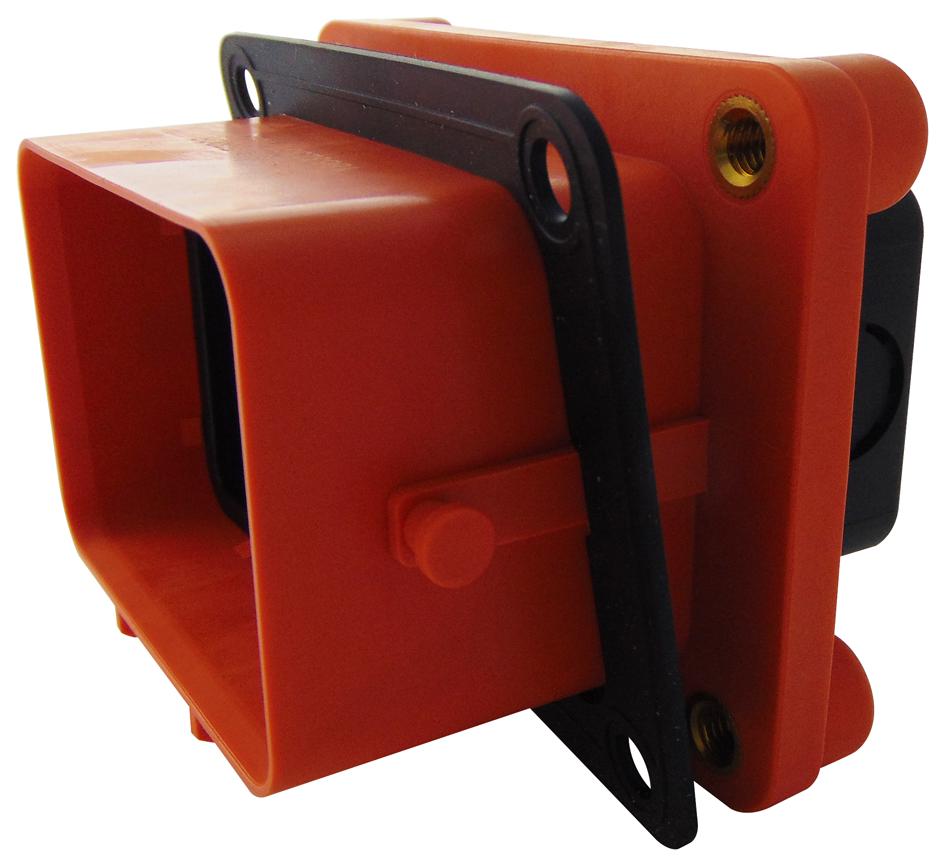

Buy the Buy TRUSTED GLOBALLY Mini MSD Part Number MINEMSDF000R Online
Purchase the trusted Mini MSD for efficient PHEV battery servicing today. This compact disconnect features integrated HVIL, multiple fuse ratings, and IP67 sealing for reliable connections. Easily mounted front or rear, it ensures safety and durability during high-voltage maintenance. Designed to withstand harsh environments with operating temperatures from -40°C to 70°C, it offers up to 50 mating cycles based on fuse type. Upgrade your PHEV servicing toolkit with this durable, tool-free disconnect that simplifies high voltage battery handling.
Get TRUSTED GLOBALLY Mini MSD today—compact, reliable, and designed for long-lasting durability in PHEV servicing.
