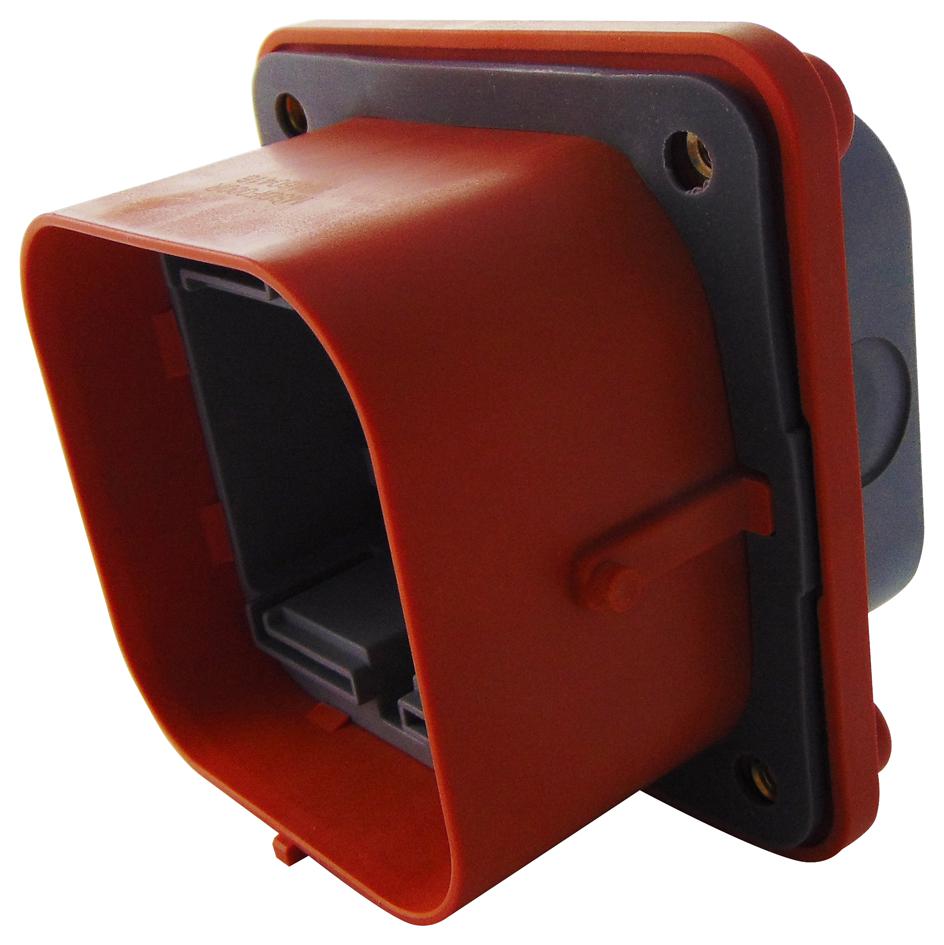

AMPHENOL PCD MSDF000F Battery Service Disconnect
The Mini MSD is a compact, cost-effective battery manual service disconnect designed for PHEV systems. It features a two-stage lever that provides HVIL timing and integrated internal HVIL for added safety. The device uses a unique cooling structure and double channel design to lower temperature rise, with no tools required for unmate. It supports various fuse ratings, with a current rating of 170A and a voltage rating up to 1500V DC. Sealed IP67 and rated for durability with multiple mounting options, this model meets industry standards including USCAR-2, USCAR-37, and RoHS, ensuring reliable high-voltage disconnection during servicing.
AMPHENOL PCD MSDF000F Battery Service Disconnect Specifications:
- Fuse Ratings: 170A, 600V to 690V AC, 1500V DC max
- Material: IP67 sealed, IP6K9K mated
- Temperature Range: -40°C to 70°C, Storage: -40°C to 85°C
- Durability: 50 mating cycles based on fuse selected
- Mechanical: Compact size, front or rear mounted, no tools required for unmate
- Dimensions: Front mounted - 84.8mm x 86.0mm, Rear mounted - 84.8mm x 86.0mm
- Standards: USCAR-2, USCAR-37, LV-215, RoHS compliant
