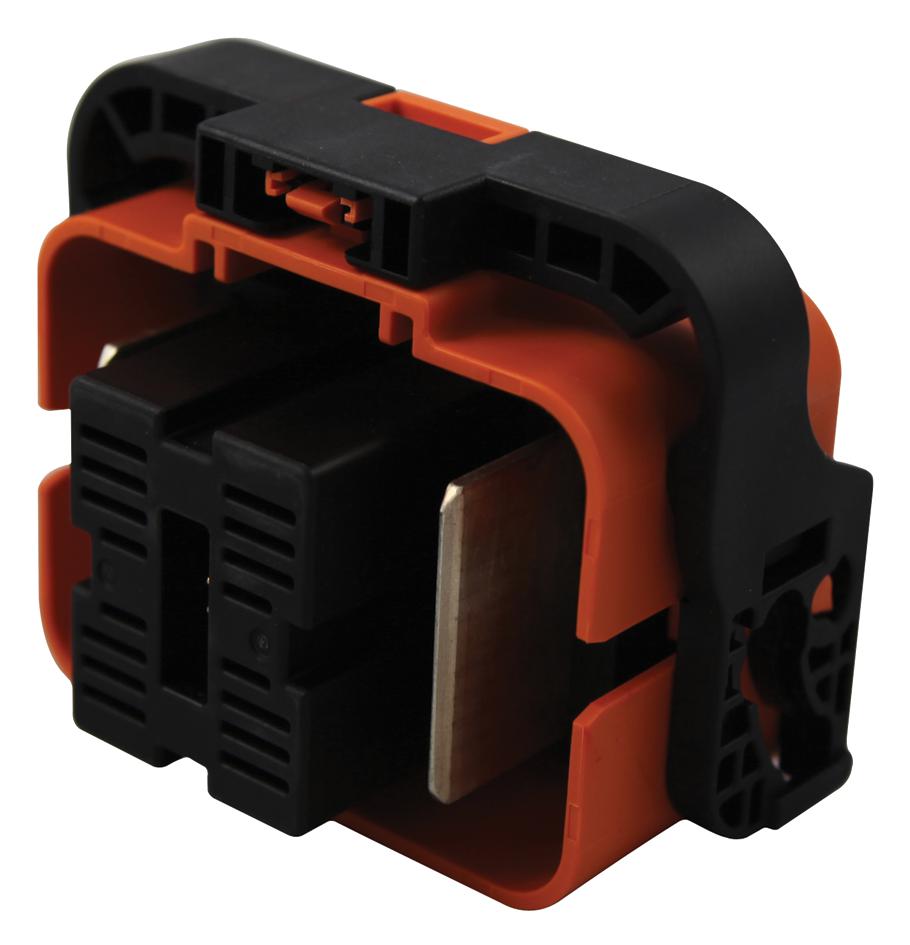

AMPHENOL PCD MSDM5002 High-Voltage Service Disconnect
The MSD is a high-voltage manual service disconnect designed for PHEV systems, featuring a two-stage lever to open the HVIL circuit before separating HV contacts. It offers finger-proof touch safety on all HV conduction surfaces and is available in a scalable design with various fuse ratings. The product includes integrated internal HVIL, a unique cooling structure, double channel design to lower temperature, and no tools required for unmate. Suitable for front or rear mounting, it meets rigorous environmental and safety standards, ensuring durability and reliable high-voltage disconnect functionality.
AMPHENOL PCD MSDM5002 High-Voltage Service Disconnect Specifications:
- Current Rating: 230A
- Voltage Rating: 690V AC, 1000V DC max
- Sealing: IP67, IP6K9K (mated)
- Operational Temperature Range: -40°C to 70°C
- Storage Temperature: -40°C to 85°C
- Mating Cycles: 50
- Dimensions: Length 103.0 mm, Width 110.0 mm, height 84.8 mm for standard model
- Fuse Ratings: various, scalable design
- Mounting Options: front or rear
- Standards: USCAR-2, USCAR-37, LV-215, RoHS Compliant
- Mechanical Durability: 50 mating cycles
- Environmental Resistance: sealed against moisture and dust, withstands harsh conditions
