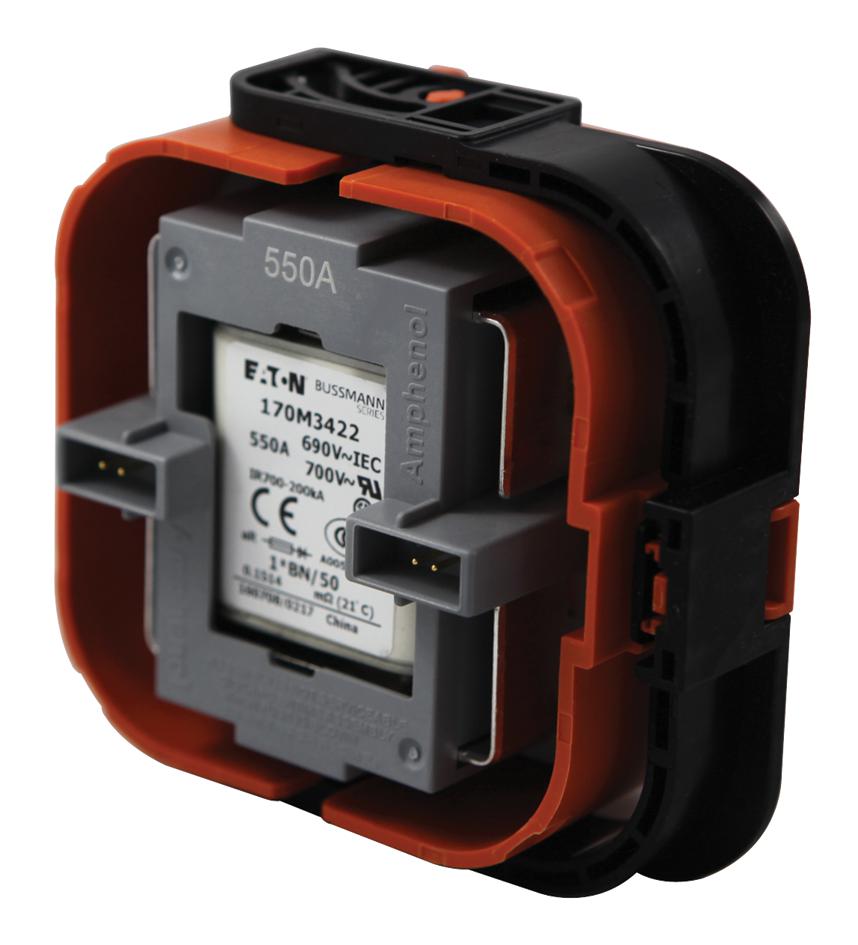

AMPHENOL PCD MSDM5502 Battery Disconnect Switch
The MSD is a battery manual service disconnect designed for PHEV systems, featuring a two-stage lever to open the HVIL circuit before high voltage contact separation. It offers a tool-free, finger-proof touch safe design with scalable fuse ratings and front or rear mounting options. The Mini MSD variant is more compact and cost-effective, with similar features including a two-stage lever, integrated HVIL, and durable construction suitable for professional servicing. Both models support high voltage ratings up to 690V AC and 1500V DC, with robust environmental sealing and compliance with industry standards.
AMPHENOL PCD MSDM5502 Battery Disconnect Switch Specifications:
- Current rating: 230A for MSD, 170A for Mini MSD
- Voltage rating: 1000V DC for MSD, 1500V DC for Mini MSD
- Sealing: IP67, IP6K9K (mated)
- Temperature Range: -40°C to 70°C (operating), -40°C to 85°C (storage)
- Number of mating cycles: 50 for Mini MSD, 100 for MSD
- Dimensions: MSD - 103.0 x 84.8 mm; Mini MSD - 29.5 x 40.5 mm
- Mounting: Front (F) or Rear (R)
- Standards: USCAR-2, USCAR-37, LV-215, RoHS compliance
- Environmental: Robust, finger-proof touch surfaces
- Design features: Two-stage lever HVIL, double channel cooling, scalable fuse ratings
- Application: Servicing PHEV high voltage systems
