AMPHENOL PCD RJF67A1ZN Industrial Ethernet Connector
This industrial Ethernet connection system is designed for harsh environments, compliant with IEC 60603-7, featuring IP68 sealing, durable metallic shells, and shock, vibration, and traction resistance. It supports 10/100/1000 BaseT networks with easy, tool-free field assembly, mechanical polarization, and compatibility with cable diameters from 6 mm to 13 mm. Ideal for robotics, process control, CNC machines, oil & gas, and outdoor equipment, it ensures reliable data transmission and environmental protection with salt spray and thermal shock resistance.
AMPHENOL PCD RJF67A1ZN Industrial Ethernet Connector Specifications:
- Sealing: IP68, sealed against dust and fluids
- Shell types: metallic shells based on MIL-DTL-26482 H, sizes 18 and 26
- Supported networks: 10 BaseT, 100 BaseTX, 1000 BaseT
- Vibration resistance: 10-500Hz, 20g, 3 axes
- Shock resistance: IK06, drop from 40cm with 250g weight
- Temperature range: -40°C to +85°C, storage -40°C to +85°C
- Cabling compatibility: diameter from 6 mm to 13 mm, special smaller diameters available
- Mating cycles: 500 min, retention force: 100 N axial
- Salt spray resistance: 48h with nickel plating, 96h with black coating, 500h with olive drab cadmium
- Fire retardant/Low smoke: UL94 VO, NF F 16 101 & 102
- Humidity: 21 days at 43°C, 98% humidity
- Thermal shock: 5 cycles at -40°C / +100°C
- Data transmission: Ethernet at 10/100/1000BaseT, according to TIA/EIA 568B and ISO/IEC 11801

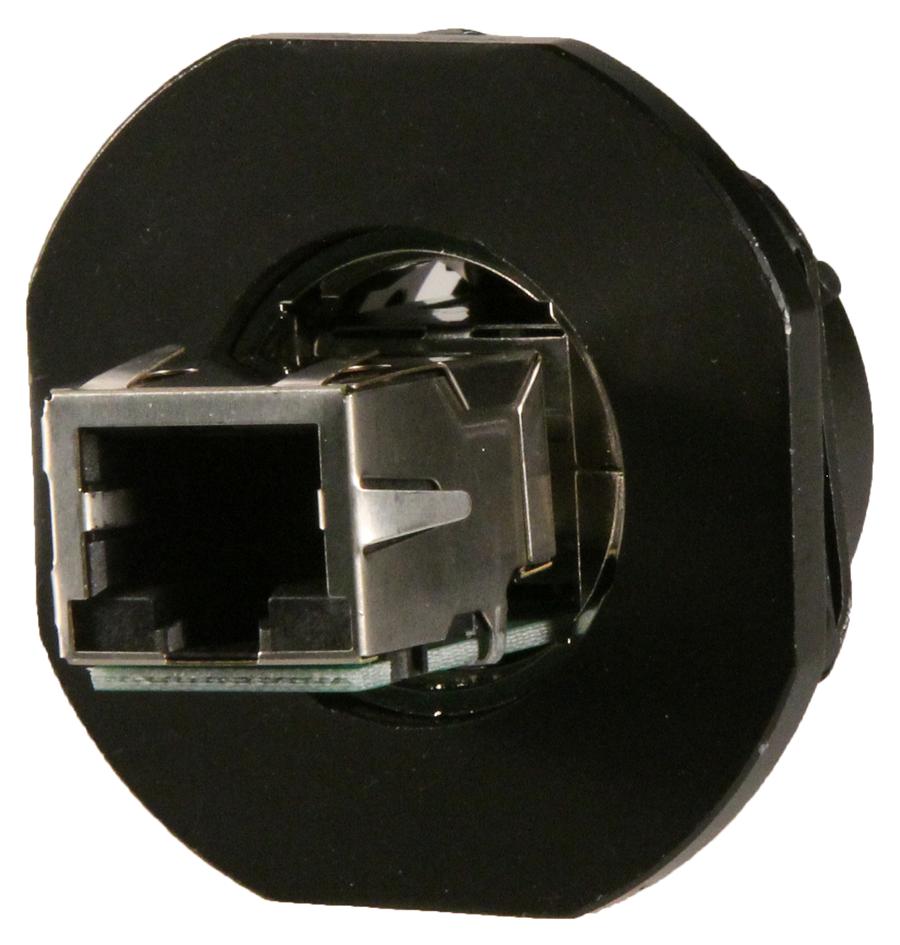

Buy the Buy Amphenol Ethernet Connection System Part Number RJF67A1ZN Online
Discover the high-quality industrial Ethernet connector designed for harsh environments, offering IP68 sealing, durable metallic shells, and easy tool-free installation. Supports 10/100/1000 BaseT networks with excellent vibration, shock, and thermal resistance. Perfect for robotics, process control, and outdoor equipment, this connector guarantees reliable data transmission and environmental protection. Easily compatible with cables from 6mm to 13mm, it ensures robust performance with salt spray, thermal shock, and vibration resistance for demanding industrial applications. Purchase now for dependable connectivity.
Buy Amphenol RJF67A1ZN now and experience unmatched reliability and performance in harsh industrial environments.
