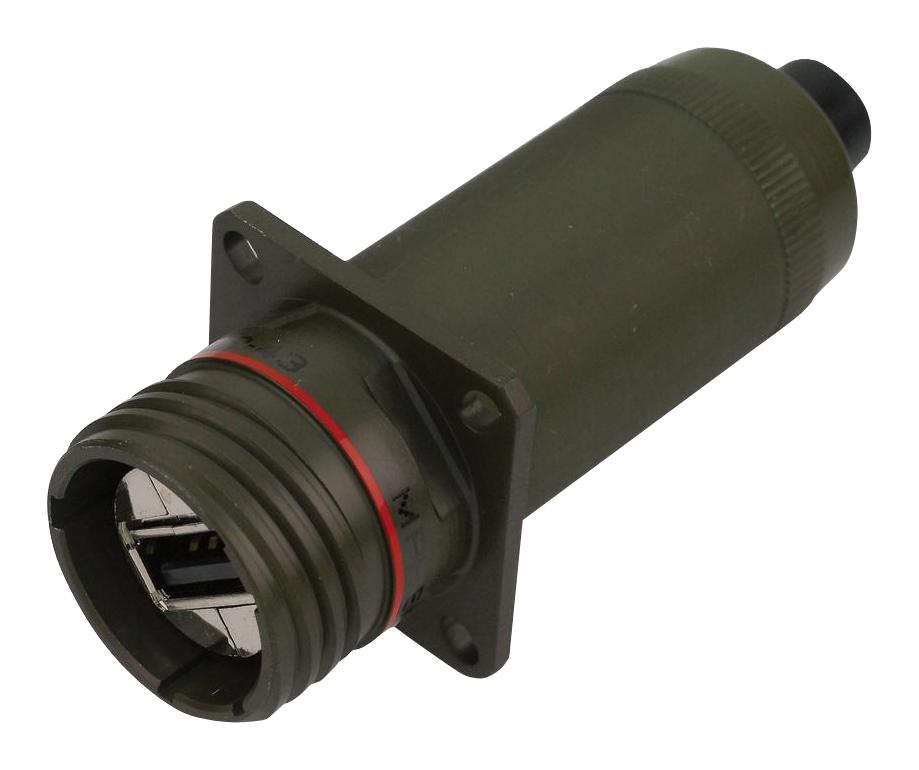

AMPHENOL PCD USBFTV2PE2G USB Sealed Receptacle
The USBFTV2PE2G is a rugged, sealed USB 2.0 transversally sealed receptacle designed for harsh environments, including aerospace, military, and industrial applications. It features IP68 waterproof and dustproof sealing, shock and vibration resistance, and a MIL-DTL-38999 type coupling with anti-decoupling device. Suitable for embedded computer systems, data acquisition, railway, naval, and battlefield communications, it supports high-speed data transfer up to 480 Mb/s, with excellent EMI protection, easy field installation, and durable construction for reliable operation in extreme conditions.
AMPHENOL PCD USBFTV2PE2G USB Sealed Receptacle Specifications:
- Sealing: IP68 (Dustproof and waterproof up to temporary immersion)
- Data Rate: Up to 480 Mb/s at High Speed USB 2.0
- Operating Temperature Range: -40°C to +85°C
- Vibration Resistance: MIL-STD-810F, 10-500 Hz, 10 g
- Shock Resistance: Drop test from 40 cm with 250 g weight
- Mating Cycles: 500 to 1500
- Connector Type: Transversally sealed receptacle with MIL-DTL-38999 coupling
- Shell Material: Nickel or Olive Drab Cadmium plated metal
- Cable Compatibility: Standard USB-A plug connection
- Environmental Resistance: Salt spray for 48 hours, humidity 21 days at 43°C, UL94 VO flame retardant
- Dimensions: Compatible with standard PCB panel drilling (specific layout), size approximately 22.13 mm diameter
- Connector Insertion Force: 40 N after 500 cycles, Disconnection Force: 55 N after 500 cycles
Buy the Amphenol USBFTV2PE2G – Reliable Sealed USB 2.0 Receptacle for Industrial Applications
Order the rugged USBFTV2PE2G sealed USB 2.0 receptacle online today and ensure dependable high-speed data transfer in extreme conditions. Its IP68 waterproof and dustproof design, shock/vibration resistance, and MIL-DTL-38999 coupling make it ideal for military, aerospace, and industrial use. Easy to install without tools and with excellent EMI shielding, this durable connector guarantees long-term operational reliability. Secure your data acquisition, embedded computing, or communication system now by choosing this high-performance, reliable solution from trusted manufacturers.
Buy Amphenol USBFTV2PE2G now and experience unmatched reliability and performance in harsh environments with IP68 protection and MIL-DTL-38999 coupling.
Frequently Asked Questions
Where can I buy AMPHENOL PCD USBFTV2PE2G?
You can click on the BUY or RFQ button to purchase USBFTV2PE2G from an authorized AMPHENOL PCD distributor.
How do I troubleshoot issues or seek technical support for part USBFTV2PE2G?
You can download the USBFTV2PE2G datasheet or visit the AMPHENOL PCD website for support.
Who is the manufacturer of USBFTV2PE2G?
AMPHENOL PCD
