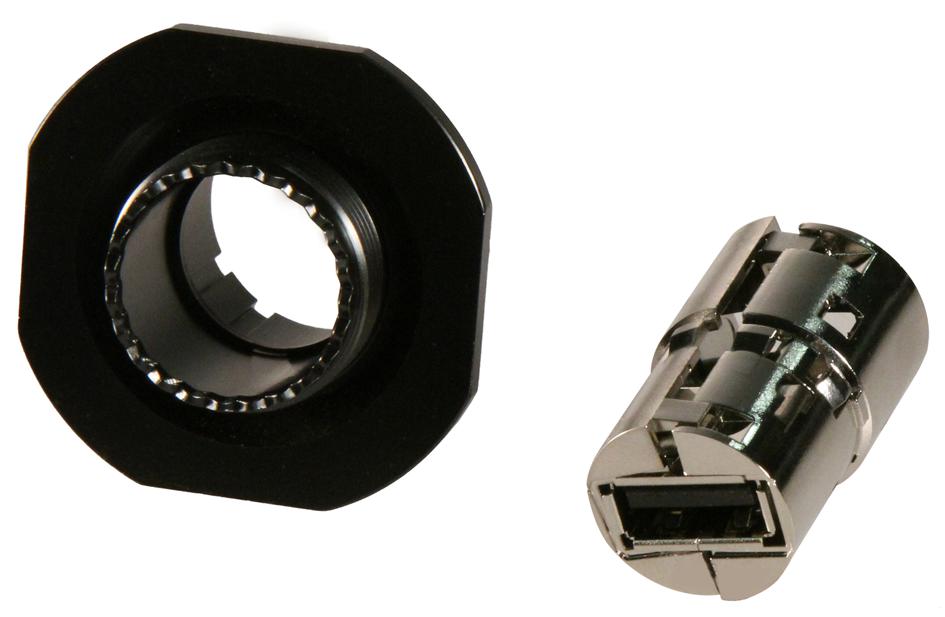

AMPHENOL PCD USBFTV72ZN Rugged USB Connector
The USB Field connector facilitates secure USB 2.0 connections in harsh environments by converting standard USB cordsets into rugged, sealed connectors. Equipped with a MIL-DTL-38999 series III threaded coupling and anti-decoupling device, it offers reliable high-vibration performance. Its IP68 sealing protects against dust, fluids, shocks, vibrations, and tension, making it ideal for demanding environments such as aerospace, military, and industrial fields. Its EMI shielding reduces interference, ensuring optimal data transmission up to 480 Mb/s. Quick, tool-free assembly simplifies installation in field conditions, providing a robust and effective connectivity solution.
AMPHENOL PCD USBFTV72ZN Rugged USB Connector Specifications:
- USB Specification: 2.0
- Data Rate: Up to 480 Mbps
- Sealing: IP68 (dust and waterproof)
- Mechanical: MIL-DTL-38999 series III coupling, anti-decoupling device
- Vibration Resistance: 10 - 500 Hz, 10 g, no discontinuity over 3 axes
- Shock Resistance: 250 g drop from 40 cm (15.75 in), 500 hours salt spray with Nickel plating
- Temperature Range: -55°C to +85°C
- Mating Cycles: 500 to 1500
- Material: Metal shell, plated for EMI shielding
- Flammability: UL94 VO, NF F 16 101 & 16 102
- Humidity Resistance: 21 days at 43°C, 98% humidity
- Connector: USB-A, with optional solder or receptacle back termination
- Suitable For: Data transmission, military, aerospace, industrial and computer systems
- Assembly: Tool-less, with optional sealing gaskets and protective caps
Buy the Amphenol Series USBF TV: USB2.0 Harsh Environment Connector
Enhance your system’s durability with the rugged USB Connector designed by Amphenol for demanding environments. This sealed USB 2.0 connector offers IP68 protection, resilient against dust, water, shocks, and vibrations. Its quick assembly without tools makes field installation straightforward, saving time and effort. Ideal for aerospace, military, industrial, and data transmission applications, it ensures reliable high-speed data transfer up to 480 Mbps. Trust this robust connector to maintain optimal performance in extreme environmental conditions while providing EMI shielding for interference-free operation.
Order your Amphenol Series USBF TV sealed USB 2.0 connector today and secure reliable high-speed data transmission in the toughest environments.
Frequently Asked Questions
Where can I buy AMPHENOL PCD USBFTV72ZN?
You can click on the BUY or RFQ button to purchase USBFTV72ZN from an authorized AMPHENOL PCD distributor.
How do I troubleshoot issues or seek technical support for part USBFTV72ZN?
You can download the USBFTV72ZN datasheet or visit the AMPHENOL PCD website for support.
Who is the manufacturer of USBFTV72ZN?
AMPHENOL PCD
