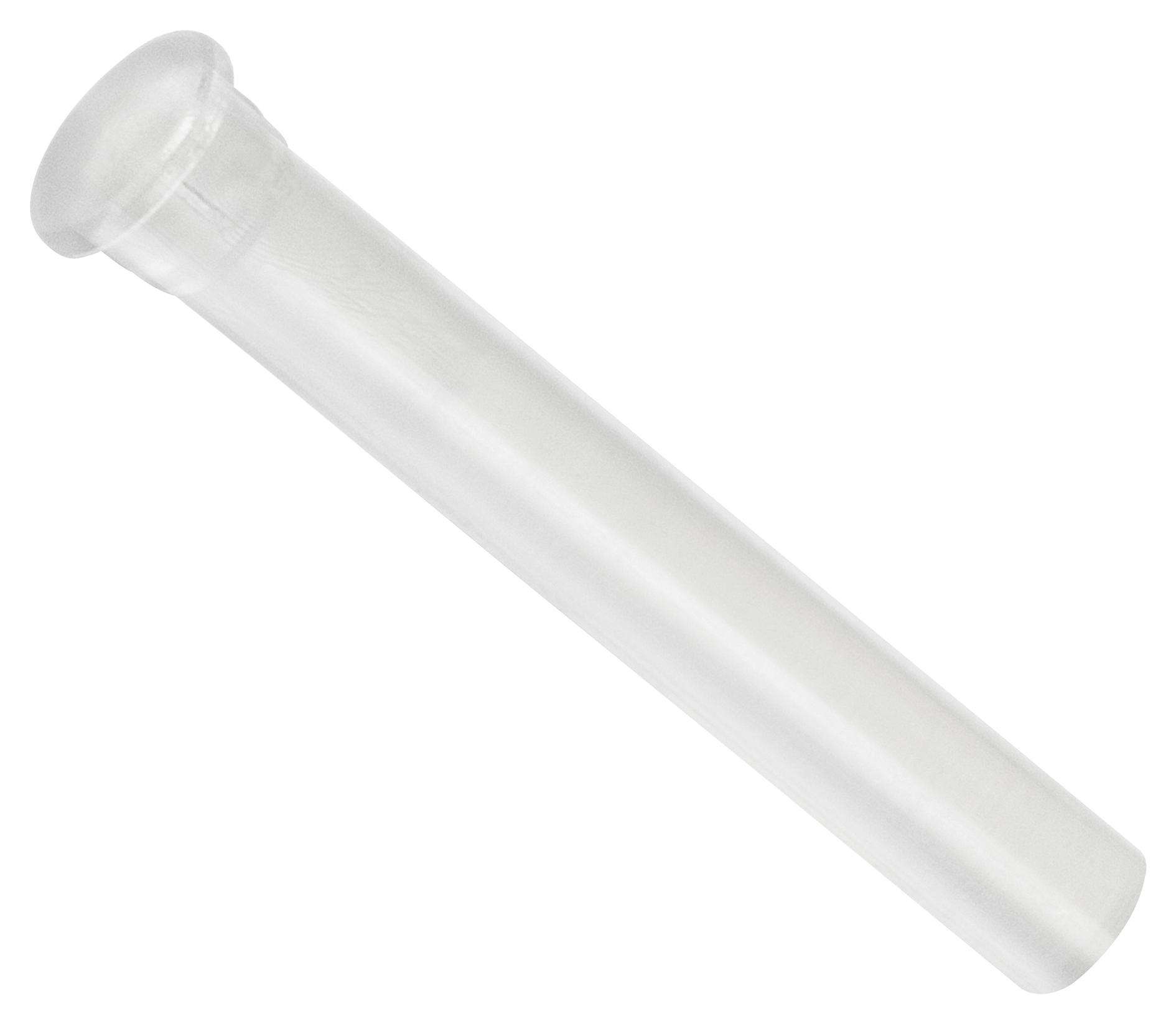

DIALIGHT 51513510125F Panel Mount Light Pipe
Dialight Optopipe panel mount light pipes offer a cost-effective solution for front panel indication, particularly when the PCB is parallel to the front panel. These light pipes, molded from ROHS compliant UL94-V0 water clear polycarbonate, ensure optimal viewing angles with options for flat, convex, and domed lenses. They are designed for easy installation with a press-fit mechanism and are ideally suited for use with Dialight surface mount LEDs, providing a reliable and efficient indication system for various industrial applications.
DIALIGHT 51513510125F Panel Mount Light Pipe Specifications:
- Mounting Hole Size: 0.156"± 0.002"
- Min Panel Thickness: 0.040" (1 mm)
- Operating Temp: -40°C to +100°C
- Storage Temp: -40°C to +100°C
- Lens Styles: Flat, Convex, Domed
- Material: ROHS compliant UL94-V0 water clear polycarbonate
- Oxygen Index: 35%
- Lens Shape: Flat
- Length: 0.125" (3.20)
- Finish: SPI A1
- Dim A: 0.125" (3.20)
- Diffused: Yes
- Surface Draft: Yes
- Major Diameter: 0.197"
- Minor Diameter: 0.162" ± 0.002"
- Mounting Hole Diameter: 0.156" ± 0.002"
- Ribs: 4 ribs spaced 90° apart (0.26–0.50)
