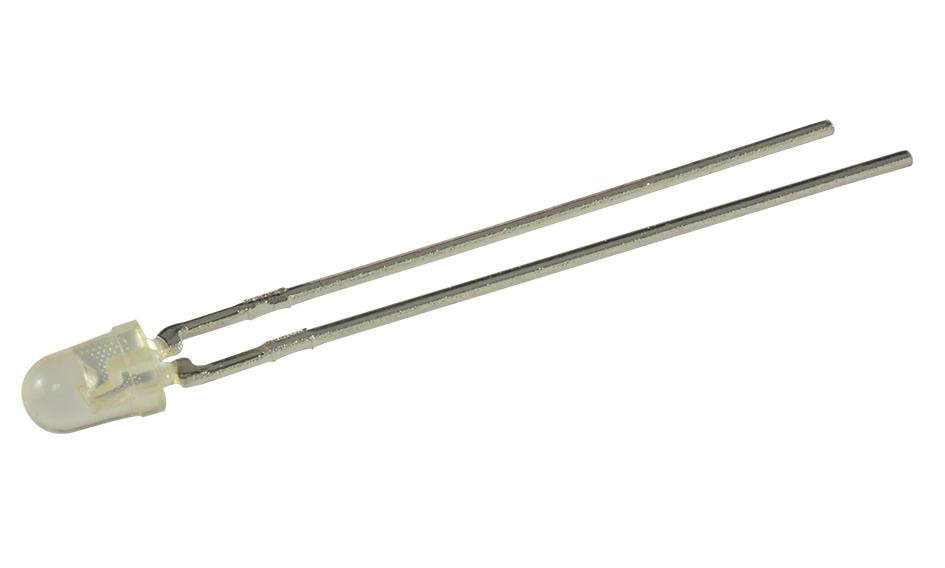

DIALIGHT 5218133F 3mm Low Current LED
The DIALIGHT 521-8133F is a 3mm low-current LED designed for various applications requiring a compact and efficient light source. It features a diffused white lens, providing a softer and more uniform light distribution. With a forward voltage typically around 2.1V and a maximum forward current of 30mA, this LED is suitable for battery-powered devices and applications where power consumption is a critical factor. It is ROHS compliant and operates reliably within a wide temperature range, making it suitable for both indoor and outdoor environments.
DIALIGHT 5218133F 3mm Low Current LED Specifications:
- Series: 521
- Configuration: 3mm Lens
- Description: 3mm Low Current LED
- Package Options: Bulk Packaging
- Lamp Type: Single Color
- Lens Color: White Diffused
- Forward Current (ma): 30mA
- Reverse Current: 100 @ Vr = 5V
- Forward Current Pulsed: 30mA
- Reverse Voltage: 5V
- Solder Temperature: 260° for 5 sec
- Operating Temperature: -25°C to +60°C
- Storage Temperature: -30°C to +100°C
- Color: Green
- Luminous Intensity Min: 38.0
- Luminous Intensity Typical: 58.0
- Luminous Intensity Max: 85.0
- Forward Voltage Min: 1.9
- Forward Voltage Typical: 2.1
- Forward Voltage Max: 3.0
- Dominant Wavelength Min: 527
- Dominant Wavelength Typical: 531
- Dominant Wavelength Max: 535
- Power Dissipation Max: 120mW
Buy the 521-8133F DIALIGHT 3mm Low Current LED | myMectronic
Purchase the DIALIGHT 521-8133F securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 5218133F?
You can click on the BUY or RFQ button to purchase 5218133F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 5218133F?
You can download the 5218133F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 5218133F?
DIALIGHT
