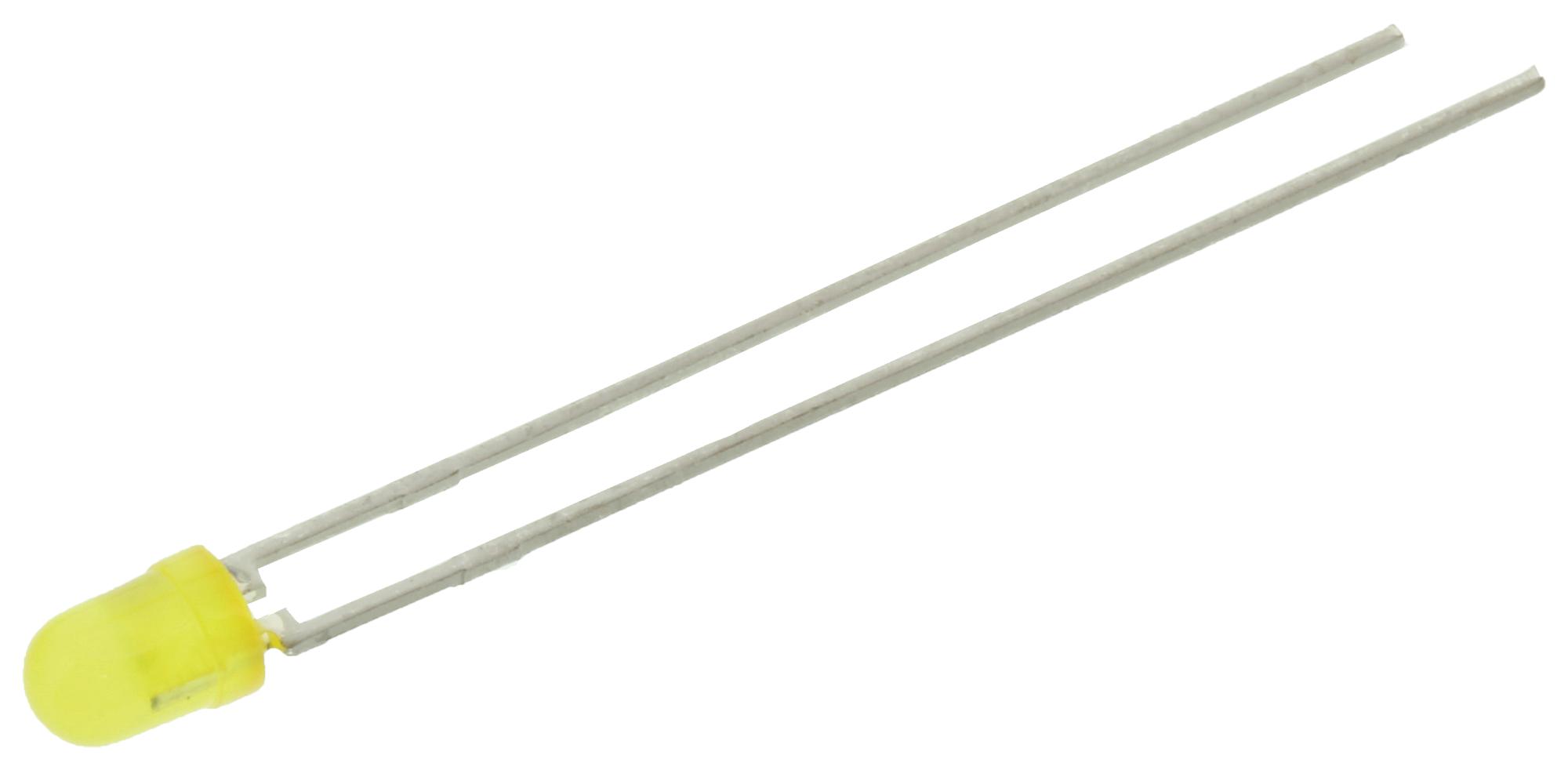

DIALIGHT 5219211F discrete LED
This 3mm yellow discrete LED features a high-efficiency diffused lens, ideal for LED lighting and industrial applications. Operating within -55°C to 100°C, it provides reliable luminous intensity, with a maximum power dissipation of 60 mW and forward current up to 20 mA. The LED has a viewing angle of 60°, typical forward voltage of 2.1V, and peak wavelength of 585 nm. Designed for robustness, it ensures consistent performance in various demanding environments, suitable for indicator and display systems across multiple industries.
DIALIGHT 5219211F discrete LED Specifications:
- Power Dissipation: 60 mW
- Forward Current: 20 mA
- Operating Temperature: -55°C to 100°C
- Storage Temperature: -55°C to 100°C
- Soldering Temperature: 260°C for 5 seconds
- Solder Adherence: MIL-STD-202E, Method 208C
- Luminous Intensity: Min. 74 mcd at 20mA
- Peak Wavelength: 585 nm
- Viewing Angle: 60°
- Forward Voltage: Typical 2.1V at 20mA, Max 2.8V
- Reverse Voltage: Max 5V
Buy the Dialight 5219211 F – Reliable Yellow LED for Industrial Applications
Purchase the Dialight 5219211 F yellow 3mm diffused LED online today and enjoy a reliable, high-efficiency component designed for industrial and lighting applications. With a wide operating temperature range from -55°C to 100°C, it ensures consistent performance in demanding environments. The LED offers a luminous intensity of at least 74 mcd, peak wavelength of 585 nm, and a 60° viewing angle. Easy to install and solder, it is ideal for indicator lights, displays, and various electronic projects requiring durable, high-quality illumination. Order now for quick delivery and excellent performance.
Get Dialight 5219211 F today—built for precision and long-lasting durability in industrial lighting and display solutions.
Frequently Asked Questions
Where can I buy DIALIGHT 5219211F?
You can click on the BUY or RFQ button to purchase 5219211F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 5219211F?
You can download the 5219211F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 5219211F?
DIALIGHT
