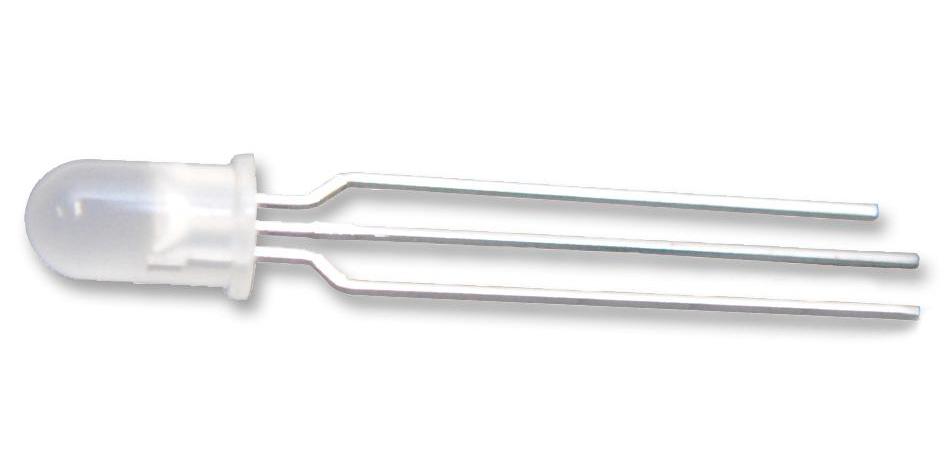

DIALIGHT 5219450F Bi-Color LED Lamp
The 521-9450F is a 5mm bi-color LED lamp featuring red and green colors with peak wavelengths of 635nm and 565nm. It has a 5mm diffused lens, providing clear, uniform illumination ideal for indicator panels and lighting applications. Operating within a temperature range of -20°C to 85°C, it ensures reliable performance in various environments. This LED offers a maximum forward current of 135mA, a peak luminous intensity of 65, with voltage ratings around 2.1V (Red) and 4.2V (Green). Suitable for industrial, control, and status indicator functions.
DIALIGHT 5219450F Bi-Color LED Lamp Specifications:
- Wavelength: 635nm (Red), 565nm (Green)
- Lens: Diffused
- Size: 5mm
- Operating Temperature Range: -20°C to 85°C
- Storage Temperature Range: -55°C to 85°C
- Power Dissipation: Max. 135mW
- Average Forward Current: 25mA
- Peak Forward Current: 90mA
- Voltage: 2.1V (Red), 4.2V (Green)
- Viewing Angle: 65°
- Soldering Temperature: 260°C for 5 seconds, 1.6mm from case
Buy the Dialight 5219450F – Reliable Bi-Color LED for Industrial Applications
Purchase the Dialight 5219450F bi-color LED lamp online today to ensure high-quality indicator solutions. With bright red and green illumination, this 5mm diffused LED is perfect for industrial lighting, control panels, and status indicators. Operating reliably within -20°C to 85°C, it delivers consistent performance under demanding conditions. Designed with a diffused lens for even light distribution and easy soldering at 260°C, it offers excellent value for automation and control systems. Order now for quick delivery and industrial-grade quality.
Buy Dialight 5219450F now and experience unmatched reliability and bright bi-color illumination for your industrial control and indicator needs.
Frequently Asked Questions
Where can I buy DIALIGHT 5219450F?
You can click on the BUY or RFQ button to purchase 5219450F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 5219450F?
You can download the 5219450F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 5219450F?
DIALIGHT
