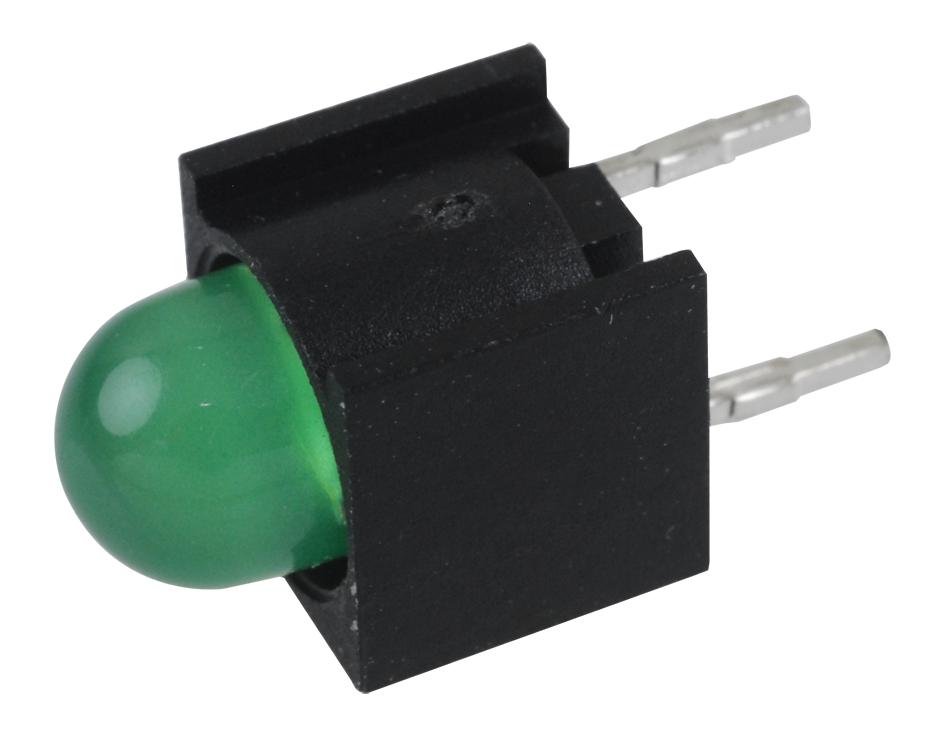

DIALIGHT 5500204F LED Indicator
The 550-0204F is a 5mm LED circuit board indicator featuring a diffused lens for high visibility and a black, flame-rated housing made of PBT polymer. It offers top viewing angles and a single-color illumination, with LEDs that are safe for direct viewing according to IEC 825-1 and EN-60825-1 standards. Multiple CBIs can be arranged horizontally on 6.35mm centers, and the device is compatible with the 550-XX04-004 quad block. The LED has standard efficiency, cathode right polarity, and the housing includes standoffs to facilitate PCB cleaning. It meets solderability standards per MIL-STD-202F, method 208F, making it suitable for signaling applications.
DIALIGHT 5500204F LED Indicator Specifications:
- Lens Type: Diffused
- Housing Material: PBT polymer, UL 94 V-0 rated
- Housing Color: Black
- Housing Standoffs: Facilitate PCB cleaning
- LED Compatibility: 550-XX04-004 quad block
- Viewing Angle: Top view, single orientation
- Polarity: Cathode on the same side as notch
- Solderability: Meets MIL-STD-202F, method 208F
- Maximum Operating Temperature: -40°C to +85°C
- Soldering Temperature: 260°C for 5 seconds
- Mounting: Suitable for PCB installation
- Standards: IEC 825-1, EN-60825-1 for safe viewing
- Size: 5mm diameter LED
- Diffused lens for high contrast visibility
- Part Number: 550-0204F
Buy the Dialight 550-0204F – Reliable Signaling LED for Industrial Applications
Order the Dialight 550-0204F LED indicator online today and experience high visibility and reliable signaling in your industrial equipment. Designed with a diffused lens for optimal visibility, flame-rated PBT housing, and compatibility with quad blocks, this 5mm LED ensures durability and safety standards compliance. Featuring easy PCB mounting with stand-offs for thorough cleaning, it is perfect for signaling and indicator applications. Make your purchase now to enhance your industrial signage system with a dependable LED indicator that combines quality, safety, and ease of installation.
Get Dialight 550-0204F today—built for precision, visibility, and long-lasting durability in industrial signaling solutions.
