DIALIGHT 5502204F 5mm LED
This high-efficiency 5mm LED features a diffused lens with a luminous intensity of at least 24 mcd, operating at 24 mA. Designed for panel indicator applications, it offers a wavelength of 650 nm for red, with a viewing angle of 50°, and is compatible with various circuit configurations including integral resistors and bi-color options. It has a maximum forward voltage of 2.2 V, operates within -55°C to +100°C, and ensures reliable performance with solderability adhering to MIL-STD-202E standards. The LED is housed in a durable black polycarbonate housing with stand-offs to facilitate PCB cleaning and mounting.
DIALIGHT 5502204F 5mm LED Specifications:
- Wavelength: 650 nm for red, 585 nm for yellow, 565 nm for green
- Forward Voltage: 2.2 V typical, 2.8 V max at 20 mA
- Luminous Intensity: 24 mcd (red), 34 mcd (super bright versions), 80-125 med candelas
- Viewing Angles: 24° to 60°, depending on version
- Operating Temperature: -55°C to +100°C
- Storage Temperature: -55°C to +100°C
- Power Dissipation: 60 to 135 mW, depending on type
- Soldering Temperature: 260°C for 5 seconds
- Mounting Clip: 515-0004, 515-0005 for bi-color
- Housing Material: Black UL 94V-0 rated polymer
- Reverse Voltage: 5 V, IR=100 μA
- Peak Wavelength: Corresponding to color
- Solder adherence per MIL-STD-202E

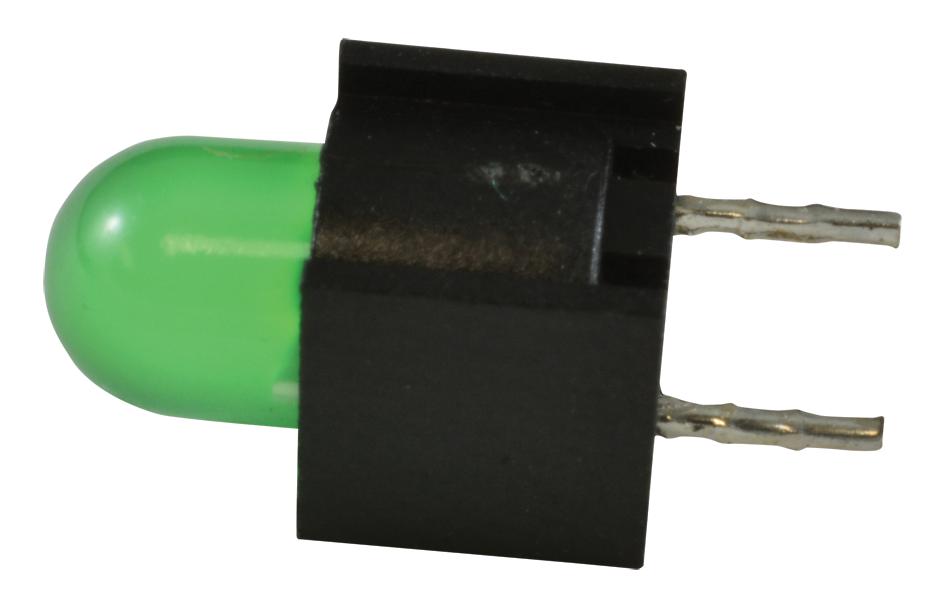

Buy the Buy Dialight LED Part Number 5502204 Online
Purchase the Dialight 5502204 LED online today to secure a high-quality, reliable indicator light featuring high efficiency and diffused lens. This 5mm LED operates at 24 mA, offers a luminous intensity of 24 mcd, and is designed for panel indicators, fault indicators, and status lights. It includes durable housing, adheres to military soldering standards, and covers operating temperatures from -55°C to +100°C. Secure your supply of dependable indicator LEDs with a quick online order for industrial and electronic projects.
Order your Dialight Series5502204 LED today and enhance your indicator panels with reliable, high-brightness illumination for industrial applications.
Frequently Asked Questions
Where can I buy DIALIGHT 5502204F?
You can click on the BUY or RFQ button to purchase 5502204F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 5502204F?
You can download the 5502204F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 5502204F?
DIALIGHT
