DIALIGHT 5502407F 5mm LED Indicator
The 550-2407F is a 5mm LED circuit board indicator featuring right-angle viewing and a diffused lens, designed for LED arrays with 6.35mm spacing. It offers high contrast, safe direct viewing in accordance with IEC 825-1 standards, and is housed in a flame-rated UL94V-0 black PBT polymer casing with stand-offs for easy PCB cleaning. Suitable for signaling and indicator applications, the device has cathode right polarity and complies with MIL-STD-202F, method 208F solderability. Ideal for electronic displays and signaling in industrial and commercial environments.
DIALIGHT 5502407F 5mm LED Indicator Specifications:
- Lens Type: Diffused
- Size: 5mm
- Housing Material: PBT polymer, UL 94V-0 rated
- Housing Color: Black
- Polarity: Cathode right
- Stand-offs: Facilitates PCB cleaning
- Solderability: MIL-STD-202F, method 208F compliant
- Operating Temperature: -55°C to +100°C
- Storage Temperature: -55°C to +100°C
- Max Power Dissipation: 75 mW
- Forward Voltage: 2.2V at 20mA
- Peak Wavelength: 650 nm (Red)
- Viewing Angle: 50°
- Current Rating: 20mA
- Compliance: IEC 825-1, EN-60825-1 safe for direct viewing

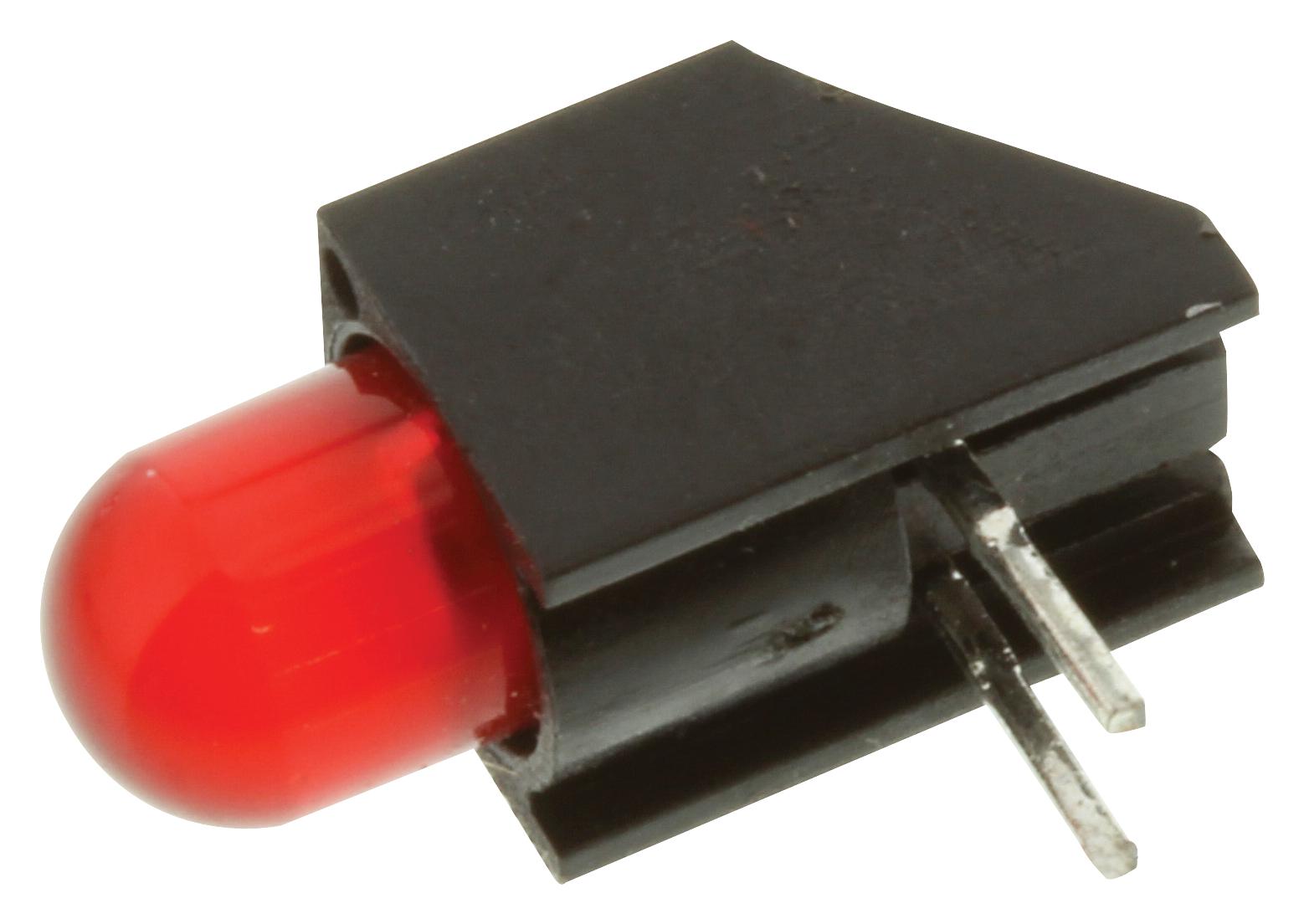

Buy the Buy Dialight 5mm LED Circuit Board Indicator Part Number 5502407F Online
Order the Dialight 5mm LED Circuit Board Indicator 550-2407F online today for superior signal clarity and reliability. This diffused LED with right-angle viewing suits a wide range of industrial and electronic display applications, featuring UL94V-0 rated flame-retardant housing, easy PCB mounting with stand-offs, and compliant with MIL-STD-202F soldering standards. Its high efficiency, safe direct viewing design, and robust operation from -55°C to +100°C make it an ideal choice for demanding environments. Enhance your electronic signaling systems with this durable and high-contrast LED indicator available now for fast delivery and competitive prices.
Get Dialight 550-2407F today—built for high contrast, reliable signaling, and long-lasting durability in electronic applications.
Frequently Asked Questions
Where can I buy DIALIGHT 5502407F?
You can click on the BUY or RFQ button to purchase 5502407F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 5502407F?
You can download the 5502407F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 5502407F?
DIALIGHT
