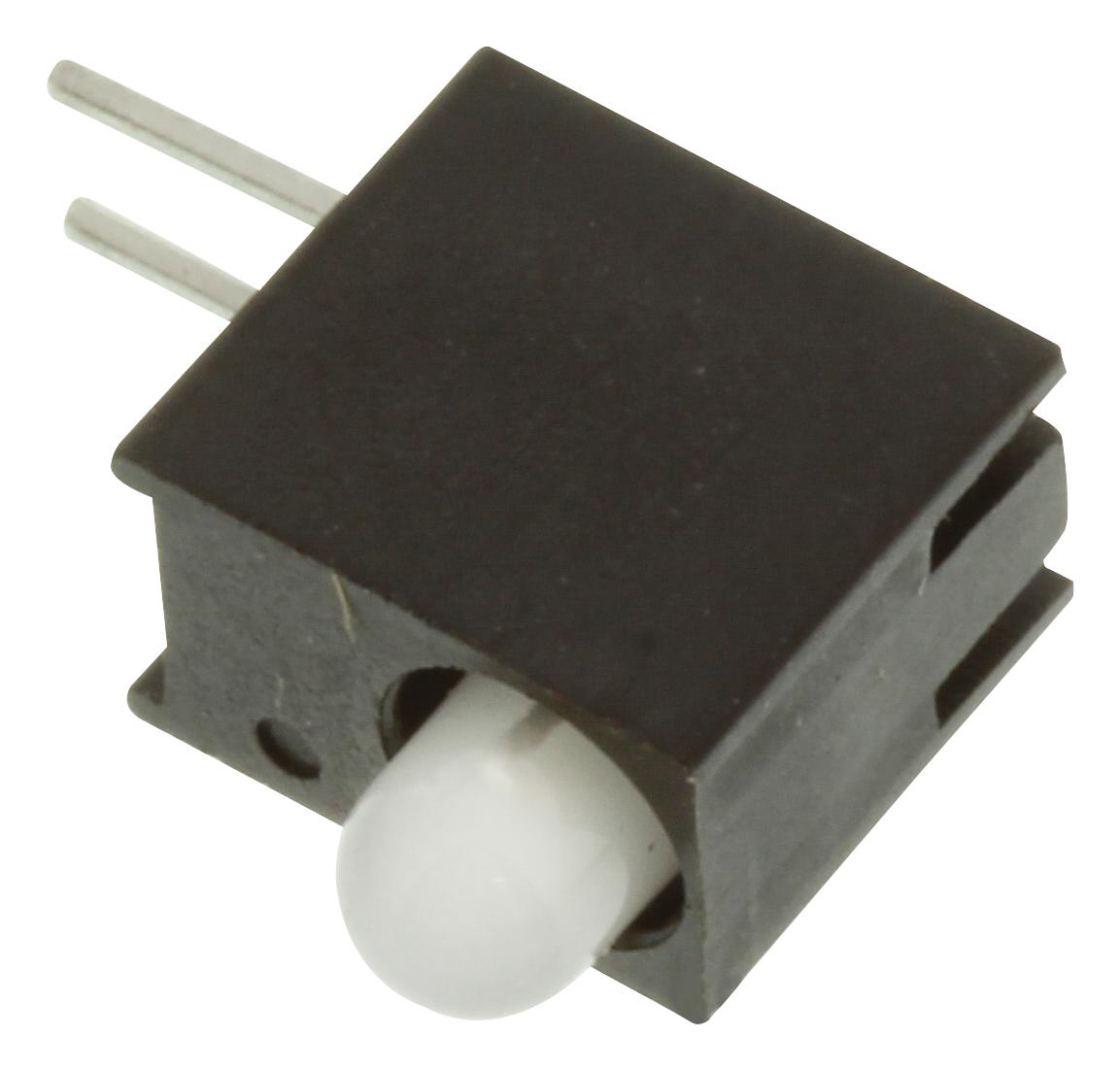

DIALIGHT 5513007F 3mm LED Circuit Board Indicator
The DIALIGHT 551-3007F is a 3mm CBI (Circular Board Indicator) LED designed for use in circuit board applications. It features a high-contrast, UL 94 V-0 rated black housing, facilitating easy visual indication. The component is suitable for forming horizontal LED arrays with a 4.45mm (0.175”) centerline spacing. Housing stand-offs are included to aid in PCB cleaning. It is compatible with the 551-xx07-004 QuadBlock. Reverse polarity options are available by adding '-010' to the part number.
DIALIGHT 5513007F 3mm LED Circuit Board Indicator Specifications:
- color: Red/Green
- high_efficiency: Yes
- housing_material: PBT
- polymer_content: 0.188 g
- led_protrusion_tolerance: ±0.04 mm [±0.016]
- cbi_housing_tolerance: ±0.02mm[±0.008]
- mounting_clip: 515-0006
- operating_temperature: -40/+100 °C
- storage_temperature: -40/+100 °C
- forward_voltage: 2.1 V
- peak_wavelength: 635/565 nm
- luminous_intensity: 4.7/10 mcd
- viewing_angle: 50°
Buy the 551-3007F DIALIGHT 3mm LED Circuit Board Indicator | myMectronic
Purchase the DIALIGHT 551-3007F securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 5513007F?
You can click on the BUY or RFQ button to purchase 5513007F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 5513007F?
You can download the 5513007F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 5513007F?
DIALIGHT
