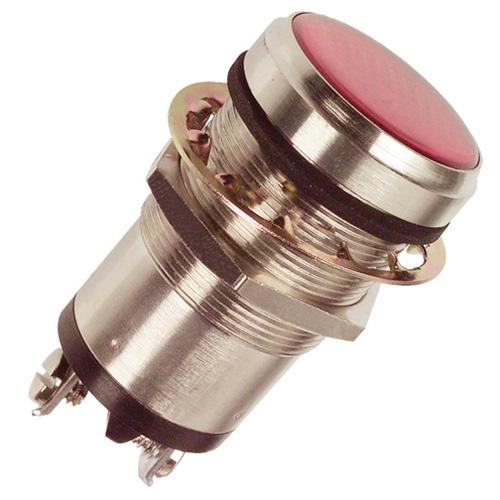

DIALIGHT 5561504304F High Intensity LED Indicator
The 556-1504-304F is a high-intensity, panel-mount red LED indicator designed for 1-inch mounting holes. It features a watertight seal meeting NEMA 4X and IP66 standards, making it suitable for outdoor applications exposed to rain, dust, and sunlight. Incorporating InGaN and AlInGaP technologies, it delivers brighter, uniform illumination with multi-LED construction and a flat polycarbonate lens. Its nickel-plated brass housing is durable, tamperproof, and UL94V-0 rated. Ideal for LED lighting, safety, instrumentation, automotive, and aerospace uses, ensuring reliability in harsh environments.
DIALIGHT 5561504304F High Intensity LED Indicator Specifications:
- Color options: Red, Yellow, Green, Blue, White, Cyan, Orange
- Voltage range: 12 VDC to 230 VAC
- Current: 60-95 mA depending on model
- Luminance: 3000 to 4000 MCD depending on model
- Housing material: Nickel-plated brass
- Lens material: Polycarbonate, flat or domed
- Mounting hole size: 1 inch (25.4 mm)
- Waterproof rating: NEMA 4X, IP66
- Operating temperature: -30°C to +85°C
- UL Recognition: File #E156890
- Flammability rating: UL94V-0
- Maximum mounting torque: 40 in./lb.
- Dimensions: Max panel thickness 0.187 inches, overall length varies by model
- Designed for outdoor, safety, industrial, and instrumentation applications
Buy the Dialight Series WA High Intensity LED Panel Mount Indicators: 5561504304F
Discover the durable and highly visible Dialight Series WA high-intensity LED indicator, designed for outdoor safety, industrial, and instrumentation use. With waterproof NEMA 4X and IP66 ratings, it withstands rain, dust, and sunlight exposure. Its multi-LED technology ensures uniform brightness, and its robust nickel-plated brass housing guarantees long-lasting durability. Suitable for 1-inch mounting holes, it integrates seamlessly into control panels, automotive, and aerospace systems. Purchase online today to enhance your safety and signaling solutions with dependable LED indicators.
Get Dialight 5561504304F today—built for precision, durability, and outdoor safety applications.
