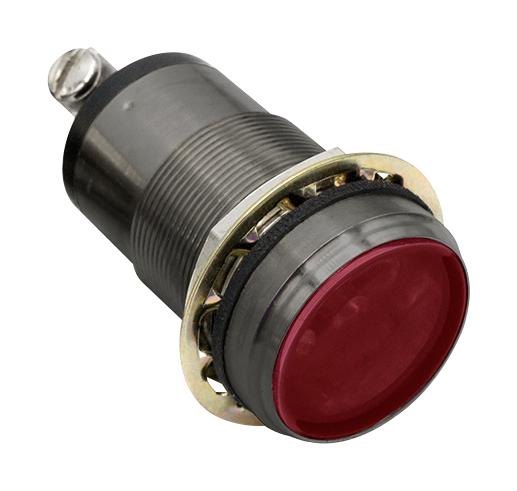

DIALIGHT 556150A214F Daylight Viewable Indicator
The 556 Series daylight viewable panel mount indicators are designed for outdoor applications, offering high durability and maximum brightness with InGaN and AllnGaP technologies. Suitable for instrument panels, safety, environmental monitoring, and transportation, these indicators withstand rain, dust, and sunlight. Operating from 18-48 V DC with internal resistors, they feature IP66 and NEMA 4X ratings for water and dust resistance. Made with UV-stabilized polycarbonate lenses and brass housings, they provide reliable, clear indication in harsh environments with a lifespan suitable for industrial and outdoor use. Easy mounting with 0.600-inch hole, suitable for various industrial controls and safety applications.
DIALIGHT 556150A214F Daylight Viewable Indicator Specifications:
- Mounting Hole Size: 0.600 inches (15.24 mm)
- Max Panel Thickness: Not specified
- Mounting Torque: 40 in-lbs
- Voltage Options: 18-48 V DC, internal resistor included
- Operating Temp: -30°C to +85°C (-22°F to +185°F)
- Storage Temp: -40°C to +100°C (-40°F to +212°F)
- Electrical Connection: 6-32 screw terminals
- Housing: Brass—White or Black Nickel Plated
- Terminals: Brass—Hot solder dip per Mil-F-14072D, M258, Type II
- Lens Material: Clear UV Stabilized Polycarbonate (UL 94V-0)
- Lock Washer: Phosphor Bronze—White or Black Nickel Plated
- Nut: Brass—White or Black Nickel Plated
- Certifications: IP66, NEMA 4X, RoHS Compliant with 6C exemption
Buy the Dialight Series 556 Daylight Viewable Panel Mount: 556150A214F
Order the Dialight 556150A214F daylight viewable panel mount indicator online today for reliable, high-brightness performance in outdoor and industrial settings. Designed to withstand rain, dust, and sunlight with IP66 and NEMA 4X ratings, this indicator is perfect for safety, environmental, and control applications. Featuring 18-48 V DC operation with internal resistors, durable UV-stabilized polycarbonate lenses, and corrosion-resistant brass housings, it offers long-lasting performance and clear visibility in harsh environments. Purchase now for outstanding outdoor indicator solutions.
Get Dialight 556150A214F today—built for outdoor durability and maximum brightness in harsh environments.
Frequently Asked Questions
Where can I buy DIALIGHT 556150A214F?
You can click on the BUY or RFQ button to purchase 556150A214F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 556150A214F?
You can download the 556150A214F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 556150A214F?
DIALIGHT
