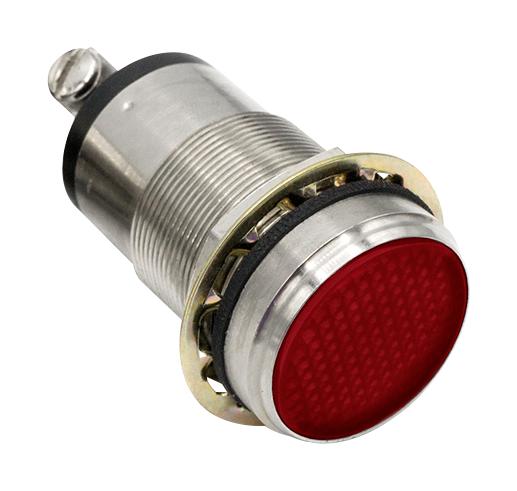

DIALIGHT 556150A304F LED Indicator
The 556 Series LED Panel Mount Indicators by Dialight are highly durable, providing maximum light output with InGaN and AllnGaP technologies. Suitable for outdoor applications, these indicators resist rain, dust, and sunlight. They feature a compact design with a mounting hole size of 1.0 inch, and operate within 18-48 V DC, including an internal resistor. Made of brass with optional nickel plating, their transparent polycarbonate lens ensures clear visibility. Rated IP66 and NEMA 4X, they are ideal for instrument panels, safety, transportation, vending, and display lighting, offering reliable performance in harsh conditions.
DIALIGHT 556150A304F LED Indicator Specifications:
- Voltage Options: 18-48VDC, with internal resistor included
- Operating Temp: -30°C to +85°C (-22°F to +185°F)
- Storage Temp: -40°C to +100°C (-40°F to +212°F)
- Housing: Brass with optional White or Black Nickel Plating
- Lens Material: Transparent Polycarbonate (UL 94-0)
- Mounting Hole Size: 1.0 inch (25.4 mm)
- Max Panel Thickness: Flat: 0.600 inch (15.24 mm), Dome: 0.187 inch (4.27 mm)
- Electrical Connection: 6-32 screw terminals
- Ingress Protection: IP66
- Certifications: NEMA 4X, RoHS Compliant
- Max Mounting Torque: 40 in-lb
- Temperature Rating: -30°C to +85°C
Buy the Dialight 556150A304F – Reliable LED Indicator for Industrial Applications
Purchase the Dialight LED Indicator online today and experience reliable performance for industrial safety, transportation, and display lighting. Designed for harsh environments, it operates at 18-48 V DC with IP66 rated protection. Featuring a durable brass housing, transparent polycarbonate lens, and easy screw terminal connection, this indicator ensures visibility and durability. Perfect for instrument panels, safety applications, lane control, and vending displays, it combines high brightness, robust construction, and quick mounting—ideal for demanding industrial and outdoor environments. Order now for fast delivery and consistent quality.
Get Dialight 556150A304F today—built for precision and long-lasting durability in industrial safety and control systems.
Frequently Asked Questions
Where can I buy DIALIGHT 556150A304F?
You can click on the BUY or RFQ button to purchase 556150A304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 556150A304F?
You can download the 556150A304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 556150A304F?
DIALIGHT
