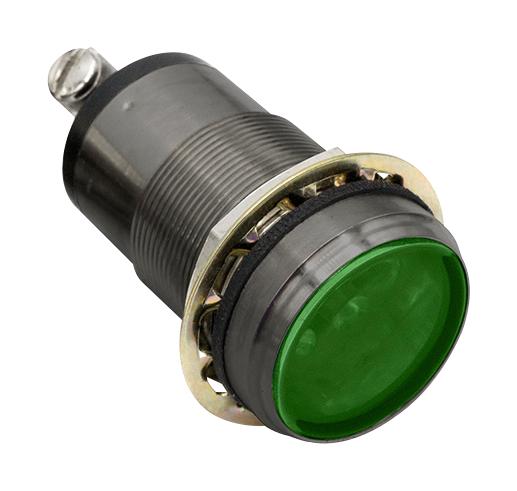

DIALIGHT 556160A214F Daylight Viewable LED Indicator
The 556 Series daylight viewable panel mount indicators are durable, high-brightness LED lights suitable for outdoor and rugged environments. They feature constant intensity and operate on 18-48 V DC, with integrated resistors. Built with UV stabilized polycarbonate lenses and brass housings with nickel plating, these indicators are IP66 and NEMA 4X rated, making them suitable for applications including instrument panels, safety signage, power generators, and transportation controls. Their compact design, mounting hole size of 1.0 inch, and wide temperature range ensure reliable performance in demanding conditions.
DIALIGHT 556160A214F Daylight Viewable LED Indicator Specifications:
- Voltage Options: 18-48 VDC (internal resistor included)
- Operating Temp: -30°C to +85°C (-22°F to +185°F)
- Storage Temp: -40°C to +100°C (-40°F to +212°F)
- Mounting Hole Size: 1.0 inch (25.4 mm)
- Max Panel Thickness: 0.600 inch (15.24 mm)
- Mounting Torque: 40 in-lbs
- Housing Material: Brass—White or Black Nickel Plated
- Lens Material: Clear UV Stabilized Polycarbonate (UL 94V-0)
- Terminals: 6-32 screw terminals
- Certifications & Ratings: IP66, NEMA 4X, RoHS Compliant
- Display Technology: InGaN and AllnGaP LEDs for maximum brightness
- Dimensions: Diameter 1.915 inches (48.64 mm), mounting hole 1.0 inch (25.4 mm)
Buy the Dialight Series 556 Daylight Viewable Panel Mount Indicators: 556160A214F
Purchase the Dialight 556 Series daylight viewable LED indicator online today and experience reliable, high-brightness illumination for outdoor and industrial applications. Designed with UV stabilized polycarbonate and brass housing, this indicator provides excellent durability, IP66 and NEMA 4X ratings, and operation on 18-48 V DC power. Its compact size and wide temperature range make it ideal for instrument panels, safety indicators, power control, and transportation systems, ensuring visibility and dependability in harsh conditions.
Get Dialight 556160A214F today—built for outdoor durability and high visibility in demanding environments.
Frequently Asked Questions
Where can I buy DIALIGHT 556160A214F?
You can click on the BUY or RFQ button to purchase 556160A214F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 556160A214F?
You can download the 556160A214F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 556160A214F?
DIALIGHT
