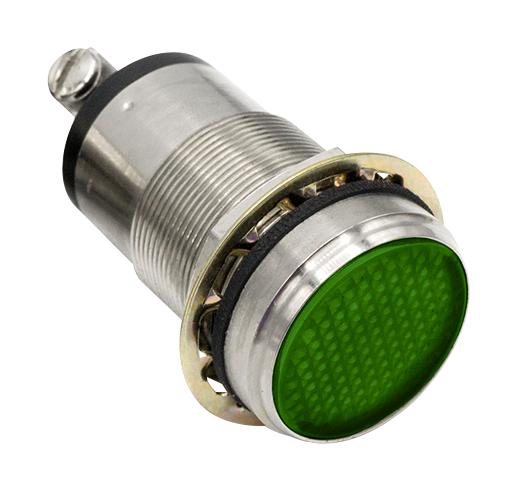

DIALIGHT 556160A304F LED Indicator
The Dialight 556 Series LED Panel Mount Indicators feature high durability and maximum light output, suitable for outdoor environments with rain, dust, and sunlight. Designed with both InGaN and AllnGaP technologies, these indicators operate at 18-48 V DC with internal resistors included. They are ideal for safety, transportation, lane control, and display lighting applications. The indicators are housed in brass with a transparent polycarbonate lens, IP66 and NEMA 4X rated, ensuring reliable performance in harsh conditions, with operating temperatures from -30°C to +85°C and robust electrical connections.
DIALIGHT 556160A304F LED Indicator Specifications:
- Voltage Options: 18-48VDC (internal resistor included)
- Operating Temp: -30°C to +85°C (-22°F to +185°F)
- Storage Temp: -40°C to +100°C (-40°F to +212°F)
- Mechanical Mounting Hole Size: 1.0 inch (25.4mm)
- Max Panel Thickness: Flat: 0.600 inch (15.24 mm), Dome: 0.187 inch (4.27 mm)
- Housing: Brass — White or Black Nickel Plated
- Lens Material: Transparent Polycarbonate (UL 94-0)
- Electrical Connection: 6-32 screw terminals
- Ingress Protection: IP66, NEMA 4X
- Mounting Torque: 40 in-lbs
- Certifications & Ratings: RoHS Compliant, IKO7
Buy the Dialight 556160A304F – Reliable Indicator for Industrial Applications
Order the Dialight 556160A304F LED Indicator online today and benefit from a highly durable, IP66-rated signal indicator designed for outdoor and industrial environments. This robust brass housing with a transparent polycarbonate lens ensures maximum visibility and reliability. Suitable for safety applications, transportation, lane control, and display lighting, it operates efficiently from 18 to 48 V DC with internal resistors. Invest in high-performance indicators that withstand rain, dust, and sunlight, offering long-lasting performance across a wide temperature range, making your installation safer and more efficient.
Buy Dialight 556160A304F now and experience unmatched durability, excellent visibility, and reliable performance in harsh outdoor conditions.
Frequently Asked Questions
Where can I buy DIALIGHT 556160A304F?
You can click on the BUY or RFQ button to purchase 556160A304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 556160A304F?
You can download the 556160A304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 556160A304F?
DIALIGHT
