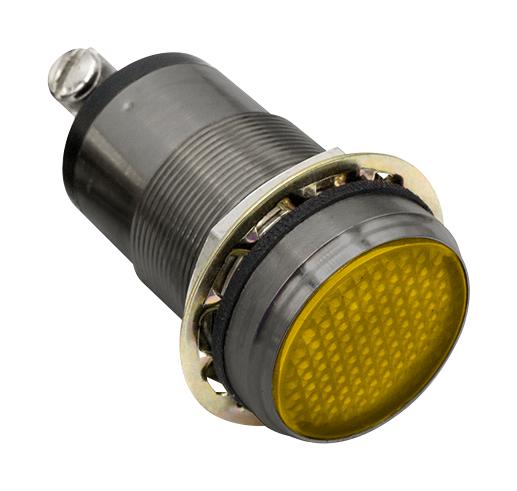

DIALIGHT 556170A204F LED Panel Indicator
The 556 Series LED Panel Mount Indicators are designed for durable, outdoor applications, featuring constant intensity LED technology with IP66 and NEMA 4X ratings. They operate on 18-48 V DC, include internal resistors, and are suitable for instrument panels, safety, transportation, vending, and lane control. Made with brass housing and transparent polycarbonate lenses, they withstand temperatures from -30°C to +85°C. Easy to mount with 1.0-inch holes, they offer excellent brightness, long-term durability, and corrosion resistance for harsh environments.
DIALIGHT 556170A204F LED Panel Indicator Specifications:
- Voltage Options: 18-48 VDC, internal resistor included
- Operating Temperature: -30°C to +85°C
- Storage Temperature: -40°C to +100°C
- Housing Material: Brass, nickel-plated (white or black)
- Lens Material: Transparent polycarbonate (UL 94-0)
- Mounting Hole Size: 1.0 inch (25.4 mm)
- Max Panel Thickness: Flat: 0.600 inch (15.24 mm), Dome: 0.187 inch (4.27 mm)
- Mounting Torque: 40 in-lbs
- Electrical Connection: 6-32 screw terminals
- Ingress Protection: IP66, NEMA 4X
- Certifications: RoHS Compliant, IK07
- Dimensions: Mounting hole diameter 1.0 inch, overall length varies, detailed in product datasheet
Buy the Dialight 556170A204F – Reliable Indicator for Industrial Applications
Purchase the Dialight LED Panel Indicator online today—engineered for demanding industrial and outdoor environments. Operating on 18-48 V DC with internal resistors, it features high brightness, corrosion-resistant brass housing, and a transparent polycarbonate lens. Its IP66 and NEMA 4X ratings ensure protection against dust and water, making it ideal for safety, transportation, and control applications. Easy mounting with a 1.0-inch hole, this indicator offers reliable performance, long lifespan, and excellent durability for your industrial needs.
Get Dialight 556170A204F today—built for precision and long-lasting durability in harsh environments.
Frequently Asked Questions
Where can I buy DIALIGHT 556170A204F?
You can click on the BUY or RFQ button to purchase 556170A204F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 556170A204F?
You can download the 556170A204F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 556170A204F?
DIALIGHT
